Product Specifications
| Prod Model: |
BJHCS-PS3.3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Hall Sensor |
| Theory: |
Hall Sensor |
| Material: |
Mixture |
Product Description

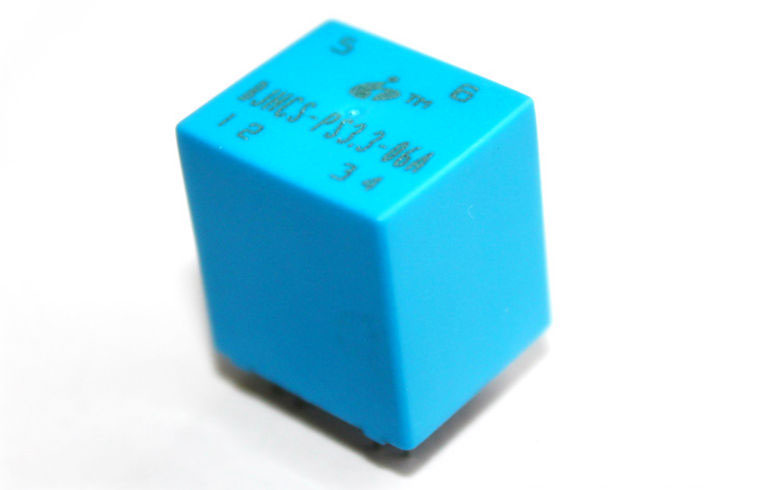

BJHCS-PS3.3 closed-loop series of double-loop Hall Current Sensor
BJHCS-PS3.3 bicyclic series of Hall current sensor is the principle of Hall effect current sensor development can be measured in isolation under the conditions of DC, AC, and various irregular pulse current waveform.
|
Product Characteristics |
Applications |
|
· High accuracy · Very good linearity · Small PCB mounting · Low power consumption · Good over-current capability |
· Frequency drive control home appliances · Solar power management system · Inverter Applications · UPS uninterruptible power supply · Current monitoring |
ELECTRICAL CHARACTERISTIC
|
BJHCS-PS3.3 |
-05A |
-06A |
-10A |
-15A |
-25A |
|
Nominal r.m.s current IPN(mA) |
05 |
06 |
10 |
15 |
25 |
|
Measuring range IP(mA) |
12 |
15 |
24 |
35 |
50 |
|
Input pin (mm) |
ø 1.0 |
ø 1.0 |
ø 1.0 |
ø 1.0 |
ø 1.4 |
|
Coil turns ratio (T) |
2:1600 |
2:1920 |
1:1600 |
1:1200 |
1:1000 |
|
Sampling resistor RM (Ω) |
100±0.1% |
100±0.1% |
100±0.1% |
50±0.1% |
25±0.1% |
|
Rated output voltage VO (V) |
0.625±0.5% |
|
Working power VC(V) |
+3.3VDC ±5% |
|
Insulation voltage (V) |
50Hz, 1min, 2.5kV |
|
Static current consumption Ic(mA) |
10 |
DYNAMIC CHARACTERISTICS
|
Zero offset voltage VoE @IP=0,T=25°C |
1.65±0.010 |
V |
|
Offset voltage drift VoE@-40°C--85°C |
≤±0.5 |
mV/°C |
|
Linearity error εr |
≤0.1 |
%FS |
|
Total accuracy |
±0.7 |
% |
|
Accurately followed di/dt |
>50 |
A/µs |
|
Response time tr |
≤500 |
ns |
|
Bandwidth (-1db) |
DC~200 |
KHZ |
GENERAL CHARACTERISTIC
|
Operating temperature |
-40 ~ +85 |
°C |
|
Storage temperature |
-40 ~ +125 |
°C |
|
Actual weight |
12 |
g |
OTHERS
|
Certification |
CE |
|
Quality System |
ISO9000 |
|
ISO14001 |
