Product Specifications
| Prod Model: |
BJHCS-SY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Hall Sensor |
| Theory: |
Hall Sensor |
| Material: |
Mixture |
Product Description

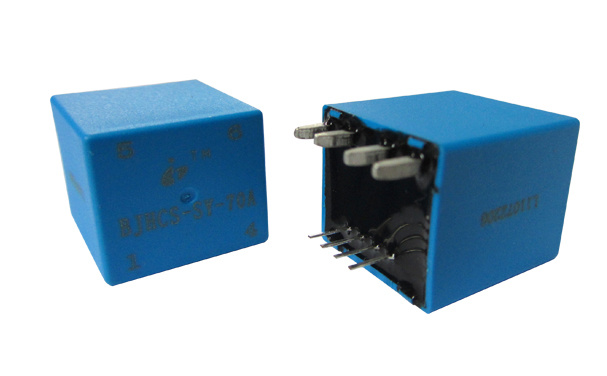

BJHCS-SY Series Hall Current Sensor is the application of principles of development of the current Hall effect sensor able to measure DC electrical isolation conditions, exchange, and various irregular pulse waveform of the current. Is a voltage output in the form of sensor.
|
Product Characteristics |
Applications |
|
High accuracy |
Switching Power Supply (SMPS) AC variable speed drive UPS uninterruptible power supply DC motor drive Electrical Applications Battery applications |
|
Very good linearity |
|
Small PCB mounting |
|
Low power consumption |
|
Good over-current capability |
ELECTRICAL CHARACTERISTIC
|
BJHCS-SY |
03A |
05A |
10A |
15A |
20A |
25A |
30A |
50A |
|
Nominal r. m. s current IPN(A) |
03 |
05 |
10 |
15 |
20 |
25 |
30 |
50 |
|
Measuring range IP(A) |
09 |
15 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Input pin (mm) |
ø 0.6 |
ø 0.8 |
ø 0.8 |
ø 1.0 |
ø 1.4 |
ø 1.4 |
ø 1.4 |
2× 1.6× 1.5 |
|
Coil turns ratio (T) |
6: 1800 |
4: 2000 |
3: 3000 |
2: 3000 |
1: 2000 |
1: 2500 |
1: 3000 |
1: 3125 |
|
Sampling resistor RM (Ω ) |
400± 0.1% |
400± 0.1% |
400± 0.1% |
400± 0.1% |
400± 0.1% |
400± 0.1% |
400± 0.1% |
250± 0.1% |
|
Rated output voltage VO (V) |
± 4.0± 0.5% |
|
Working power VC(V) |
± 15VDC ± 5% |
|
Insulation voltage (V) |
50Hz, 1min, 5kV |
|
Static current consumption Ic(mA) |
< 15 |
DYNAMIC CHARACTERISTICS
|
Zero offset voltage VoE@IP=0, T=25° C |
± 20 |
mV |
|
Offset voltage drift VoE@-40° C--85° C |
≤ ± 0.5 |
mA |
|
Linearity error ε r |
≤ 0.1 |
%FS |
|
Accurately followed di/dt |
> 50 |
A/µ s |
|
Response time tr |
≤ 1 |
µ s |
GENERAL CHARACTERISTIC
|
Operating temperature |
-40 ~ +85 |
° C |
|
Storage temperature |
-40 ~ +125 |
° C |
|
Actual weight |
12 |
g |
OTHERS
|
Certification |
CE |
|
Environmental protection system |
REACH |
|
Quality System |
ISO9000 |
|
ISO14001 |
