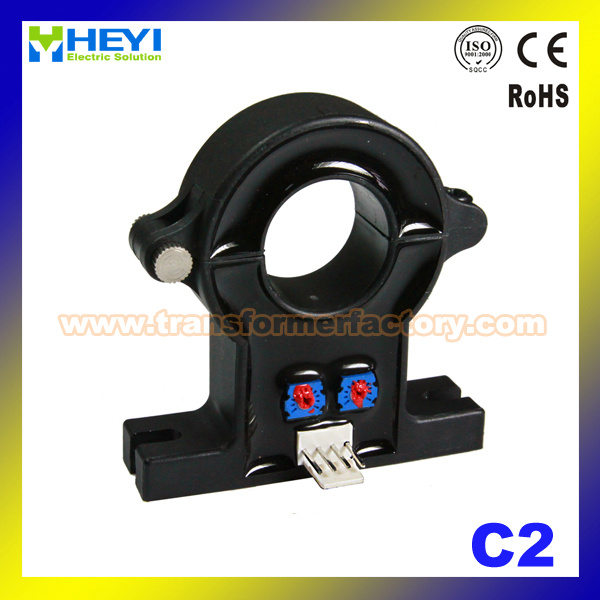

Hall Effect DC Current Sensor (C2) Clamp on Clamp on Hall Sensor
| Price: |
US $ 9.0-11.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
C2 series dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.| Electrical data (Ta=25ºC±5ºC,RL=2KΩ,CL=10000PF) |
| Type | C2-100A | C2-200A | C2-300A | C2-400A | C2-500A | Unit |
| Rated current(Ipn) | ±100 | ±200 | ±300 | ±400 | ±500 | A |
| Measure range(Ip) | 0-±200 | 0-±400 | 0-±600 | 0-±800 | 0-±1000 | A |
| Rated output | @Ip=±Ipn ±4±1% | V |
| Supply voltage | ±12,±15 | V |
| Power Consumption | <25 | mA |
| Offset voltage | @Ip=0 ±20 | mV |
| Magnetic offset | @Ip=±Ipn-0 ±20 | mV |
| Offset drift | @ -40~+85ºC ≤±1 | mV/ºC |
| Output drift | @ -40~+85ºC ≤±1 | mV/ºC |
| Linearity | @Ip=0-±Ipn ≤1 | %FS |
| Response time | @50A/μS, 10%-90% ≤5 | μs |
| Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV |
| Isolation resistance | @ DC 500V 1000 | MΩ |

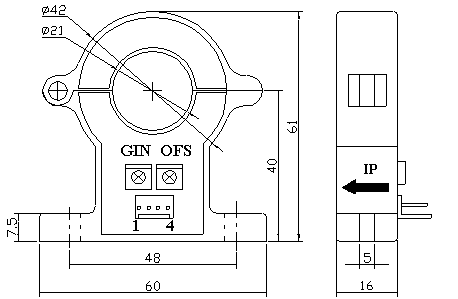

·Variable speed drives·Welding machine·Battery supplied applications·Uninterruptible Power Supplies (UPS)·Electrochemical| Mechanical dimension(for reference only) |
Remarks:1. All dimensions are in mm.2. General tolerance ±1mm.3. Elucidation: 1:+15V 2:-15V 3:V0UT 4:0V 1. When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)2. Custom design in the different rated input current and the output voltage are available.·UL94-V0.·EN60947-1:2004·IEC60950-1:2001·EN50178:1998·SJ 20790-2000
| Value | Unit |
| Operating temperature(TA) | -40 to +85 | ºC |
| Storage temperature(TS) | -40 to +125 | ºC |
| Mass(approx) (M) | 70 | g |

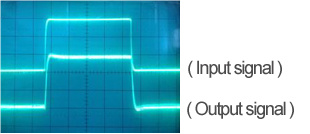

Pulse current signal response characteristic:

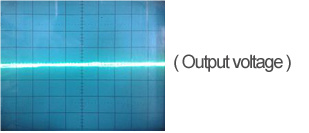

Effects of impulse noise:
| Prod Model: |
C2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Hall Sensor |
| Theory: |
Hall Sensor |
| Supply Voltage: |
+-12,+-15 |
| Power Consumption: |
<25 |
| Offset Voltage: |
@IP=0 +-20 |
| Galvanic Isolation: |
@ 50Hz,AC,1min 2.5 |
| Isolation Resistance: |
@ DC 500V 1000 |
| Material: |
Mixture |
