Ham Radiol FM Transceiver Lt-66 Two Way Radio
Product Specifications
| Prod Model: |
LT-66 two way radio |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
Professional Lt-66 Two Way Radio |
| LCD: |
Small LCD |
| Keypad: |
Three Keys |
| Battery: |
1600mAh Li-ion |
| Frequency Range: |
136~174MHz 400~470MHz 350-390MHz 450-520MHz |
| Channel: |
99 |
| Dimensions: |
119mm (H)*53mm (W) *32mm (D) |
| Power Output: |
5W |
| Certificate: |
CE |
| Scrambler: |
Support |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Usage: |
Home, Commercial, Marine |
| Battery Type: |
Li-ion Battery |
Product Description
Ham radio FM Transceiver Lt-66 Two Way RadioMain feature:Scrambler
Voice Compander
99 channels
Emergency Alarm Function
High/Low Power Switchable
Wide/Narrow Band Switchable
Auto Battery Save
VOX
Low Battery Alert
Busy Channel Lockout
Wired cloningTOT (Time-out timer)
PC ProgrammableMonitor
CTCSS-50/CDCSS-100
Ending sound silence
Squelch level 0-9 adjustable

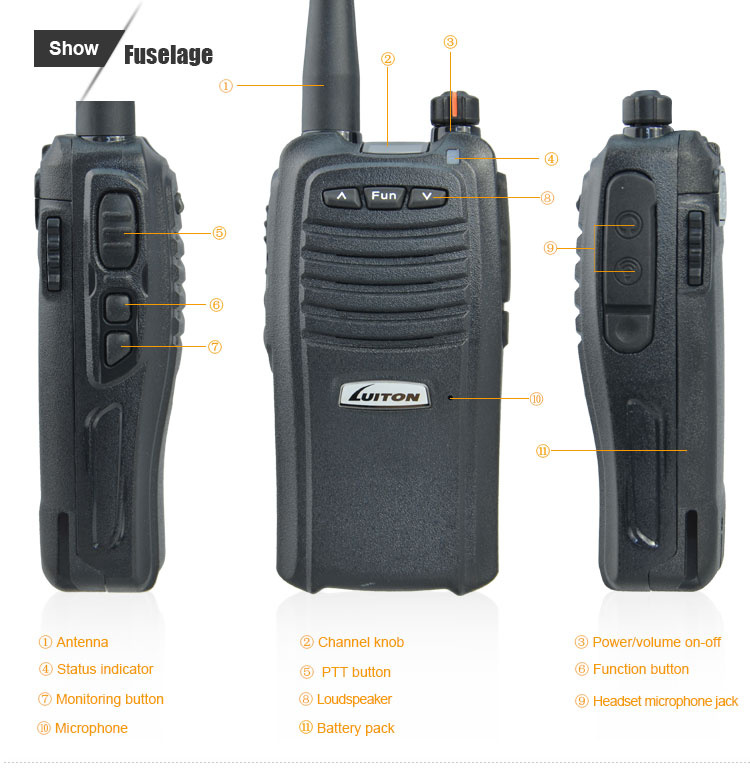

Channel ScanProduct photos:

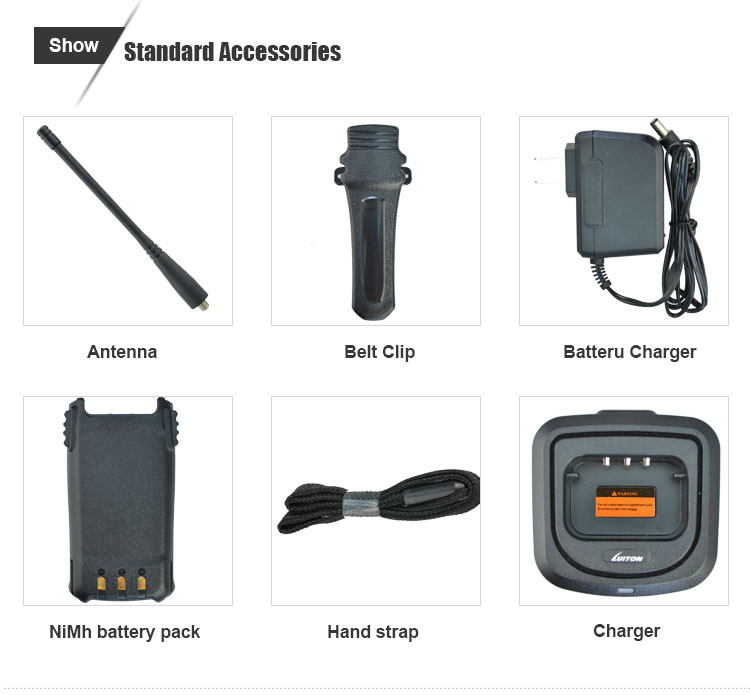

Packaging & Shipping· 1x walkie talkie· 1x Li-Ion battery · 1x Antenna· 1x Belt Clip· 1x User's Manual· 1X Power adapter Our ServicesCondition, Payment and Shipping: 1 We glad to ship to WorldWide.2 Please make payment by Paypal, Western union, bank wire transfer (T/T) after confirm the order.3 Transportation: DHL, FedEX, UPS, TNT or EMS, HongKong post airmail. By air & by sea.4 Item will be shipped out within 3-7 working days upon receipt of the payment. (Excluding Saturday, Sundays & China Holidays)5 Shipment may arrive within 3-16 days. Actual delivery days would be different for varies countries.6 We do single and combine shipment. Payment Policy:We could only accept payment by Western Union/TT/PayPal in this stage.Warranty Service:We 100% Guarantee your Satisfaction1 Please report us if there are any problem, we will solve it ASAP.2 This items comes with 1 YEAREquivalent replacements can be provided with shipment of your next order if the products are broken for inartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.3 Shipping and handling fees are not refundable for return or exchange items. Company InformationBond Telecom Co., Ltd. specializes in producing and marketing professional FM radios, with marine radio, CB radio, mobile radio, transciever, interphone, walkie talkie, 2 way radio, two way radio, portable radio etc. We have been in this field more than 9 years. Our main markets are South America, Asia and the Middle East. Our products have won a good reputation in those markets. We can supply OEM and ODM services. Please feel free to contact us for further information.
|
General |
|
Frequency Range |
136~174MHz 400~470MHz
350-390MHz 450-520MHz |
|
Channel No. |
99 |
|
Channel Spacing |
12.5/25 kHz |
|
Frequency Stabilization |
±2.5ppm |
|
Operating Temperature Range |
-20°C~+55°C |
|
Voltage |
7.5v |
|
Battery |
1600mAh Li-ion |
|
Dimensions(H*W*D) |
119mm (H)*53mm (W) *32mm (D) |
|
Weight(including antenna, battery) |
195g |
|
Antenna Impedance |
50Ω |
|
Transmitter |
|
RF Power Output |
≤5w |
|
Modulation Type |
F3E |
|
Clutter and Harmonic |
≤ -65dB |
|
Residual Radiation |
≤ -40dB |
|
Modulation Distortion |
≤5% |
|
Maximum Frequency Deviation |
±5kHz |
|
Receiver |
|
Sensitivity |
≤0.2µV |
|
Modulatioin Band |
±5kHz |
|
Adjacent Channel Selectivity |
≥70dB |
|
Intermodulation Immunity |
≥65dB |
|
Spurious Response Rejection |
≥70dB |
|
Rated Audio Output Power |
≥500mW |
|
Rated Audio Distortion |
≤5% |
