Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

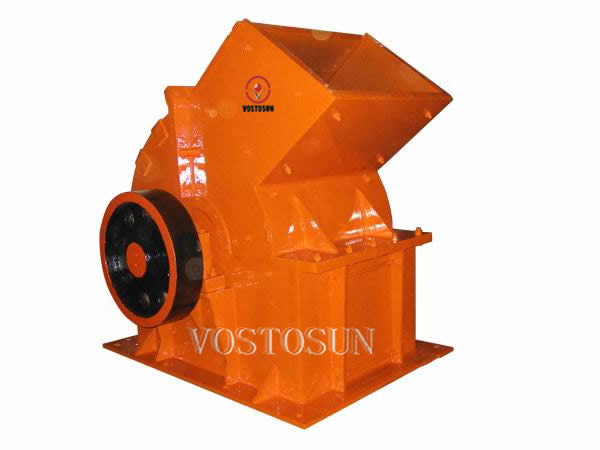

Hammer Crusher:
The hammer crusher (hammer mill) crushes through the collisions between high-speed hammer and materials. The hammer crusher (hammer mill) has good quality features like simple structure, high reduction ration, high efficiency, and etc. The PC hammer crusher (hammer mill) is suitable for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Operating principle of Hammer Crusher:
The motor drives the rotor rotated of the hammer crusher at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working chamber of hammers, they are crushed by the rotating hammers with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, while the large size products are brought back to the crushed area by the hammers for being recrushed until they reached the required size.
|
Name |
Max. feeding size
(mm) |
Output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight
(kg) |
Overall Dimension
(mm) |
|
PC400×300 |
≤100 |
≤10 |
5-10 |
11 |
800 |
812*982*785 |
|
PC600×400 |
≤120 |
≤15 |
40476 |
22 |
1500 |
1055*1022*1122 |
|
PC800×600 |
≤120 |
≤15 |
20-35 |
55 |
3100 |
1360*1330*1500 |
|
PC800×1000 |
≤200 |
≤13 |
20-40 |
115 |
7900 |
2565*1720*2035 |
|
PC1000×1000 |
≤200 |
≤15 |
30-80 |
132 |
8650 |
2760*1820*2350 |
|
PC1300×1200 |
≤250 |
≤19 |
80-200 |
240 |
13600 |
2960*2010*2600 |
AVP GROUP LIMITED was founded in 2005, and headquartered in Pudong District, Shanghai, China, with subsidiaries of Shanghai Vostosun Industrial Co., Ltd. (VOSTOSUN INDUSTRIAL), Shanghai Vostosun Imp & Exp Co., Ltd., AVP Russian Branch, AVP Kazakhstan Branch. AVP GROUP is an integrative production & marketing company, with license to import and export business. We are professional manufacturer of downhole drill, shotcreting robot, mineral production line, rill telescopic forklift and generator sets. We are also a professional procurement &supply chain service provider for construction machinery and mining equipments, experienced general contractor in product configuring, international comprehensive purchasing and after-sale service for construction projects, road surfacing projects and mining projects.
VOSTOSUN INDUSTRIAL, with experiences in R&D, manufacturing and oversea sales, has established its branches in Russia, Kazakhstan and UAE, where local mature sales team and after sale service system were set up with warehouse displaying various products and accessories. With experiences in professional oversea sales and services, a strategic investing alliance of high quality business partners, VOSTOSUN has successfully sold Chinese reputed construction machinery to around 30 countries and clients are distributed in the East Europe, Central Asia, Middle East, Africa, Southeast Asia and South America.
VOSTOSUN IMP & EXP, as a professional procurement &supply chain service provider for construction machinery and mining equipments, is dedicated to providing professional, efficient and custermized service, meeting demands of all kinds of construction projects over the world. We have been authorized with honor as UN supplier for four continuous years, provided equipments and service, as general contractor, for lots of national government construction projects. We are the standing director of the first Council of Shanghai Chamber of Commerce for Import and Export, and in 2009 made one of the first batch of pilot enterprises in cross-border settlement of RMB in China.
