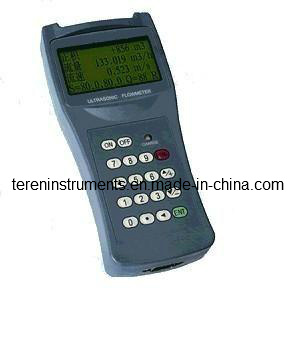

Hand-Held Ultrasonic Flow Meter (100EX)

Name: Hand-Held Ultrasonic Flow Meter (100EX)
Brand: China-Manufacturer-Directory.com
SKU: 677969822
Availability: InStock
Rating: 4.8 (103 reviews)

Supplier:	Dalian Teren Industry Instruments Import and Export Co., Ltd.
Price:	US $ 600-800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	100EX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Operating Time:	>14h
Flow Rate:	0.01~25 M/S
Resolution Ratio:	0.025 Cm/S
Protection Grade:	IP65
Material:	Aluminium Alloy
Power Supply:	Batteries(6V/4ah)
Response Time:	1s
Sensor:	Plug-in
Type:	Variable Area Flow Meter
Accuracy:	≤±0.1%
Measuring Media:	Liquid
Principle:	Variable Area Type
Measuring Principle:	Electrical Principles
Size:	15-6000mm

Product Description

Hand-held ultrasonic flowmeter using external clamp type sensor to measure liquid flow, especially suitable flow balance test and flow monitoring: Drinking water, river water, sea water, cooling water, hot water, industrial sewage and oil, diesel oil, fuel oil, chemical liquid, etc.

Feature:

1 Non-contact measuring method, small volume, light weight, easy to carry

2 It's very easy to install sensor, can be used to measure all kinds size pipe guide sound medium

3 Wouldn't destruct pipeline, don't need to suspend production during measuring. Sensor is not contact with measured medium, no loss of pressure

4 Suitable for measuring metal pipe, plastic pipe and other soft material pipe

5 Built-in rechargeable battery, can continuously work more than 12 hours.

6 Intelligent print function to guarantee the integrity of the data

Item	Standard
Linearity	0.5%
Repeatability	0.2%
Accuracy	± 1% of reading at rates> 0.6 ft/s. ± 0.5% with on-site calibration
Response Time	0-999 seconds, user-configurable
Velocity	± 0.03 - ± 105 ft/s (± 0.01 - ± 30 m/s), bi-directional
Pipe Size	15mm - 6, 000mm
Rate Units	Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.
Totaliser	7-digit totals for net, positive and negative flow
Liquid Types	Virtually all liquids
Security	Setup lockout. Access code needed for unlocking
Display	4x16 English letters
Communication Interface	RS-232C, baud-rate: from 75 to 115, 200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.
Transducers	Model M1 for standard, other 3 models for optional
Transducer Cable	Standard 10m, optional 2x1, 500 (500m)
Power Supply	3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of operation. 100V-240VAC for the charger
Data Logger	Built-in data logger can store over 2, 000 lines of data
Manual Totalizer	7-digit press-key-to-go totalizer for calibration
Housing Material	ABS. Aluminum alloy protective case
Case Size	3.9x2.6x0.8 (100mmx66mmx20mm)
Handset Weight	1.2 lbs (514g) with batteries
