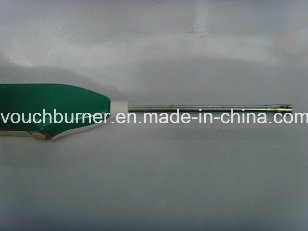

Hand Hold Ignition of Standard Combustion Test Machine
Product Specifications
| Prod Model: |
1230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| S: |
Q |
| Type: |
Material Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description
Application: Mainly used to pass on vertical textiles and component edge and the bottom edge of the ignition detection the flammable properties and can also detect pajamas with a combination of fabric and fabric, curtain, curtain, door clothing woven flame retardant performance, in line with the requirements of the numerous domestic and international testing standards.
Technology data:
In accordance with standard:
ISO 6940:1995 vertical sample combustion property
ISO 6940:2004 vertical sample combustion property
ISO 6941:2003 vertical sample flame spread property
ISO 10047:1993:fabric surface burn time
BS5438:1976: Flame retardant properties of vertical vertical textiles
BS 5438 :1989: The vertical component of textiles and a bottom and edge ignition flame retardant
BS5722:1991: Flame retardant properties of the fabric and fabric combination of the pajamas
BS EN1103:2005 take fabric combustion performance
BS EN 13772:2003 Flame spreading performance of curtain and curtain
ISO 15025:2002: Protective clothing insulation and flame retardant properties
AS 2755. 1,2,3 Australia and new Zealand vertical sample combustion property
GB/T 8745 ,GB/T 8746,GB/T 5456 China standard
Main features: Integrated design, easy to operate personnel
,,
Large burning rack, can hang a variety of test needle box, meet the needs of different testing standards
71,
Equipped with 7 kinds of test needle frame and 1 sets of stainless steel sample clip, meet the testing standards of the country
,
Roller screw adjusting burner forward and backward, burner height by adjusting knob
,
One button ignition method, the use of electric spark ignition
The process of burning gas in the combustion of propane and propane
Flame angle indicator panel can display operation angle
,
With the height of the flame, the vertical flame height is detected.
,
Stepper motor drive mode, can drive the burner movement
0.18,
Ignition device angle accuracy of 0.18 degrees, accurate positioning
,
The use of outdoor operation mode, can protect the test personnel safety
NI,
NI platform development and testing software, test method is arbitrary set
Technology data:
Flame height :vertical 10-50mm adjustable
Horizontal:5-35 adjustable
Burning time:0-99.99s
Timing precision:0.1s
Test method:ignition in surface ,and in bottom
Flame move speed:10-30mm/s,can be set
Test report:computer software print directly
Main cpmponent:
Suzhou vouch testing technology Co., Ltd is a professional company which specialized in various flame retardance test equipment, we focus on research&development, produce, marketing and products test service for third-party, now we have 3000 square meters standard factory and 1500 square meters test laboratory, we support high quality and cost-effective products and professional industry solution for customers. Our customer industry can be find all over plastic material, chemical, fire-retardant coating, rail transit, electrical appliance, textile, electrical wire and cable, building material, cars, aircraft material, ships products, research institution and quality testing organization and so on. We have complete production supporting from sales to customer service, we consider customer's opinion and requirement each link, and we do best to supply good quality, safty, reliable and cost effective products to customers. We have coopearte with Shanghai Engineer colleague, BYD Automatic company etc
