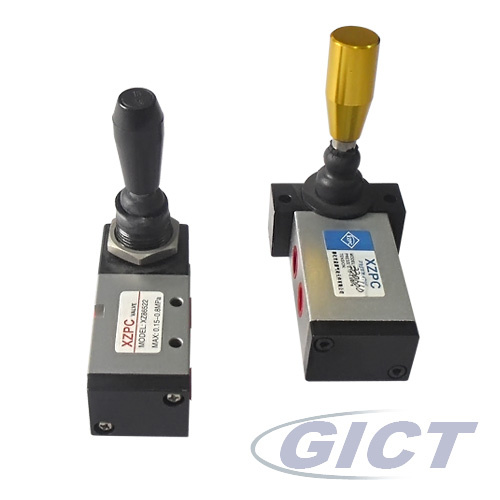

Hand Pull Valve

Hand Pull Valve
Supplier: Zhenjiang Global Industrial Components Trading Co., Ltd.
Price: Negotiable
Min Order: 1
Quantity::
contact supplier

Product Specifications

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ordering Code: 4h 2 10 -- 06-- L
(4h)Specification Code: 4h(Two/Three-Posithion Five-Way)
(2)Series Code: 2(200series)/ 3(300series) /4(400series)
(10)Motion Pattern: 10(Single Head Double Position)
(06)Joint Pipe Bore: 06(G1/8) 08(G1/4)10(G3/8)15(G1/2)
(L)Type Code: Three Position Five Way Locking Type

Product Description

We provide Hand-Pull Valve Model: 4H210-06 4H210-08 4H230-08 4H310-08 4H310-10 4H410-15 with high quality, competitive price and good service. Please feel free to contact with us.
Model 4H210-06 4H210-08 4H230-08 4H310-08 4H310-10 4H410-15
Working Medium 40 Micron Filtered Air
Motion Pattern Direct Drive Type
Effective Section Areas(mm2) 14 16 12 25 30 50
Joint Pipe Bore G1/8 G1/4 G1/8 G1/4 G1/8 G1/2
WorkingPressure Range 0— 0.8MPa
Operating Temperature Range 0-- +60°
GICT is the leading company of machining parts, pneumatic components and mining machinery items. Product ranges include new material ( metal foam) casting parts, stamping parts, forging parts, pumps, turning parts, various valves and cylinders, air source treatment unit, fittings and so on...

GICT is dedicated to providing the best Quality and Service to our customers, adds value to our customers by bringing its "Customer First" culture to the customer. GICT always try to do everything with a sincere and honest attitude, high-quality goods, competitive price and outstanding service. We partner with our sister company, Global Industrial Company, which located in TN to provide Vendor Managed Inventory (VMI) and Third Party Logistics (3PL)serving major customers in automotive healthcare, energy, lawn & garden and other industries.

GICT is robust company, welcome the partners from the whole world to cooperate with us and build a brilliant future.
