Product Specifications
| Prod Model: |
XY-BT-288 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Speed: |
800--1200 Sheets/Line/Minute=60-100m/Min |
| Output Line: |
1-8 Line for Choice |
| Embossing: |
Steel to Rubber |
| Interfold Style: |
V Fold |
| Counting: |
Automatic Digital Counting |
| Machine Design: |
Customize Service |
| Delivery Time: |
20-60 Days |
| Color Printing: |
1-3 Colors Printing for Choice |
| Computerized: |
Yes |
| Sheet Former Type: |
Cylinder Mould |
| Paper Thickness: |
Thin Paper |
| Condition: |
New |
| Type: |
Paper Folding Machine |
Product Description

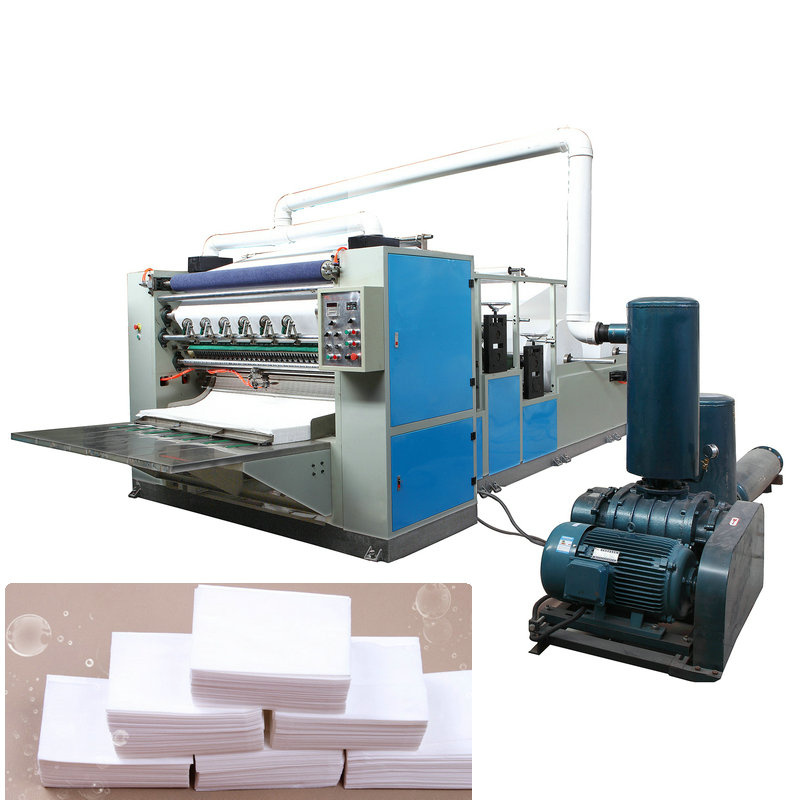

Hand Towel Facial Tissue Converting Machinery XY-GU-20A
One machine for processing both Facial Tissue and Hand Towel Paepr
Descriptions:
This model is designed to produce "link type" box-drawing facial tissue, that's mean, each sheet link together, draw the top tissue, the head of next sheet will come out the box. And this machine can produce either embossed or without embossed for customers' selection. It has a feature of tight structure, easy operation, stable operation and elaborate designed.
We can make the machine with 1- 8 output lines.
This machine can equip with single color printing or double color printing unit.
Function and Features:
1. Count automatically and output in order
2. Adopting screw turning knife to cut and vacuum absorption to fold.
3. Adopting step less adjusting speed to roll to fix different tension of raw paper.
4. Electricity control, easy to operate.
5. This equipment can have embossing unit.
6. Wide range of production width for selection.
Technical data:
1. Production speed: 800 Sheets/line/minute
2. Production open size(mm)200(L)X140-210 W(adjustable)
3. Production folded size(mm)100(L)X140-210 W(adjustable)
4. Power: 7.5KW (380V 50Hz)
5. Overall size(m): 5.8 X2.2X2(LxWxH)
6. Weight: About 5T
Specification of raw material:
1. Width of raw paper: 200-1680mm (1-8 lines)
2. Diameter of raw paper: 700mm-1200mm
3. Thickness of raw paper: 14G/m² -18G/M²
4. Diameter of paper core: 76.2mm
Video link: http://www.youtube.com/watch?v=IOCn5i3S8yQ
Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
We are professional Tissue Paper Converting Machine manufacturer for more than 10 years, we can make the machine according to customer's request.
We will provide good quality of machine with lowest price, if you buy the machine from us.
Fujian Xinyun Machinery Development Co., Ltd
ADD: NO. 589, Nanhuan Road, Quanzhou City, Fujian Province, China
Contact person: Darren Pan
Tel: 0086-595-28053752
Fax: 0086-595-28051752
M. B: 0086-15060870806
If you need more information about these machine, please feel free to contact me!
Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery Manufacture.
Professional manufacturer of:
1)Toilet Paper Machine 2)Facial Tissue Machine
3)Napkin Paper machine 4)Hand Towel Paper Machine
5)Pocket Tissue Machine 6)All kinds of Tissue Paper Cutting and Packing Machine 7)Baby Diaper Machine 8)Sanitary Napkin Machine and another Household Paper Equipments.
Professional Facial Tissue Machine Features |
Machine Model |
XY-GU-20A |
Speed( sheets/minute ) |
2 Lines |
3Lines |
4 Lines |
5 Lines |
6 Lines |
7 Lines |
8 Lines |
1,600 |
2,400 |
3,200 |
4,000 |
4,800 |
5,600 |
6,400 |
Design Product Capacity |
800-1,200 sheets/line/minute |
Jumbo Roll Size |
800mm (W) 1200mm(Ø) |
Jumbo Roll Material Qualify |
Paper Basic Weight: 12~18 gsm/1 ply
Paper Material:100% pure paper
Jumbo Roll Paper Core: 3 inches |
Interfold Style |
V Fold |
Unfold Dimension |
200mm (L)x200mm(W) |
Interfold Dimension |
100mm (L)x200mm(W) |
Controlling System |
Frequency drive |
Air compressor |
Prepared by buyer |
Power |
7.5 KW (380V 50Hz 3 Phase) |
Overall size |
5800x2400x2000mm |
Weight |
4 T
|
