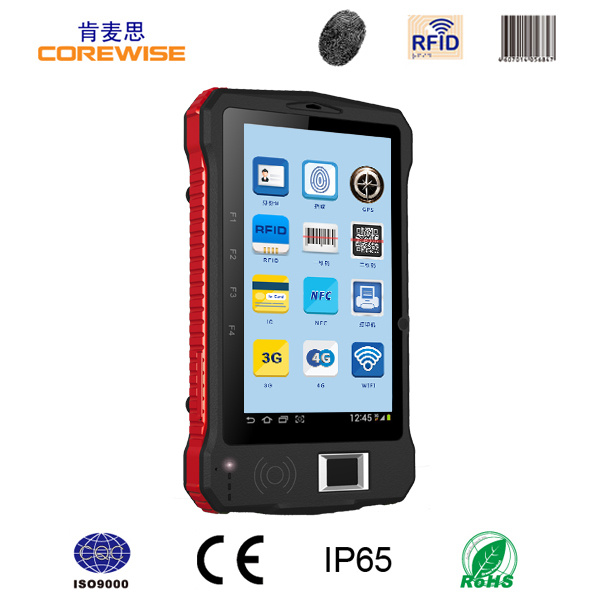

Handheld Andorid Industrial PDA IP65 Rugged Fingerprint Reader (A370)

Product Specifications

Prod Model:	A370
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Red, Black, Green
Size:	7 Inch
Cup:	Dual Core 1.2GHz
Display:	TFT LCD 7 Inch, Sunlight Readable
Camera:	Front 1.3m, Rear 5.0m, LED, Auto Focus
Battery Pack:	8000mAh
Dimensions:	220 X 132 X 23(Mm) (8.7" X 5.2" X 0.9")
Weight:	1.05kg (1.1lbs) with Batteries
Name:	Handheld Andorid Industrial PDA with Fingerprint R
Type:	Handheld Computer
Screen Size:	7"
OS:	Android
Memory Capacity:	≥1GB
Applications:	Industrial Grade PDA
CPU Type:	Qualcomm
Internet Connection:	GPRS WiFi
Classification:	RFID Barcode Fingerprint

Product Description

Handheld Andorid Industrial PDA with Fingerprint Reader RFID Card Reader and Barcode Scanner-A370
HighLights:

A370 tablet fingerprint Application Solution Scenarios
Ticket Verification (Barcode Scanners) & Car Park Charging (POS Terminals)

People Verification, & Authentication (Fingerprint Sensors, ID Card Readers)

Driving License & Car Verification, & Authentication (Police Affairs Terminals)

A370 winmate technologies for 7 inch with android 2.3.4 OS supported compact rugged tablet PC Specification
SpecificatiTechnical ons of Nanjing Corewise IC-7 Tablet PC (A370)
3G: GSM/GPRS/EDGE 900/1800MHz
WCDMA/HSDPA 2100MHz
CDMA 2000 1X EVDO 800MHz
OS: Google Android 4.1
CPU: Qualcomm MSM 8225  Quad Core 1.2GHz,
Compatible with Qualcomm MSM 8625
Memory: 1GB RAM, 4GB ROM
Storage: T-Flash/Micro SD card, up to 64 GB
TFT LCD 7 inch, sunlight readable
Touch type: Capacitive type
Display Resolution: 1024 X 600
Camera: Front 1.3M, rear 5.0M, LED, auto focus
USB: Mini USB 10-pin, OTG supported
GPS: Supported, 10m
Built-in speaker & microphone
WiFi: Integrated WLAN 802.11 b/g
Integrated Bluetooth V3.0 EDR class 2

Design	Tablet PC
Keys	Four
Dimensions	220*132*26.5mm
Weight	780g
OS	Android 4.1
CPU	Qualcomm 8X25Q ,1.2G quad-core
Storage	8GB ROM + 1GB RAM
Frequency band one:	UCG124 WCDMA: 2100  CDMA: 800/1900 GSM: 850/900/1800/1900
Frequency band two:	UCG 304 WCDMA: 2100/1900/(900or850)  GSM: 850/900/1800/1900
Display	TFT LCD 7 inch, sunlight readable
Touch type	Capacitive type
Display Resolution	1024 x 600
CameraFront	1.3M, rear 5.0M, LED, auto focus,flashlight
GPS	Supported, 10m
Network Interface	Integrated WLAN 802.11 b/g;Integrated Bluetooth 2.1
UHF RFID(Optional)	0~5 m ,ISO18000-6C supported
IC card (Optional)	ISO/IEC 14443 A,ISO/IEC 14443 B,ISO 15693
Fingerprint (Optional)	Live, biometric fingerprint sensor/reader, capacitive touch screen, 508 DPI , <1s,
Barcode scanner (Optional)	1D: UPC/EAN,Bookland EAN,UCC Coupon Code, ISSN EAN Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39,Code 32,Code 93,Code 11,Interleaved 2of5,Discrete 2of5,Codabar ,MSI,Chinese 2of5,Matrix 2of5,Inverse 1D ,Korean 3of5,GS1 DataBar,Composite Codes 2D: PDF417,MicroPDF417,Data Matrix,Data Matrix Inverse,Maxicode,QR Code,Micro QR, QR Inverse,Aztec,Aztec Inverse,US Postnet,US Planet,US Postal,Japan Postal,Australian Postal,Netherlands KIX Code,USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Storage	T-Flash/Micro SD card, up to 64 GB
Battery Pack	3.7V ,8000mAh
Mini-USB	10pin,support OTG,external U flash disk,keyboard,card reader,printer,RJ45 converter.
Serial	UART or RS232
AC/DC Adapter	DC 5V
Voice Call	Supported
Receiver	Supported
Speaker	Supported
Earphone	Supported
Prompt	Supported
Ruggedness	IP65
Reliability	MTBF no less than 5000h
Working Temperature	-20ºC~+70ºC
Storage Temperature	-40ºC~+70ºC
Working Humidity	<90%RH
Storage Humidity	20% ~93%RH(40ºC)
Atmospheric Pressure	86Kpa~110Kpa

Features
1. Live, biometric fingerprint sensor/reader, capacitive touch screen, 508 DPI
2. HF RFID 13.56MHz-Optional UHF RFID 915MHz, ISO18000-6C, ISO/IEC 14443 A, ISO/IEC 14443 B, ISO 15693, 0~5m
3. ID/2D Barcode Scanner, implemented by rear camera + Software

Corewise Corporate Information
Nanjing Corewise Smart Technology Inc. is a leading manufacturer of smart terminals,
Corewise is a high-tech enterprise and specialized in R&D and manufacture of smart terminal. E. G. Tablet PC, barcode scanner, RFID smart card writer/reader, biometric fingerprint sensor, Bluetooth thermal printers, police-use BTS, etc. Integrated with 3G smart phone features, these "all-in-one" terminals with superior performance can be utilized in a wide range of scenarios. Google Android downloadable apps or tailor-made software can work in conjunction with our powerful terminals to create most controllable and versatile solutions to bring human, financial, material resources as well as vehicles under absolute control.

Being at the very forefront of technical development, Corewise provide quality deliverables made of the highest industrial grade materials, with shortest lead time and sound after-sale services. Corewise help clients to deliver tangible and supremely effective solutions with sustainability and optimum effects to explore local market and expand geographic reach with product availability and backed guarantee.

Corewise is now headquartered (R&D) with product lines (PLs) in Shenzhen focusing on procurement & producing. Our annual turnover is around 15 million U. S. Dollars.
A370 winmate technologies for 7 inch with android 2.3.4 OS supported compact rugged tablet PC OEM&ODM

Technical support:
We provide free SDK, DEMO and the application development guide and development environment introduction, meanwhile, we will provide technical support in your development process.
(You are also welcome to commission this development job to us, we will charge it according to the development period)
