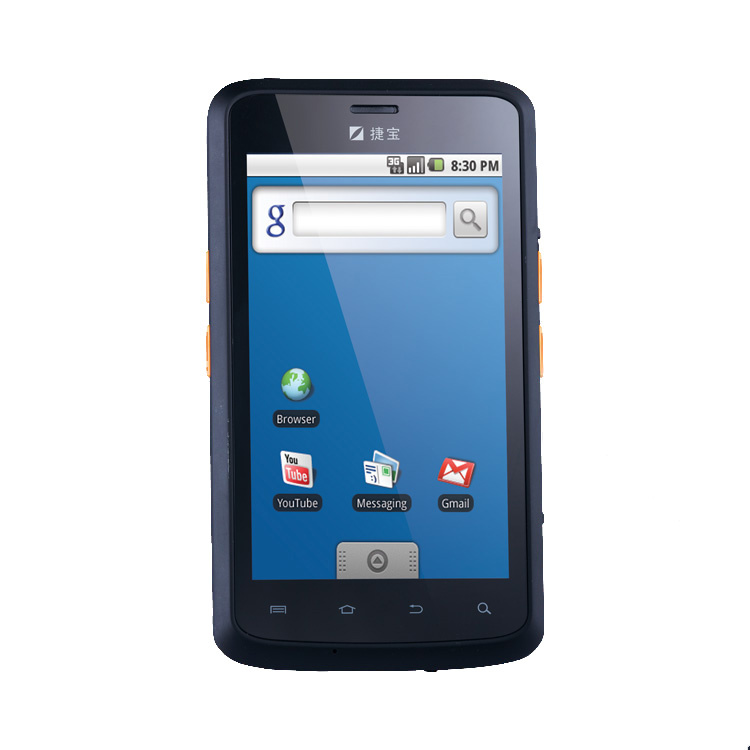

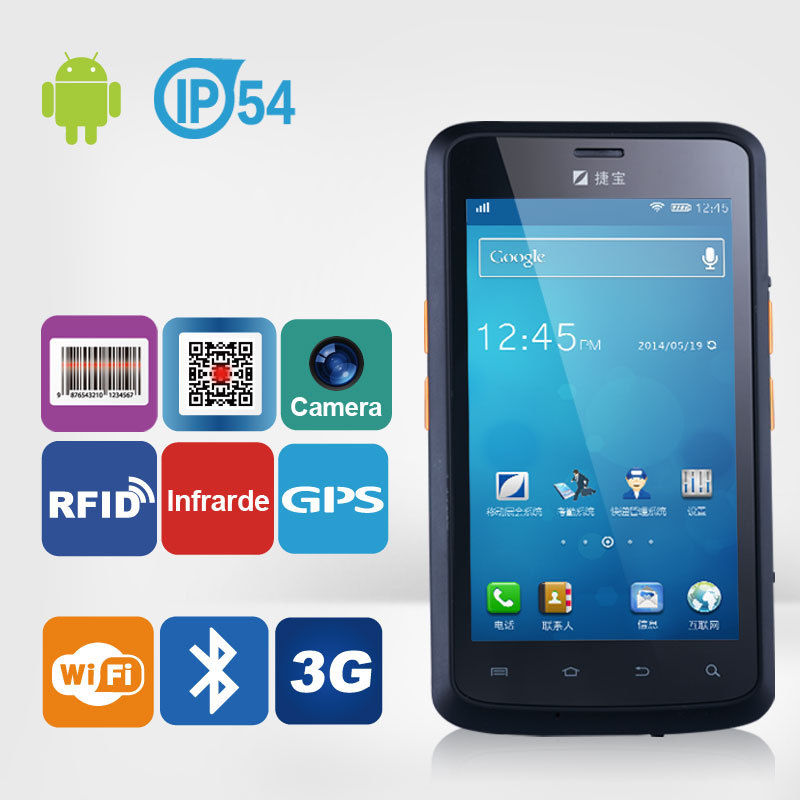

Handheld Android PDA Support Barcode WiFi 3G GPRS RFID Bluetooth GPS
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,others |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
HT518 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
PDA |
| CPU: |
Cortex-A8 1GHz |
| Memory: |
512MB |
| Camera: |
5 Megapixels |
| Size: |
151mm(Length)*84mm(Width)*18.7mm(Thickness) |
| Weight: |
<285g |
| Type: |
Handheld Computer |
| OS: |
Android |
| Memory Capacity: |
512MB |
| Applications: |
Personal Communication Assistant |
| CPU Type: |
ARM |
| Classification: |
Bar-code Scanner |
| Screen Size: |
5inch |
| Internet Connection: |
Wi-Fi, GPRS, 3G |
Product Description
Android PDAJepower HT518 Android PDA Handheld support barcode wifi 3g gprs rfid bluetooth gpsWith Free SDK! It's extremely easy to develop any practical APPs you need. HT518 is not only the next generation equipment of Android PDA with Barcode Scanner, but also capable of rapid developing.
Your Best Choice of Android PDA with Barcode Scanner, Direct Deal from Factory.
HT518 is an IoT-based intelligent Android PDA with Barcode Scanner independently developed, designed and manufactured by Jepower Technology based on Android4.0 operating platform.Features:
OS: Android 4.0
Industrial Protection: IP54
Screen: 5 inch
Symbol Scanning Head: 1D/2D Supported
Equipped with GSM/WCDMA and industrial full touch screen operation, HT518 is an IoT-based intelligent Android PDA with Barcode Scanner Scanner independently developed, designed and manufactured by Jepower Technology based on Android4.0 operating platform. With fashionable appearance, industrial design and a 5-inch 480*800 LCD, it's quite powerful and applicable to a wide range of industries such as retail, clothing, medical service, express delivery, asset management, traffic enforcement, government and public utilities.
Stable performance, firm and durable structural design, industrial IP54 packaging design standard, good performance in resistance to water and dust, ensure normal operation under complex and demanding conditions, high-capacity lithium polymer battery to ensure long service life, thus providing more comfortable and relaxing user experience.
Support GSM/WCDMA wireless communication mode. Configured with the universally applied WCDMA 3G communication model to automatically switch to 2G GPRS service without 3G network, so as to ensure data transmission speed and provide strong support to customers in real-time field data transmission.
Performance of HT518 Handheld PDA |
CPU | Cortex-A8 Dominant frequency 1GHz |
OS | Android 4.0 |
Memory | 512MB |
Flashmemory | 512MB |
Display | 5-inch LCD (480*800) |
Touchscreen | Multi-touch capacitor screen |
System development software | Android SDK |
Application environment | Support Java |
Data collection |
1D barcode* | Support:
Code 39; Codabar; Code 128; Discrete 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E; EAN 8; EAN 13; MSI; EAN 128; Code 39;ISBN,ISSN |
2D barcode* | 1D Symbologies:
Code 39; Codabar; Code 128; Discrete 2 of 5; Interleaved 2 of 5; Code 93;
UPC A; UPC E; EAN 8; EAN 13; MSI; EAN 128; Code 39;ISBN,ISSN |
2D Symbologies:
PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse |
Infrared communication* | Built-in, support DL/T645-97(07)regulation |
RFID* | Support 1443A protocol |
| GPS* | Positional accuracy less than 10m, rate accuracy less than 0.01m/s |
Wireless Communication |
WiFi* | IEEE 802.11b/g/n |
Communication Module* | Support GSM / WCDMA 3G |
Bluetooth* | Support protocol version 2.0 (optional configuration, built-in),support Bluetooth communication and printing. |
Physical Parameters |
Camera* | 5 megapixels with Auto-Focus and Flashlight |
| Dimension | 151mm(length)*84mm(width)*18.7mm(thickness) |
Weight | <285g (including battery) |
Backlight | LED backlight, adjustable |
Button | Four side buttons, 1 switch button, and three user-defined buttons |
Battery capacity | 3100mAH rechargeable polymer battery (Working time over 8hrs) |
Expansion slot | SIM*1, Micro SD(TF)card |
Speaker | Built in 1.2W speaker |
Keyboard | Virtual QWERTY keyboard, handwriting input |
Operating Environment |
Working temperature | -10~+50°C |
Storage temperature | -25~+70°C |
Relative humidity | 5%RH-95%RH (no condensation) |
Anti-seismic height | 6 sides could undertake the impact by falling from 4 feet (1.2m) to the cement ground for may times within the scope of operating temperature |
Protection Grade | IP54 standard |
Accessories |
Optional accessories | USB Cable x1, Portable Charger x1, Battery x1, Softward Disc x1 |
| Warranty | 12 months (Accessories are exclusive) |
| PS. *mark stands for optional funtion |
