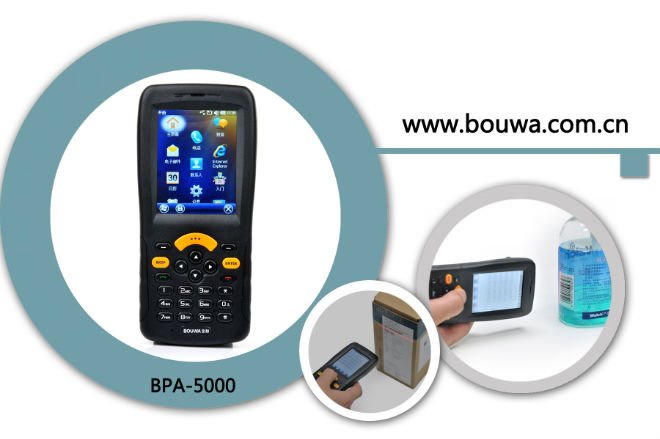

Handheld Computer PDA Terminal (BPA-5000)
| Supplier: |
Bouwa Co., Ltd. |
| Price: |
US $ 500-1100/Set |
| Min Order: |
1/Set |
| Quantity:: |
|
| Trade Terms: |
FOB |
|
Product Specifications
| Prod Model: |
BPA-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
RS232, USB2.0 |
| Display: |
Qvga With Backlight, TFT Touch Window LCD |
| SIM Slot: |
1g |
| T-Flash: |
8g |
| Communication: |
GPRS/EVDO, Bluetooth, WiFi |
| Industrial Level: |
IP64 |
| OS: |
Android |
| Type: |
Handheld Computer |
| CPU Type: |
ARM |
| Screen Size: |
2.8'' |
| Memory Capacity: |
256MB Flash ROM+128MB RAM |
Product Description
Bouwa BPA-5000 is a compact, versatile industrial portable mobile terminal, with WINDOWS MOBILE 6.5 operating system, supports GPRS, EVDO, WI-FI, BLUETOOTH data transmission and 1D, 2D, camera, RFID, GPS.
-2D barcode reader/RIFD13.56 Mifare
-2.8" backlight TFT touch screen
-IP64
-WiFi, GPRS, 3G, Bluetooth, GPS
Application
- Public transport industry (such as: Meter reading, parking, law enforcement, etc. )
- Medical industry
- Restaurant industry
|
CPU |
ARM9 460-520MHz |
|
OS |
Microsoft Windows Mobile 6.5 |
|
Memory |
256MB FLASH ROM +128MB DDR SDRAM |
|
Interface |
RS-232 ,USB2.0 |
|
Physical Characteristics |
|
Dimensions |
147mm(L) 69mm(W) 24.7mm(H) |
|
Weight |
Including standard battery:260g |
|
Display |
2.8'' QVGA with backlight, TFT TouchWindow LCD,260K,240x320 |
|
Touch Panel |
Analog resistance type |
|
Kyepad |
25 buttons (2 side key+1 power key+22 frontal key) |
|
Standard Battery |
Rechargeable,High Capacity Li-ion Battery,3.7V 2000mAh |
|
Extended Battery |
Rechargeable,High Capacity Li-ion Battery,3.7V 2000mAh |
|
Operating Battery Life |
about 12 hours |
|
SIM Slot |
1G |
|
T-flash |
8G |
|
Telepone |
Available |
|
Communication |
GPRS EDGE - 850/1900 MHZ ; 900/1800MHz |
|
Integrated Bluetooth® Class II, V 2.0 + EDR |
|
3G CDMA2000(EVDO) |
|
WIFI 802.11b/g |
|
GPS |
Integrated GPS with Network Independent A-GPS (optional) |
|
Camera |
CMOS 2.0 Mega pixels Flashlight LED (optional) |
|
User Environment Characteristics |
|
Operating Temp |
-10°C to 50°C |
|
Storage Temp |
-20°C to 60°C |
|
Humidity |
95% RH non-condensing |
|
Drop Spec |
1.5m(5ft.) free drop to concrete |
|
Rain/Dust Protection |
IP64 |
|
Data Capture |
|
1D Laser Scanner |
Resolution: 4 Mil minimum element width |
|
Skew Tolerance: ± 54° from normal |
|
Scan Rate: 104 (+/- 12) scans/sec (bi-directional) |
|
Scan Depth:5.2mil,19.5mil |
|
Scan Angle: 54° ± 3° default |
|
Darning ruptured UPC barcode |
|
2D Imager Engine(optional) |
Optical Resolution:752 H x 480 V pixels (gray scale) |
|
Roll:360° |
|
Pitch Angle:± 40° from normal |
|
Ambient Light:Total darkness to 100,000 lux |
|
Aiming Element (VLD): 650 nm ± 10nm |
|
Illumination Element(LED):626mm ± 30 mm |
|
RFID(HF) |
13.56MHz Mifare ISO14443A/B,ISO15693 (optional) |
|
Development environment |
|
Software Development |
Windows Mobile SDK |
|
Programming Environment |
Microsoft® Visual Studio® 2005 support NET CF 2.0 |
|
Microsoft® Visual Studio® 2008 support NET CF3.5 |
Bouwa Co., Ltd was established in July, 2007 and adjacent to the Shenzhen High Tech Park. It is the wholly owned subsidiary of Bouwa Group, with registered capital RMB 12 million, Bouwa is the supplier of the industrial handheld intelligent PDA terminal and the servicer of application software systems solutions for various fields' on-site management.
In express transportation, clothing, logistics, Bouwa developed the intelligent PDA and other general industrial data collection of BPA1000, BPA2000, and BPA3000. In intelligent transportation, mobile enforcement, and other mobile damage assessment, Bouwa developed the intelligent PDA industrial data collection of BPB100, BPB200, and BPB300 which are with the thermal printer. In the field of public security, mobile population, special trade management, Bouwa developed the industrial data collection of the BPC110, BPC120, and BPC130 and other like models for reading second generation ID card. In the business models of payment of the membership cards, stored value and others, Bouwa developed a non-financial certification BPD210, BPD220, BPD230 industrial handheld PDA terminal. While in the integrated business of logistics, information flow, capital flow, Bouwa has develop BPE310, BPE320, BPE330, and other like models with PBOC, PCI, EMV approved financial payment terminals.
Bouwa put the technology innovation and customer value as the core for many years. And it fully inherits the industry resources of Bouwa Group over a decade. Six strategic bases have been established over the world including Shenzhen headquarter, Taipei Research Institute, Xian R&D Base, Shanghai Software Research Center, Beijing Strategic Center and North American Oversea Center. All these bases are the strong support for Bouwa improving competition in the market home and abroad. They are in charge of solving the technical difficulties and give guides for the hardware designs, background software programs.
Under the guidance of Bouwa Group's the third 5-year plan (2008-2013), 2011 will be a very curial year for the leap forward development of Bouwa Co., Ltd, With the core value of Customer Supreme, Staff Value, Team Work, Result First, Bouwaness is shouldering the mission of on-site Management and Mobile Payment Experts to elevate customers' value by scientific management and good service and finally realize our enterprise prospect "China's First Brand of Mobile Payment and Application Solution ".
