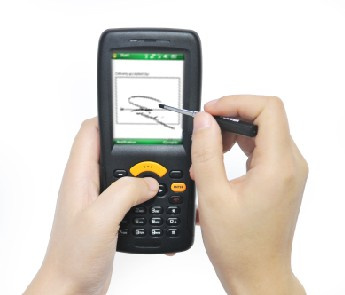

Handheld Data Collection Terminal With WiFi Bluetooth
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Handheld Computer |
| Memory Capacity: |
256MB |
| CPU Type: |
Arm9 |
Product Description
- 2.8-inch color LCD touch-type
- High-speed ARM9 processor, mass storage
- Microsoft Mobile 6.5operating system
- 1D/2D laser barcode scanner
- HF RFID reader module specifications
- 31 key multi-function keyboard, support for custom function key 8
- 2000mAh large capacity lithium-ion batteries(X2), long life time
|
Performance Characteristics |
|
CPU |
ARM9 460-520MHz |
|
OS |
Microsoft Windows Mobile 6.5 |
|
Memory |
256MB FLASH ROM +128MB DDR SDRAM |
|
Interface |
RS-232 ,USB2.0 |
|
Physical Characteristics |
|
Dimensions |
147mm(L) 69mm(W) 24.7mm(H) |
|
Weight |
Including standard battery:260g |
|
Display |
2.8'' QVGA with backlight, TFT TouchWindow LCD,260K,240x320 |
|
Touch Panel |
Analog resistance type |
|
Kyepad |
25 buttons (2 side key+1 power key+22 frontal key) |
|
Standard Battery |
Rechargeable,High Capacity Li-ion Battery,3.7V 2000mAh |
|
Extended Battery |
Rechargeable,High Capacity Li-ion Battery,3.7V 2000mAh |
|
Operating Battery Life |
about 12 hours |
|
SIM Slot |
1G |
|
T-flash |
8G |
|
Telepone |
Available |
|
Communication |
GPRS EDGE - 850/1900 MHZ ; 900/1800MHz |
|
Integrated Bluetooth® Class II, V 2.0 + EDR |
|
3G CDMA2000(EVDO) |
|
WIFI 802.11b/g |
|
GPS |
Integrated GPS with Network Independent A-GPS (optional) |
|
Camera |
CMOS 2.0 Mega pixels Flashlight LED (optional) |
|
User Environment Characteristics |
|
Operating Temp |
-10°C to 50°C |
|
Storage Temp |
-20°C to 60°C |
|
Humidity |
95% RH non-condensing |
|
Drop Spec |
1.5m(5ft.) free drop to concrete |
|
Rain/Dust Protection |
IP64 |
|
Data Capture |
|
1D Laser Scanner |
Resolution: 4 Mil minimum element width |
|
Skew Tolerance: ± 54° from normal |
|
Scan Rate: 104 (+/- 12) scans/sec (bi-directional) |
|
Scan Depth:5.2mil,19.5mil |
|
Scan Angle: 54° ± 3° default |
|
Darning ruptured UPC barcode |
|
2D Imager Engine(optional) |
Optical Resolution:752 H x 480 V pixels (gray scale) |
|
Roll:360° |
|
Pitch Angle:± 40° from normal |
|
Ambient Light:Total darkness to 100,000 lux |
|
Aiming Element (VLD): 650 nm ± 10nm |
|
Illumination Element(LED):626mm ± 30 mm |
|
RFID(HF) |
13.56MHz Mifare ISO14443A/B,ISO15693 (optional) |
|
Development environment |
|
Software Development |
Windows Mobile SDK |
|
Programming Environment |
Microsoft® Visual Studio® 2005 support NET CF 2.0 |
|
Microsoft® Visual Studio® 2008 support NET CF3.5 |
