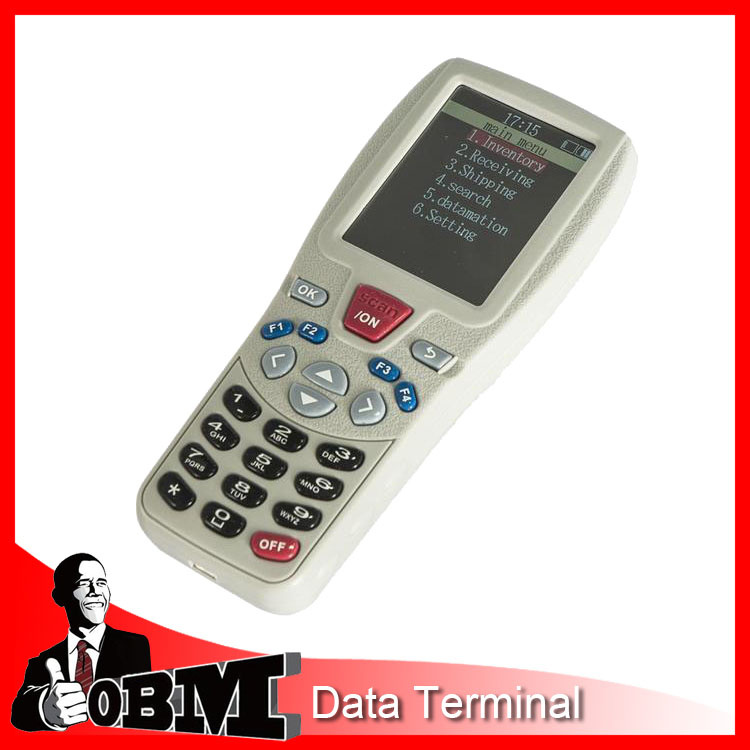

Handheld Medical Device Barcode Scanner Data Collector (OBM-757)

Name: Handheld Medical Device Barcode Scanner Data Collector (OBM-757)
Brand: china-manufacturer-directory.com
SKU: 739699625
Availability: InStock
Rating: 4.4 (30 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OBM-757
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Data Storage:	> 100,000PCS
Scan Pattern:	Single Line
Scan Rate:	45±2 /Sec
Scan Precision:	4mil
Error Rate:	1 Million-to-One
Indicator:	Beeper,LCD
Battery:	Rechargeable Lithium Ion Battery (3.7V ,2800mAh)
Charging Indicator:	LCD Display
Dimensions:	160mm×68mm×29mm
Material:	ABS + Silicon
Type:	Handheld Computer
CPU Type:	ARM
Memory Capacity:	16MB
OS:	Obm
Screen Size:	2.8"

Product Description

Handheld Medical Device Barcode Scanner Data Collector(OBM-757)

FEATURES:

1. MUTI-FUNCTIONAL
Covers the full circulation of commodity-receiving, shipping, cycle count, replenishment and defect report

2. RECONIZABLE
Supports download and of item file-barcode scanned mathes to the item automatically and displays on screen right away

3. SIMPLE
2.8" color display and graphical menu makes it easr to understand

4. EFFICIENT
Report is automatically generated right after inventory count, 90% saving on time, manpower and administrative overhead

5. SAFE
Real-time storage and bath transmission

6. Enduring
2800mA POLYMER-Lithium-ion battery ensures long working hours

Light source	650nm laser
CPU
Frequency	ISM band , 433MHz
Modulation	GFSK
Rate of Transmission	200Kbps
Output Power	20dBm (max)
Transmission	Coverage 300M visibility range ( Max. )
Antenna	Integrated PCB
Memory	16M
Keypad	23
Indicator	beeper , LCD screen
Bit error rate (BER)	1/1 million
Safety performance	Meet the Grade II National Criteria for Laser Safety
Scanning method	automatic or manual
Supported interfaces	RS232, PC2 keyboard, USB
Barcode types	EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postcode etc.
Use type	Hand-held or bracket-held installation
Resolution (pcs0.9)	0.10mm(4mil)
Depth of field	10-420mm (pos09 density 0.25)
decode rate	100 times/second
precision	0.10-0.825mm
scan width	60mm at 30mm; 98mm at 100mm
Reading angle of elevation	60 degree
Power voltage	5V
Working current	57mA
Static current	36mA
Light intensity	Daylight, 4000Lux max
Operating temperature	-20° C-45° C
Storage temperature	-20° C-45° C
Operating humidity	5%-85%
Storage humidity	5%-85%
color size and weight	23.5x17.5x7.5cm , 0.56KG\box
carton size and Qty	60x40x50cm, 32pcs/carton
