Product Specifications
| Prod Model: |
C5000-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Capacity: |
256MB |
| Type: |
Handheld Computer |
| OS: |
Windows |
| CPU Type: |
Samsung |
| Classification: |
Radio Frequency Identification |
| Internet Connection: |
WI-FI |
| Applications: |
Industrial Grade PDA |
| Screen Size: |
3.2'' |
Product Description

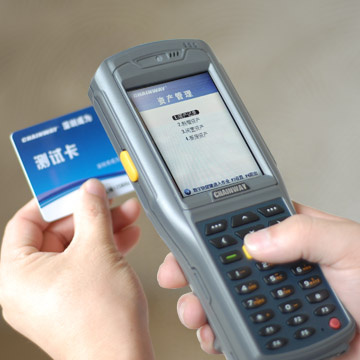

Robust data capture and bar code scanning capabilities for your mobile work fleet in one affordable, versatile terminal. It is highly customizable of RFID 13.56MHz, 1D&2D barcode, GSM/GPRS, WiFi, GPS, camera, phone. The hardware units' durable construction of IP64 Industrial Level has allowed them to be used in China's many varied environments, including the frigid North, scorching South, arid West, and humid East.
Product Specifications:
Size: 186.5(L)mm*75(W)mm*31(H)mm (with standard battery)
Weight: 400g
Battery: Rechargeable polymer battery(3.7V, 2000mAh)
Spare battery: 3.7V, 4000mAh (optional)
Touch panel: 3.2-inch TFT-LCD (240*320 QVGA), 65k colors
Input method: Touch-input, keyboard-input
Camera: CMOS 0.3 mega pixels
Development environment: J2ME programming using CLDC1.0, CLDC1.1, MIDP2.0. Provided with Software Development Kits (SDK).
Operating environments: -20 -- 50
Storage environments: -25 -- 70
Drop test: 1.5 meters drop at six sides
Roll test: 1000 times 0.5 meters rolling by six sides
Languages: Chinese, English
RFID Frequency: HF13.56MHz
Protocol standard: ISO14443A, 15693
Read-write range: 2cm-10cm
Wireless WAN/LAN: WiFi, GSM/GPRS
Expansion Slots: SAM/SIM/Micro SD(TF) cards
Optional Function modules: 1D&2D barcode reader, RFID ISO14443A, ISO15693, GPRS, GPS, WiFi
GPRS: GSM(900MHz/1800MHz)
WiFi: 802.11b/g
GPS: UBLOX 5Q
Accessories: Touch stylus, USB cables, portable battery charger, wrist strap, carring case, MicroSD(TF)card
Sealing environment: IP54
Packaging: 1PC in color box, 6 sets/carton
Warranty: 12 months covered against technical and material defects if no revision has been made.
Lead-time: 30days, sample time: 15days
As a specialized manufacturer of mobile data terminals, Chainway Information Technology Co., Ltd is dedicated to providing multifunction industry-class products that cater to global customers in different fields.
The All-in-One design makes our products capable of meeting the demands of various industries, such as material management, supply chain optimization, quality control, asset tracking as well as indoor and outdoor wireless communications. Integrating 1D/2D barcode scan engines, RFID read/write modules, fingerprint scanner, GPS, Camera, as well as built-in WWAN/WLAN, Bluetooth and thermal printer, our data collection terminals can make your mobile workers more productive and workflow more efficient.
