Product Specifications
| Prod Model: |
M9-GT71 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Logo: |
Can Be Customized |
| Size: |
81mm(H)× 73.8mm(V) |
| Weight: |
0.37kg |
| Battery: |
Lithium-Ion |
| Package Design: |
Can Be Customized |
| Memory Capacity: |
512MB |
| Type: |
Tablet PC |
| CPU Type: |
Arm11 |
Product Description

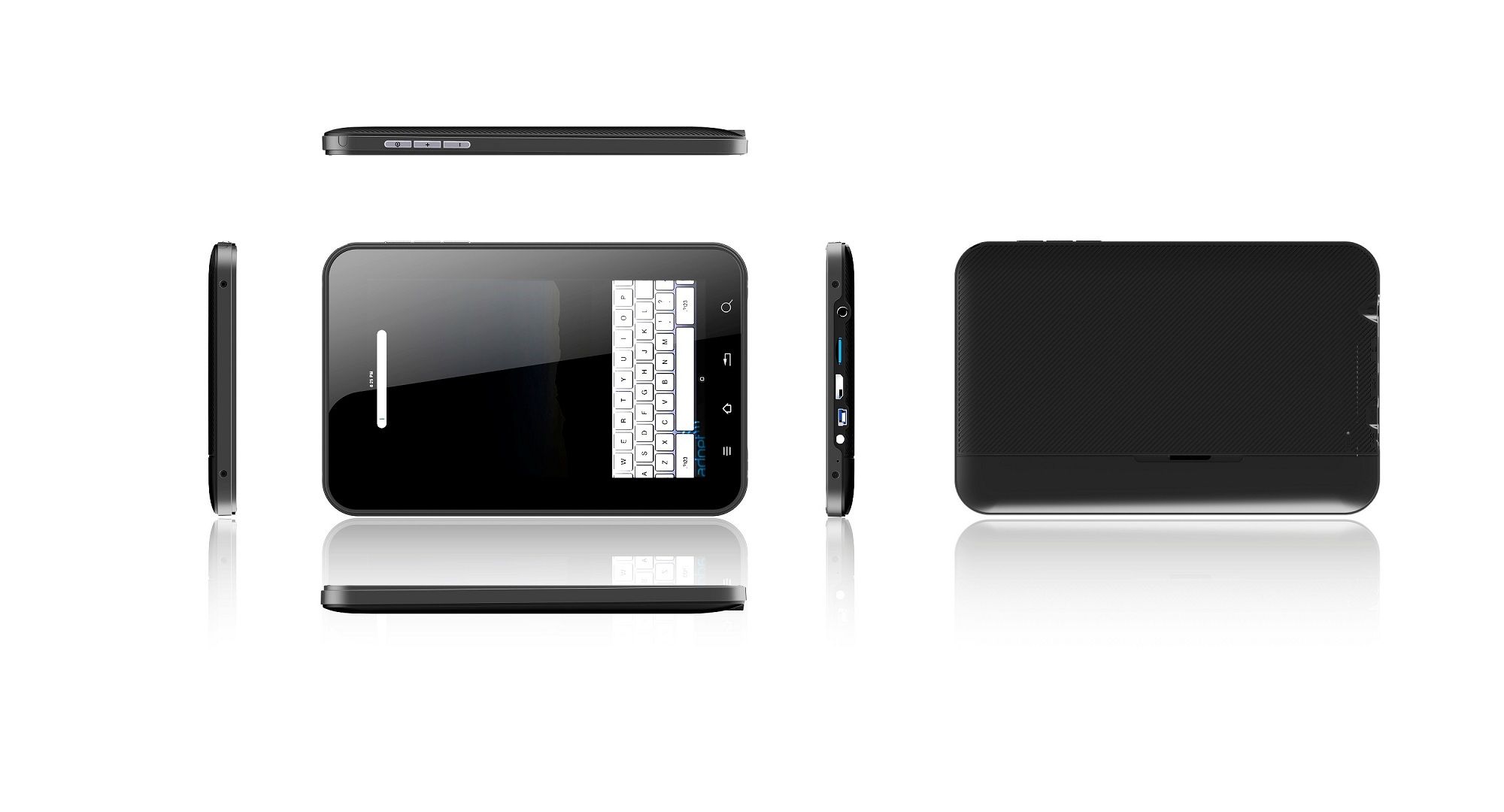

M9-GT71
PCBA instruction:
1. USB socket
2. HDMI socket HD multimedia signal output
3. TF cassettle
4. Stereo headphone socket dia3.5MM
5. MEMU
6. POWER (startup / shutdown /sleep)
7. BACK and HOME
8. FPC connector, used to connect with touch screen
9. FPC connector, used to connect with LCD
10. Battery welding points, pls distinguish positive and negative carefully
11. LCD backlighting welding points
12. Speaker welding points
13. DVB-T welding points
14. DVB-T TV module
15. RESET
16. WIFI antenna
17. GPS antenna
1. Physics standard:
Unit size: PCB: 81mm(H)× 73.8mm(V)
PCBA
Weight: About 3g
Screen size: 7.0 inch HD TFT
LCD resolution 800X480 16: 9
Touch screen single
Red LED ( charging indicator)
Blue LED (charging complete indicator)
Battery: Lithium 3.7V
MUNU:
POWER: Startup \shutdown\sleep
TF socket: External storage, software up-grade, documents storage
Reset: Type, on/off restart and reset
2. Hardware:
Type:
TCC 9201 ARM11
CPU: 506MHz~800MHz main screen, highest 800MHz
DDRII storage 256(128x2)Mbytes
Flash storage NAND FLASH 2G~16G optional
Type: MT3329
GPS characteristics: 22 tracking/ 66 acquisition-channel GPS Receiver
Rx sensitivity -160dB
Type: Dibcom 9090M
DVB-T
Frequency: UHF(470-862MHZ)
Optional:
WiFi: 802.11b/g
FM Transmit KT0803
Speaker build-in 1524/2030 8Ω/1W x 1
Build-in gravity sensor
Build-in microphone 4015 -42dB
3. Electrical specification:
Operation 0~60° C
Storage -20~75° C
Sleeping current: 8~15mA
Standby current:
300~400mA (Backlight Darkest)
700-800mA (Backlight Brightest)
Working current:
800-900mA (play video)
700-800mA (play audio
1000-1100mA (play DVB-T)
Biggest: ≤ 1.2A
Charging: 900mA
4. Interface configuration
Storage socket and external TF card socket, biggest 8G
Support mode: MASS STORAGE
USB 2.0 12MHz or 480MHz
HDMI type 720P HD digital signal output
DC socket power socket
Headphone socket, audio output 3.5mm
5. Accessories
3.5 inch stereo earphone
Power adapter
Car charger OUT DC4.8V~5.2V 1.5/ 2A optional
Charger: OUT DC4.8V~5.2V 1.5/2A optional
HDMI data cable
USB cable, support usb2.0
6. Software configuration \ function
System Andriod 2.1
Language: Multilingual, reference to the attached language list
Google pinyin, Android keyboard
QQ handwritten
Custom boot screen
Internet browser: Google Chrome, UCWEB
Audio: MP3, MP2, WMA, AAC, OGG, WAV, FLAC, APE
Video: AVI, WMV, 3GP/MP4, MOV, MPG, VOB, MKV,
RMVB, FLV, TS/TP
DVB-T (470-862MHZ) optional
Photo browser support: PNG, GIF, BMP, JPG
Multimedia function
FM 76MHz ~ 108MHz SNR ≥ 60 dB optional
Software configuration eoeApp
Task manager
Senior task manager
ES file browser
Google Talk CGOo. O, LglTe DTa. Lk
MSN Hi MSN
QQ MobileQQ
MiniFetion
Google map MT3329
GPS
Games: 3 point shooting / Russian square / five-in-a-row / push box / LLK
Office software
Google email
Net audio player
Financial software, stock software, bulls, sequence
Calendar
Calculator
Clock
Dictionary
E-book
Panda space
Panda Q & A
Other software: Panda weather software
Language List:
1 ENGLISH
2 ITALY
3 FRANCE
4 SPAIN
5 GERMANY
