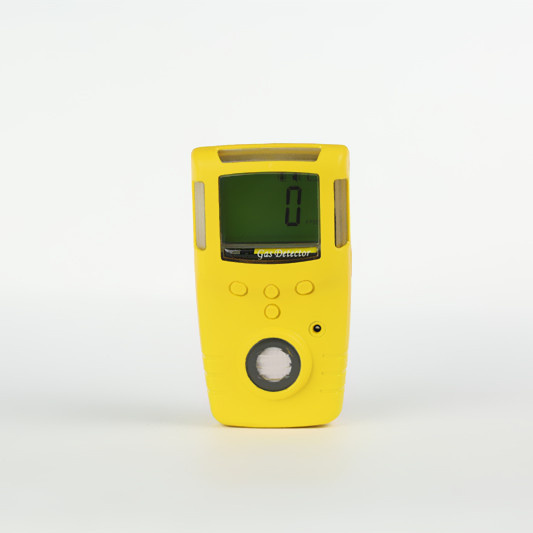

Handheld ph3 gas detector is a portable single gas detector. It's easy to be taken everywhere because of its small size and low weight.
Handheld ph3 gas detector is applied for PH3 leak detection. Since now,we have customers who use PH3 gas leak detector for coco or chocolate fumigant and pest control in urban.
We suggest range of 0-2000ppm for fumigant and 0-20ppm for pest control in urban or residential.
Handheld ph3 gas detector inspects gas density by natural diffusion and is equipped with imported electrochemical sensor, having good sensibility and excellent repeatability. The device has embedded micro control technique and Chinese user menu, making the operation easy. Complete function and dependability makes the whole device a leader in the nation.
The house of the handheld ph3 gas detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Features:
1.Reliable and durable fixed life by the imported sensor
2.Automatical calibration and zero-set
3.Apparent and Clear Display English menu, displaying real time and battery capacity, low battery indication and automatic turn-off for low voltage
4.Rapid and effective warning with audible alarm, and extremely bright visual light alarm and vibrating alarm as standard.
5.Advanced self-test of complete functions automatically when turned on
6.1000 record capacity
7.Alarm for sensor failure
8.Password management to avoid wrong operation;
9.Advanced self- calibration for accuracy.
Technical index:
Product anme | handheld ph3 gas detector |
Model | GC210 |
Gas detected | PH3 |
Range | 0-20ppm or 0-2000ppm |
Resolution | 0.1ppm |
Accuracy | 3% F.S. |
Response | T90<30s |
Operating temperature | -30 to +50 degree |
Humidity | <95% RH non-condensation |
Voltage | DC3.7V Li-ion battery 1200mAh |
Charging time | 4h to 6h |
IP grade | IP66 |
Weight | About 120g(including battery) |
Dimension | 102mm*56mm*26mm |
Duration of operation | Flammable gas<8h(non-stopped),toxic gas<300h(non-stopped) |
Indication | Large STN LCD indicates real time and system state |
Alarm indication | Wide-angled light emitting diode,85db buzz (the frequency of buzz depends the density),vibrating |
Fault indication | Indications of Zero point drift and sensor failure |
