Product Specifications
Product Description
Product Description

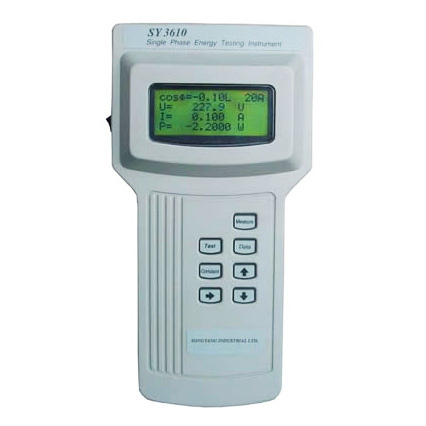

SY3610 Single-Phase Energy Testing is portable instrument for testing of single-phase power meter. The instrument adopts modern advanced measuring technology and it has small cubage, plentiful functions, and high precision. It can not only test power meter, but also measure virtual value of voltage and current, active and reactive power, power factor, and determine whether load is in inductance status or capacitance status. Also the instrument can save data and transfer it to personal computer.
The instrument is equipped with current inductance clamper for the convenience of checking loads on spot. Users may select clampers when purchasing. There are two kinds of clampers with different wide current range for selections.
The instrument has brief and friendly interfaces and each screen can display various information, so it can be operated easily. By operating only seven keys, users may rectify coefficient, automatic or hand-controlling testing of power meter and switch among such functions. Otherwise, smallness and delicacy are also characteristics of the instrument.
The instrument is suitable for error testing of inductive or electronic power meter within rank 1.0 and for measuring various parameters of electricity in field.
Technical Parameters:
1. Virtual Value of Voltage (U)
Rated Range (Un): 220V
Measuring Range: 165 ~ 242V
Basic Error: 0. 5% Un
2. Virtual Value of Voltage (I)
Rated Range of Current Clamper (Ib): 5A, 20A, 40A, 50A, 100A
Measuring Range: (5% ~ 120%)Ib
Basic Error: 0. 5%Ib
3. Active Power
Measuring Range: (5% ~ 120%)Ib and 165 ~ 242VAC
Basic Error: 0. 5% (for rated power)
4. Energy for Active Power
Basic Error: 0. 2%, 0. 3%, 0. 5%
Hangzhou Songyang Electrial & Technology Co., Ltd. belongs to HongKong Songyang Industrial Ltd., As a member of SOngyang Group, there are 5 brother companies enter into few different categroies: Zhejiang Songyang Electric Appliance Co., Ltd. (STAM PRESSES, VACUUM CLEANERS), Zhejiang Soode Electronic Technology Co., Ltd. (GAS METERS), Haiyan Shendi Electronic Technology Co., Ltd. (ENERGY METER TEST BENCHES).
Our company major products are Single/Three-Phase KWH Meters, Single/Three-Phase Prepaid Meters, Single/Three-Phase Carrier Meters, Single/Three-Phase Double-tariff Meters, Single/Three-Phase Multifunction Meters, Centralized Meter Reading System and Management System, Lineate/Wireless Auto-measuring Electricity System, etc.
The company uses the most advanced electronic and microprocessor technology and the newest SMT technique to manufacture. It also has all kinds of complete and advanced measuring and testing equipments, strict and standard production technique, better performance and lower price.
We can also produce 1, 20 thousand series of electronic meters every year.
