Product Specifications
| Prod Model: |
TDS-100H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor: |
Clamp-on/External |
| Type: |
Ultrasonic Flow Meter |
| Accuracy: |
?à0.6-1% |
| Measuring Media: |
Liquid |
| Principle: |
Ultrasonic Wave |
| Measuring Principle: |
Acoustics |
| Size: |
DN50-100 |
Product Description

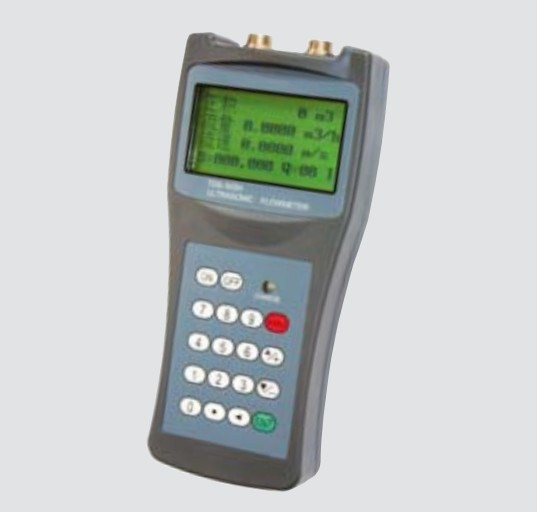

Handheld Ultrasonic Flow Meter for Liquid Flow Measurement
The TDS-100H handheld ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.
The TDS-100H transit time handheld flow meter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection of the mounting method depends on pipe and liquid characteristics. The ultrsonic flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the velocity of the liquid in the pipe.
Repeatability |
Better than 0.2% |
Accuracy |
± 1% of reading at rates> 0.2 mps |
Response Time |
0-999 seconds, user-configurable |
Velocity |
± 32 m/s |
Totalizer |
7-digit totals for net, positive and negative flow respectively |
Liquid Types |
Virtually all liquids |
Security |
Setup values Modification Lockout. Access code needs unlocking |
Display |
4x8 Chinese characters or 4x16 English letters, display instant flow, velocity, total flow,
signal status |
Signal output |
Non-isolation RS232(FUJI extention protocol) , one channel isolation OCT output |
Transducers |
Clamp on type transducers |
Transducer Cord Length |
Standard 2x10 meters, optional 2x 500 meters |
Power Supply |
3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation.
100V-240VAC for the charger |
Data Logger |
Built-in data logger can store over 2000 lines of data |
Housing Material |
ABS |
Case Size |
100x66x20mm |
Handset Weight |
514g (1.2 lbs) with batteries |
