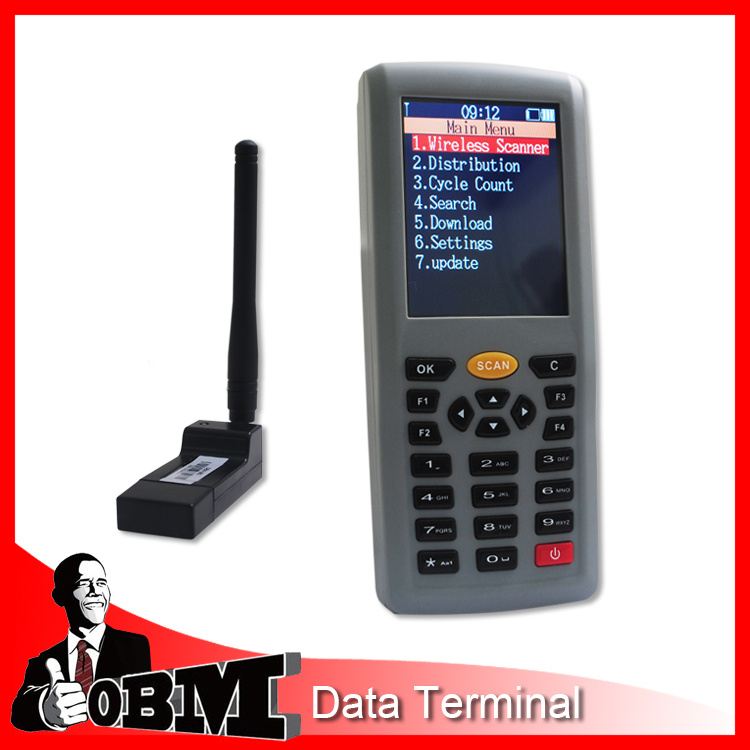

Handheld Wireless Barcode Portable Data Collector (OBM-9800)

Name: Handheld Wireless Barcode Portable Data Collector (OBM-9800)
Brand: China-Manufacturer-Directory.com
SKU: 724585955
Availability: InStock
Rating: 4.9 (78 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OBM-9800
Markets:	Southeast Asia
Color:	Frosted White
CPU Speed:	48MHz
RAM:	64kb
ROM:	16MB (Optional 32MB)
Screen Size:	2.8"
Battery:	Rechargeable Lithium-Ion (3.7V,2800mAh)
Working Time:	8 Hours
Standby:	15 Days
Dimension:	150mm×63mm×31mm
Material:	ABS + Silicone
Type:	Data Collector

Product Description

Handheld Wireless Barcode Portable Data Collector (OBM-9800)
FEATURES:
1. Cordless Scanner and Wireless Inventory handheld functions integrated;
2. Item name displays right after the barcode is scanned;
3. Program refreshing supported;
4. TXT or EXCEL file created as soon as data is uploaded;
5. Use as a USB flash disk (optional)
About Us:
Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.

Main Unit
Model		OBM-9800
Color		Fosted White
CPU Speed		48MHz
Memory
RAM		4KB
ROM		16MB(Optional 32MB)
SCREEN
Size		2.8
Color		16bit true color(65536 colors)
Resolution		240*320
type		Touch screen
Physical
Battery		Rechargeable Lithium-ion ( 3.7V , 2800mAh )
Working time		16 hours
Standby		15 days
Measurement		150mm × 63mm × 31mm
Material		ABS + silicone
Charging indicator		LCD
Working current		150mA
Standby current		6mA
EMC		CE & FCC DOC compliance
Scanning
Light Source		Light Source
Decode Rate		48±2 scans / second
Resolution		4mil
Scan width		20mm @window , 220mm @200mm
Depth of Field		0 ~ 250mm ( 0.33mm , PCS 90% )
indicator		buzzer , LCD
Barcode supported		EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI
Transmission
Cable		USB 2.0
wireless		433MHz (max. range 300m)
Environment
Working Temperature		0 ~ 45
Storing Temperature		-20 ~ 60
Humidity		5% ~ 95%
Lumination		Max.5,000 Lux ( Fluorescence )

Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.

In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.

Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.

Let us work together and make a better tomorrow with all new and old customers from all over the world.
