Product Specifications
| Prod Model: |
XKP-400/450/560/610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Waste Tire and Rubber |
| Power: |
37kw-132kw |
| Coulor: |
as Require |
| Certificate: |
ISO,CE |
Product Description

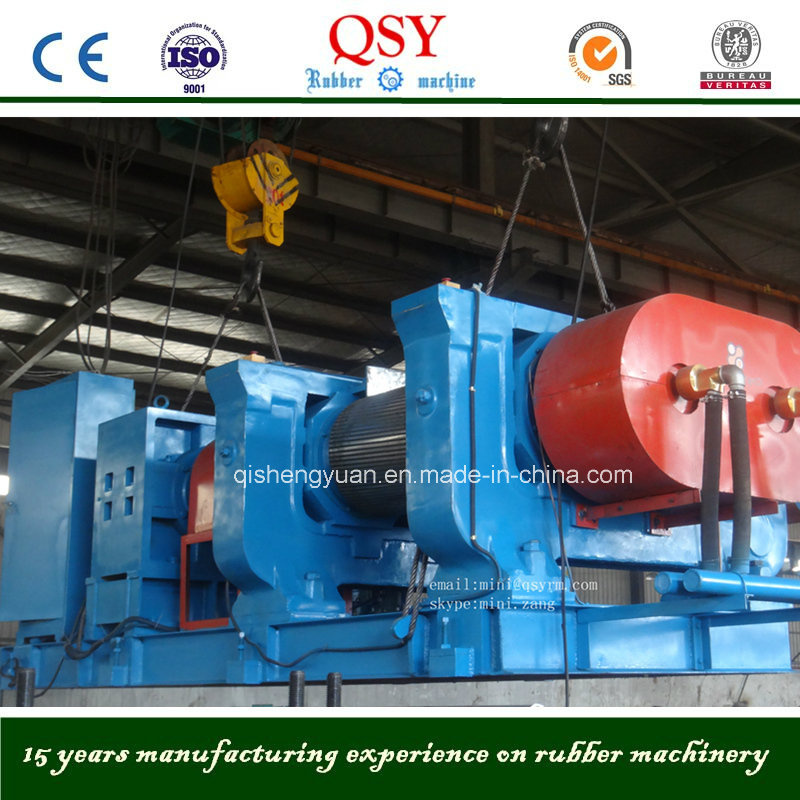

Hard tooth surface reducer Rubber cracker machine/Rubber crusher
1.Rubber Cracker Mill is used for breaking, plasticating and mixing of rubber materials.
2.The rollers are made of chilled cast iron with wear-resistant hard surface.
3.The two rollers are grooved. The bored rolls can be cooled homogeneously though inputting steam and cooling water.
4. The two rollers rotate reversely with different speeds, so that rubber material can be processed.
5. it's durable
6. it's enviromental
Parameters
Parameters/version | XKP-400 | XKP-450 | XKP-560 | XKP-610 |
| Front roll diameter(mm) | 400 | 450 | 560 | 610 |
| Back roll diameter (mm) | 400 | 450 | 510 | 610 |
| Roll length (mm) | 600 | 760 | 800 | 800 |
| Front roll surface speed (m/min) | 17.32 | 23.2 | 23.86 | 24.96 |
| Friction ration | 01:01.2 | 01:01.4 | 01:01.3 | 01:1.38/1.14 |
| Max, nip (min) | 8 | 8 | 15 | 20 |
| Feeding capacity per (kg) | 100-300 | 200-800 | 8000-1500 | 1500-2500 |
| Power(kw) | 45 | 55 | 90/110 | 132/160 |
| Size (length*width*height) (mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 | 5580*2500*2320 |
We give one year quality guarantee and long-term technical support. We can also train your workers for free. If you need, we can install and assemble the machine in your workshop.
Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2.Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3.Can you supply sample?
Yes,we can supply you free small samples,but air cost will be paid by customers.
4.What's your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5.Are you near to Qingdao airport?
Yes,only within 1 hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6.Do you have any certificate of your products?
Yes, CE, BV, SGS, REACH.
7.Do you have any certificate of your company?
Yes, ISO 9001:2008,CE
8.Did your products apply the patent?
Yes,we have various kind of vulcanizing machine , mixing machine , tyre recycling machine patent.
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
