Product Specifications
| Prod Model: |
AR936 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

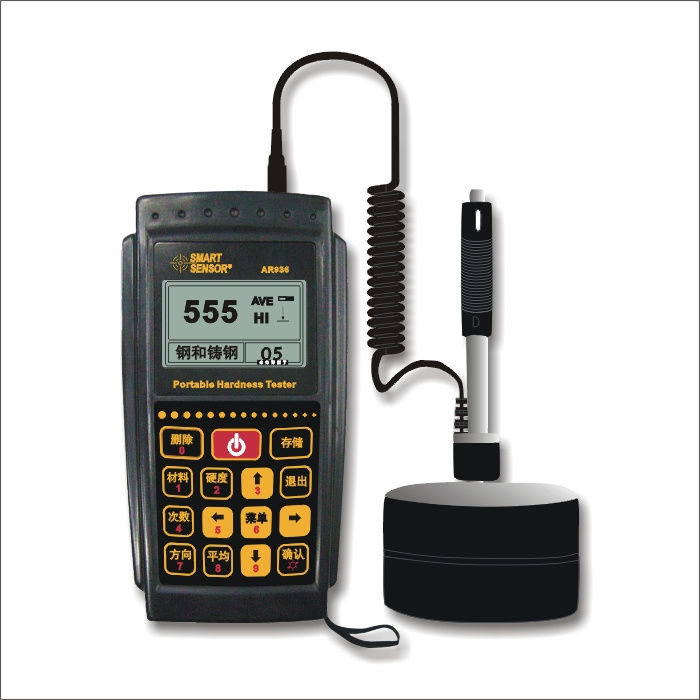

Hardness tester AR936
*Adopting Leeb hardness measuring principle, this unit can test the hardness of most metals.
*Large 160*80 lattice LCD display allows complete information and clear reading.
*All English display with menu indication makes the operation easy and convenient.
*Alternative white backlight display and USB plug facilitate the opeation in darkness and communication with PC for data exchange and configuration.
*The main unit is matchable with 7 striking fittings, capable of identifying the striking type automatically, and requires no further calibration after replacement.
*The unit can store up to 500 groups of date(impact times 32~1), in which each group contains information of single value, average value, measuring date, impact direction, impact times, material and hardness unit.
*With presetting of up and low limits, the unit alarm automatically if reading is beyond the limits, which facilitates massive measurement.
*Battery volume icon on LCD indicates the battery power and calibratable with software.
*When using D/DC type impact device for steel material hardness testing, the reading can be displayed directly without consultation of the table.
*Equipped with PC program, this software supports transmission of the measuring results, storage management, statistical analyzing, print and massive parameters setting to ensure higher quality and management.
*Professional and nice outline, smart, portable and reliable performace makes the unit operatable in rough environment, and immune from vibration, striking and elecmagnetic interference.
*4 AA alkaline batteries support continuous operation for more than 50 hrs. And automatical turn off function.
*Product Dimension: 150*80*38mm
GENERAL FEATURES & SPECIFICATIONS
Measuring rang 170-960HLD
Repeatability 6HLD
Hardness Unit HL\HB\HRA\HRB\HRC\HS\HV
Test Direction 360°
Accuracy ± 6HLD
Data Store Max 500
Display Matrix LCD (128*64DOT)
Backlight Selection √
LCD Backlight Function √
Low Battery Indication √
PACKING INFORMATION
Power 4*1.5V Battery
Product Net Weight 250g
Product Size 175x100x49mm
Packing Gift Box
|
SPECIFICATION |
|
|
*Measure range |
30~130 dBA
35~130dBC |
|
*Accuracy |
±1.5dB |
|
*Frequency response |
31.5Hz~8.5KHz |
|
*Resolustion |
0.1dB |
|
*Measure level |
30~80dB, 50~100dB, 60~110dB,
80~130dB, 30~130dB |
|
*Dynamic range |
50/100dB |
|
*Frequency weighting characteristic |
A/C |
|
*Time weighting |
Fast/Slow |
|
*Sampling rate |
20 times/second |
|
*Max memory record |
4700 |
|
*Microphone |
1/2 inch polarization capacitance microphone |
|
*Power |
4*1.5V AA battery or DC 9V adaptor |
|
|
|
|
PACKING INFORMATION |
|
|
*Packing |
Gift box |
|
*Accessories |
1). 4*1.5V AA battery
2). Manual (English version)
3). USB computer connection cable
4). Software CD
5). DC output wire
6). Sponge ball |
|
*Color |
Ivory |
|
*Dimension |
67*30*183mm |
|
*Weight |
147.5g (without batteries) |
|
*Quality per carton |
12pcs |
|
*Carton size |
52.5*45.0*34.0cm |
|
*G.W. per carton |
13.5kg |
