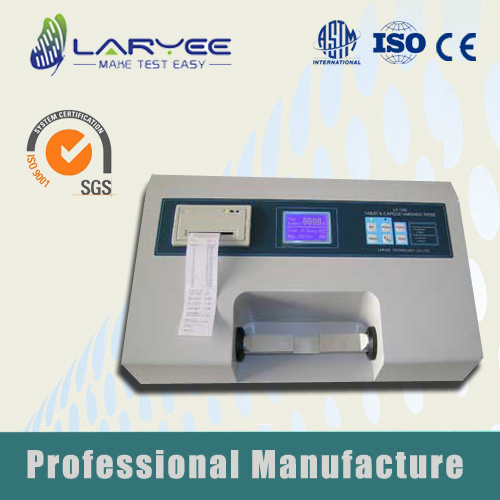

Introduction of LY-TC5 Tablet & Capsule Hardness Tester
1. This hardness tester is an ideal equipment to test the hardness of tablet and soft gelatin capsules.
2. It confirms to JB/T20104 standard.
3. This machine can reflect the standard of production craft as an important index for the quality control of tablet and soft gelatin capsules.
4. It is widely used on the science research area and medical field to guarantee the accuracy of clinical trail.
5. The high accuracy pressure sensor and the digital display can help you test more conveniently.
Specification:
1. The high accuracy pressure sensor can guarantee the testing accuracy.
2. It can press the tablet and soft gelatin capsules automatically.
3. This machine can test continuously.
4. High definition LCD indicate testing result, the user can have intelligentize operate according to the Screen tip.
5. Test method: Manual / automatic
6. Using computer control technology, with high Intelligence, powerful, more convenient. The system can press the specimen automatically, auto-indicate, auto-lock, auto-reset, auto-loop testing, auto- linearity error adjust, auto-fault diagnosis, auto-alarm.
7. High data handling ability, can Statistics/analysis/printing/indicate the testing data such as: Hardness of tablet and soft gelatin capsules, the max value, the min value, the average value, standard deviation, variation range.
8. Calculate the stroke of rewind automatically, save your testing time.
9. Measurement units conversion by an button: N-KG
10. With an function key that can delete the faulty operation.
11. Equiped modern mini printer.
12. The parameters can be preset at any time, either preset or real data is display on the LCD.
| Description | LY-TC5 |
| Hardness test method | constant speed & automatic |
| Test range | 2-200N |
| Resolution | 0.1N |
| Accuracy | ± 0.5% |
| Testing diameter | 2-40mm |
| repeated measure error | ± 1% |
| Testing qty of each group | ≤ 100pcs |
| measurement units | N, Kgf (1Kgf=9.81N) |
| Power supply | 220V, 50Hz |
| Dimension | 500mm*300mm*170mm
|
