Product Specifications
| Prod Model: |
PML |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

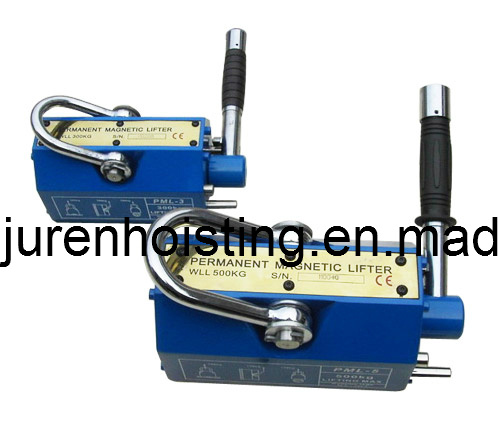

Permanent magnetic lifters model pml is mainly used for connecting component during lifting and handling operation. They can hoist moving iron block, cylindrical and other magnetic material. They are easy for operation, safe in handling, lightly and ingeniously structured. Hence they are widely used as hoisting devices in factories, docks warehouses and transportation industries. By using them, you can improveyour working conditions and increase your working efficiency.
Construction and specification
Model pml permanent magnetic lifter has strong magnetic path produced by NdFeB magnetic materials. On and off the magnetic path is controlled by turning the manual nozzle. There are shackles on the top of magneticlifting hoist for lifting, a veto slot on the holding face for holding cylindricalcomponent firmly.
Operations
1 during operation, you should clear away the components surface such as rustand burr. The centerline of lifter had better overlap with the centerline of component. Then place the magnetic lifting hoist on the face of component, turn the nozzle from"off" to "on" until "holding". Make sure that the security key on the handle is auto-matically locked, and then start to hoist.
2 during lifting and handing components, overloading is forbidden. Nobody is allowed to pass through under the component held by magnetic lifter. Componentstemperature and ambient temperature shall be between +80° C to -40° C. No strongvibration and impact.
3 when lifting and handling cylindrical components, keeping the cylindrical surface contacting the vee slot of lifter on two lines, the actual lifting capacity willgenerally be 30% of the rated lifting capacity.
4 when lifting and handling operation is finished, press down the bottom todisengage the security key from the security pin, then turn the handle "on" to "off"until "release". The lifter is now in the neutral condition, it can be taken awayfrom the component.
