Product Specifications
Prod Model: |
HART-RS232 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ambient Temperature: |
0 -50 Centigrade |
Compressive Strength: |
500 V AC Hart Bus and Serial Port (Uart, USB) |
Receiving Sensitivity: |
120 Mv, 500 Ohm Test Resistance |
Type: |
External |
Interface Type: |
USB |
Transmission Rate: |
33.6Kbps |
Product Description

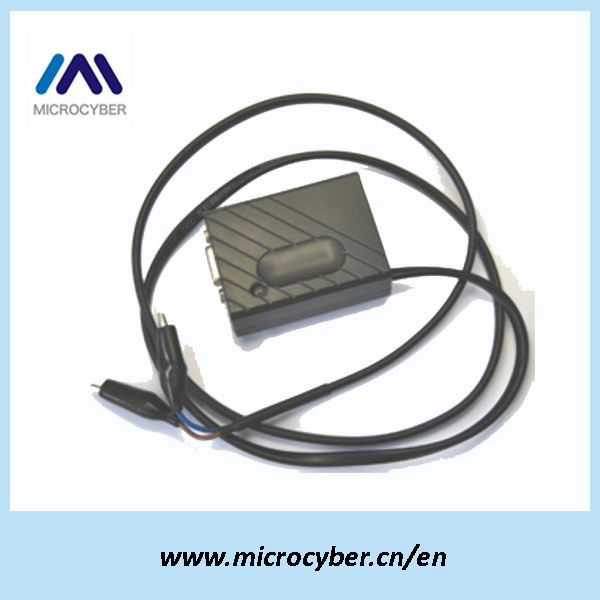

In the instruments industry, the traditional 4-20 mA analog transmitters are upgrading to the fieldbus with digital communication. HART fieldbus communication has digital communication capability with compatible analog signal. HART MODEM is a necessary and convenient tool for the analog products upgrading and signal exchanging in the control plant. We provide two kinds of HART modem. HART-RS232 is the converter for HART signal to RS-232 signal. HART-USB is the converter for HART signal to PC virtual series port.
Product characteristic:
According to the HART physical layer specification
Isolated transformer prevents the influence of earthing.
Voltage signal modulator/demodulator
Low power consumption designation
Powered by series port or USB port
Interface Type: dB9 female mount
Ambient Temperature: 0 ~ 50 ° C
Compressive Strength: 500 V AC HART bus and serial port (UART, USB)
Receiving Impedance: ≥ 5 K Ω, end-to-end
Output Signal VPP: 600 mV ≥ VPP ≥ 400 mV, 500 Ω load resistance
Receiving Sensitivity: 120 mV, 500 Ω test resistance
HART-RS232 is the protocol converter between HART device and configurator on PC.
Microcyber Inc. is established by Chinese Academy of Sciences. Based on fieldbus technique, the company engages in R&D, manufacturing, sales and engineering service of advanced industrial control systems, equipments, instruments and chips for industrial process control solutions.
As one of leading supplier and vender of fieldbus products, Microcyber mainly provides communication stack, communication controller chip (FF, PROFIBUS PA and HART), customized communication board (FF, PROFIBUS PA and HART), control configuration software, control system -- NCS4000 System, F/I converter, I/F converter, pressure transmitter with capacitance sensor or diffused silicon sensor (FF, PROFIBUS PA and HART) and temperature transmitter (FF, PROFIBUS PA and HART).
The company has a lot of experience in providing fieldbus products. Pressure transmitter, I/F converter and F/I converter have been registered in Fieldbus Foundation. Microcyber provides FF & PROFIBUS PA communication boards which are available in same hardware, and software outsourcing for supplier or manufacturer. Microcyber has supplied the communication boards to some manufacturers, such as EIM Controls Inc. And Dangdong Top Instruments Co., Ltd which are have registered in Fieldbus Foundation.
Also Microcyber is member of HART and Profibus foundation.
Microcyber Inc. is looking forward to the long-term smooth and close cooperation with you.
