Product Specifications
| Prod Model: |
C16A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Chip |
Product Description

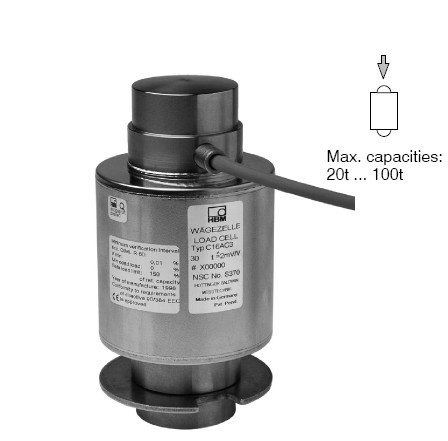

HBM C16A - Self-restoring rocker pin load cell
C16A.../20t...100t
C16A - Self-restoring rocker pin load cell - ideal for vehicle scales
The C16A is an analog load cell with maximum capacities from 20 to 100 t. This self-centering load cell provides a legal for trade accuracy of up to 5000 divisions (OIML D1, C3, C4, C5). The load cell's robust design together with the patented rotation stop makes the load cell especially fit for use in vehicle scales. Of course it offersIP68 degree of protection. The C16A load cell is optionally available with integrated lightning protection.
Key Feature(s)
Self-restoring function
Simple to install
Stainless steel materials, laser welded, IP68
Legal for trade verification up to 5, 000d (OIML R60) resp up to 10, 000 d (NTEP class III LM)
Optimized for parallel connection by corner pre-adjustment
Meets EMC / ESD requirements according to EN 45 501
Explosion proof versions according to ATEX 95 (optional)
Nominal load20 t / 30 t / 40 t / 60 t / 100 t Accuracy classD1, C3ApprovalsOIML, NTEP, Ex, GOS Protection class EMC approved Material Stainless steel
Option
Integrated surge protectors
