Product Specifications
| Prod Model: |
HC18 |
| Markets: |
North America,Oceania,Western Europe |
| Control Type: |
Mechanical |
| Brand: |
Haichuan |
| Usage: |
Motor |
Product Description

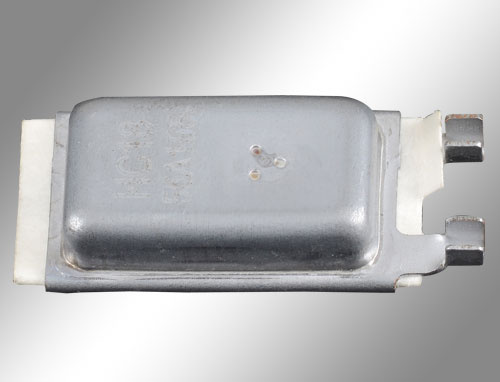

HC18 series are both temperature and current sensitive. They can protect the applications like motor or transformer from over heating or loading.
Special Features:
Fault conditions up to 60 amps
Compact and easy to install
Individually temperature calibrated and checked
Accurate trip off time can prevent motor from overheating
Both temperature and current sensitive
Terminals are optional and customized
Wires are optional and customized
Electrical Characteristics:
125VAC / 250VAC: 15A ~ 60A
12VDC / 24VDC: 15A ~ 60A
Technical Parameters:
Available with nominal calibration temperature from 80° C to 180° C
Tolerance code ± 5° C, ± 8° C
Trip off current range: 1 ~ 60A
Time check at T-ambient 25° C 4 to 10 seconds
Main Applications are as Follows:
Automotive motors
Ballast protection
Capacitor start motors
Split-phase motors
MiThermo Electrical Co., Ltd. is an integrated trading enterprise, which is selling various of high-quality thermal protections, thermostat, temperature switches, temperature sensors, thermal fuse, circuit breakers, thermistor, and other miniature thermal protectors.
ALL of the products have obtained VDE, UL, CQC or other related environmental certifications, both the product quality and the technical are in the leading position in the same industry. Products are mainly used in medium & small motor, coffee machine, car motor, LED power supply, generator, water pump, air compressor, washing machine, electric tool, ballast, transformer, rechargeable battery, heating pad, electric blanket, heater, heating tube and other devices, applying safe & reliable over-current and over-heat protection to the electrical components.
In order to provide all kinds of reliable circuit protection solutions to clients, company has set up a Customer Service Center specially. The professional engineer team of the center is composed of researchers and senior engineers with 30 years experience in electronic product development.
The purpose of MiThermo is "Professional Quality, Good Faith Services". And all the products are selling at home and abroad. With our proven technical strength and perfect management system, we believe that we can provide customers with high quality products and services.
