Product Specifications
| Prod Model: |
HCC-3501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key: |
12 Numeric Keys and 4 Function Keys;8 Function Ke |
| Key's Lifetime: |
>2, 000, 000 Cycles Per Key |
| Overall Size: |
(L*W*H) 137 Mm×98mm×26mm |
| Data Storage Life: |
>5 Years |
| Certification: |
ESD Level 4 |
| Type: |
Metal Pinpad |
Product Description

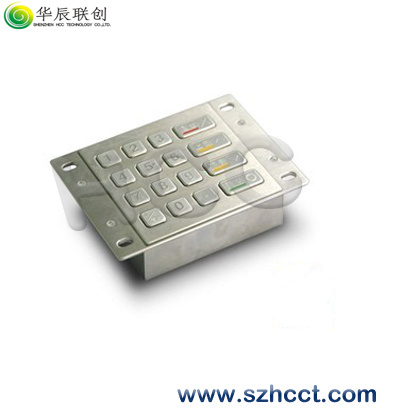

Metal Pinpad -- HCC-3501
General:
For Self-service devices such as info-kiosks, vending machine, and industrial devices like medical instruments, computer numerical controls (CNC), entrance guard systems and metering devices.
Algorithms:
PINBLOCK standards: IBM3624, ANSIX9.8, ISO9564-0/1/3, DIEBOLD, DIEBOLDCO, ECI2, ECI3, VISA, VISA3, IBM-OFFSET, VISA-OFFSET
MAC standards: ANSI X9.9, ANSI X9.19
DES, Triple DES
Approval
CE
ESD level 4 (Air Discharge: ± 15KV, Contact Discharge: ± 8KV)
Features:
Waterproof, dustproof, drill-proof, pry-proof
Tamper detection leads to erasure of keys and sensitive information
Proprietary key management system
Supports 4*PSAM cards (optional)
Supports XFS 2.0/3.03/3.10
Specifications:
12 numeric keys and 4 function keys
8 function keys expandable
Key's lifetime: >2, 000, 000 cycles per key
Force on keystroke: 2N~3.5N
Force on function keys: 3N~6N
Key's travel: >0.4mm
Data storage life: >5 years
MTBF: >100, 000 hours
Overall size: (L*W*H) 137 mm× 98mm× 26mm;
Front panel size: E3051-S: 87.5mm*91.5mm*1.5mm, E3051-M: 100mm*91.5mm*1.5mm, E3051-L: 100mm*100mm*1.5mm
Environmental:
Operating voltage: 4.75V~5.25V
Operating temperature range: -25~+65
Storage temperature range: -35~+75
Operating humidity ≤ 95% r. H (non-condensing)
Interface:
RS232: RJ45
Supports PS2 (optional)
| Keys | 12 numeric keys and 4 function keys |
| Key's lifetime | >2,000,000 cycles per key |
| Force on keystroke | 2N~3.5N |
| Force on function keys | 3N~6N |
| Key's travel | >0.4mm |
| Data storage life | >5 years |
| MTBF | >100,000 hours |
| Overall size | (L*W*H) 137 mm×98mm×26mm |
| Front panel size | E3051-S:87.5mm*91.5mm*1.5mm,E3051-M:100mm*91.5mm*1.5mm, E3051-L: 100mm*100mm*1.5mm |
