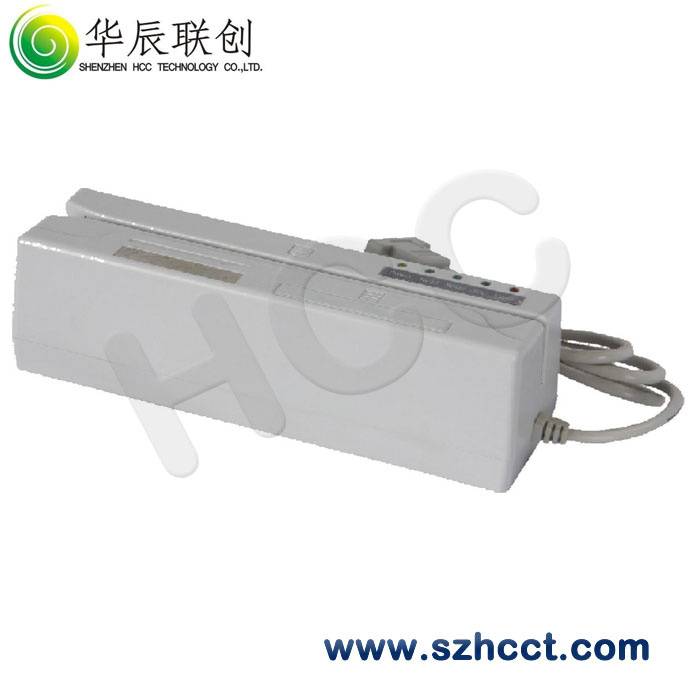

HCC406 Magnetic Stripe Reader/Writer
Product Specifications
| Prod Model: |
HCC406 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Read Only Speed: |
210 Bpi |
| Capacity: |
79 Characters (7 Bit Code) |
| Track: |
Track 1 |
| Power Input: |
12V DC, 800mA |
| Size: |
186 * 52 * 60 Mm |
Product Description
Feature
1. Manual swipe
2. Support reading / writing HICO/ LOCO (300~4000 Oe) magnetic cards
3. Support writing triple tracks in one swipe
4.12VDC working voltage, low power consumption
5. ISO 7811, 8484 (passbook) conformance
6. USB interface. (Virtual COM)
7. Operation responded by LED
8. Plastic cover
9. Software supports Microsoft Windows 98/ME/2000/XP/2003
|
Item |
Content |
|
Magnetic Card standard |
ISO7811 Track1&2&3, ISO8484 |
|
ISO 7811 |
Track |
Track 1 |
Track 2 |
Track 3 |
|
Recording density |
210 BPI |
75 BPI |
210 BPI |
|
Capacity |
79 characters
(7 bit code) |
40 characters
(5 bit code) |
107 characters
(5 bit code) |
|
|
Start / End Code |
% / ? |
; / ? |
; / ? |
ISO 8484
&IBM |
Track |
Track 1 |
Track 2 |
Track 3 |
|
Recording density |
(Not defined) |
210 BPI |
210 BPI |
|
Capacity |
107 characters
(5 bit code) |
107 characters
(5 bit code) |
|
|
Start / End Code |
|
;:/? ;:/< ;/? =/? ;/< |
;:/? ;:/< ;/? =/? ;/< |
|
Coercive Force |
300 Oe (Low Oersted) |
2750 Oe (Hi Oersted) |
40000 Oe (Hi Oersted) |
|
Encoding Speed |
15 ~ 140 cm/sec |
15 ~ 140 cm/sec |
15 ~ 120 cm/sec |
|
Read only Speed |
10 ~ 150 cm/sec |
|
Head Lifetime |
300,000 times pass |
|
Power Input |
12V DC, 800mA |
|
Operation temperature |
5 ~ 55 ºC |
|
Operation Humidity |
20 ~ 90 % RH |
|
Size |
186 * 52 * 60 mm |
|
Weight |
450 g |
|
Serial port settings |
2400,4800,9600(default), or 19200 baud,
None parity, 8 data bits, 1 stop bit |
