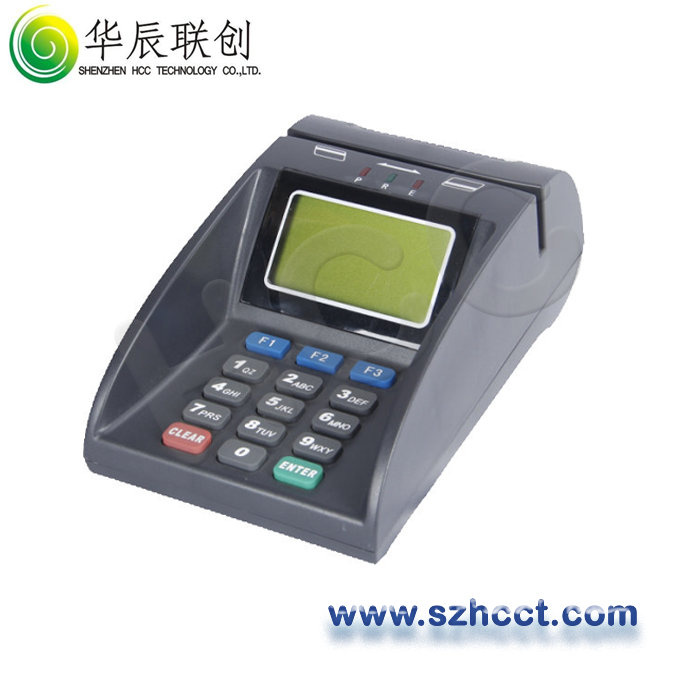

Hcc890 Multifunction E-Payment Pinpad
Product Specifications
| Prod Model: |
HCC890 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| USB Interface: |
USB Interface Supply DC+12V, or Fetch Power From U |
| Dimension: |
180X110X55mm |
| Weight: |
600g |
| Power Supply: |
RS232 Interface: P4 Power Connector Supply DC+12V, |
| Contactless Card Reader/Writer: |
ISO 14443 Type a/ B Protocol Keypad Encryption Des |
Product Description
General:
HCC890 is a multifunction Pinpad which perfectly combine the magnetic card reading, IC card / SAM card reading & writing, contactless card reader/writer and also customer personal information & password entry.
HCC890 has compact and refined appearance to save counter space, ergonomically design and user-friendly for operation, reliable performance and flexible application to ensure highly secure service. It is much suitable for bank network, insurance, medical treatment, tariff and POS system.
Feature:
15 key include general number input 0-9, ENTER , CANCEL and 3 other functional keys;
LCD graphic display and beep indication
With internal DES module (3DES module available), realize data transfer and authentication under encryption
Encryption support DUKPT & Master/Session Key, compatible with
ANSI X9.24
PC/SC, T=0 and T=1 compatible
Self-destroyed against violation
Provide DEMO drive program and tools for further development in Windows.
Specification:
| LCD graphic display | 128×64 dots, display 16×2 characters at optional |
| Keypad | 15 key, include 10 numeric key 0-9, ENTER , CANCEL and 3 function key |
| Magnetic reader | Bi-directional reading track 1/2/3 of magnetic card complied with ISO-7811/7816 ( Dual magnetic head design at optional) |
| IC card reader/writer | IC card wedge, also read memory card & CPU card, internal 1-4 SAM card wedge available at option. |
| Contactless card reader/writer | ISO 14443 Type A protocol |
| Keypad encryption | DES/3DES & DUKPT |
| Communication Interface | Standard RS232 interface or USB interface available at option |
| Power supply | RS232 interface: P4 power connector supply DC+12V,
(AC 90 ~ 250V)
USB interface:USB interface supply DC+12V, or fetch power from USB directly; |
| Dimension | 180×110×70mm |
| Weight | 600g |
| Working environment | -10ºC-60ºC, 20-98 RH, noncondensing |
Model Description:
890x1-x2x3x4x5
| Type | X1 | Interface | X2 | LCD | X3 | Magnetic Tracks | X4 | IC/PSAM | X5 | Contactless card |
890
E-Payment Pinpad | R | RS232 Series port | S | 16*2
Character | 4 | 1&2 tracks | 0 | NO | 0 | NO |
| U | USB | L | 128*64
Graphic | 5 | 2&3 tracks | 1 | Smart Card | 1 | Yes |
|
|
|
| 6 | 1&2&3 tracks | 2 | Smart Card and SAM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For example
HCC890 R S420 - Pin Pad, with RS232 series interface, 16*2 characters LCD, 1/2 magnetic strips reader, smart card reader, SAM module.
