Product Specifications
| Prod Model: |
HD-60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Output: |
Dual Output (AC/DC to DC) |
| Type Of Power Supply: |
Metal Case Power Supply |
| Output Type: |
Dual |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Input Voltage: |
AC85~264 |
| Energy Transmission: |
Dual Output |
| Brand: |
Dhecn |
Product Description
Features:
· High efficiency, high reliability
· Universal AC input / Full range
· Protections: Short circuit / Over load / Over voltage
· LED indicator for power on
· Fixed switching frequency at 54KHz
· 100% full load burn-in test
· 2 years warranty

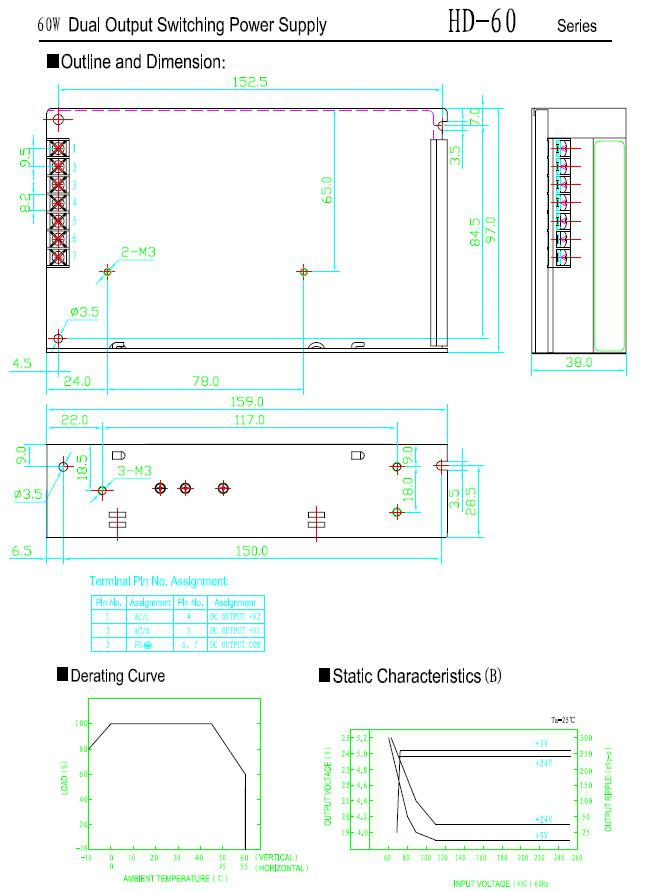

· Dimension: 159*97*38mm (L*W*H)

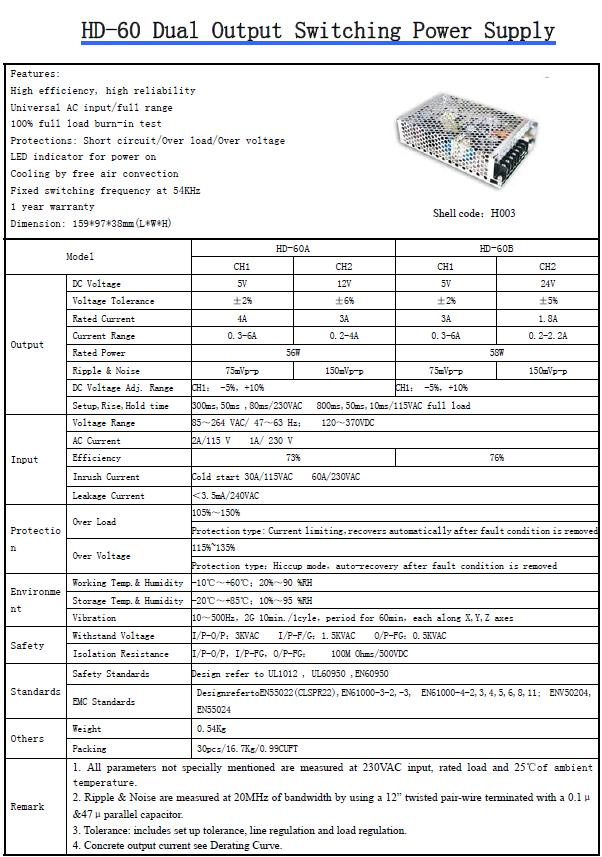

Specification:
1) INPUT
· Voltage Range: 85-264VAC / 120-370VDC, 47-63Hz
· AC Current: 2A/115VAC 1A/230VAC
· Inrush Current: Cold start 30A/115V 60A/230V
· Leakage Current: <3.5mA/240VAC
2) PROTECTION
· Over Load: 105%-135%; Shut down o/p voltage, recovers automatically after fault condition is removed.
· Over Voltage: 115%-135%; Hiccup mode, auto-recovery after fault condition is removed.
3) ENVIRONMENT
· Working Temp. & Humidity: -10º C~+60º C; 20%~90% RH.
· Storage Temp. & Humidity: -20º C~+85º C; 10%~95% RH.
· Vibration: 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X, Y, Z axes.
4) SAFETY STANDARDS
· Withstand Voltage; I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ /500VDC
· Safety Standards: Design refer to UL1012, UL60950, EN60950
· EMC Standards: Design refer to EN55022(CLSPR22), EN61000- 3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024
5) Type No Output Tol. R&N Eff.
HD-60A 5V, 0.3-6A +2% 75mV 73%
HD-60A 12V, 0.2-4A +6% 150mV 73%
HD-60B 5V, 0.3-6A +2% 75mV 76%
HD-60B 24V, 0.2-2.2A +5% 150mV 76%
