Product Specifications
| Prod Model: |
OPV1000-R1616 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Condition: |
New |
| Function: |
Video Switcher Matrix |
Product Description
Introduction

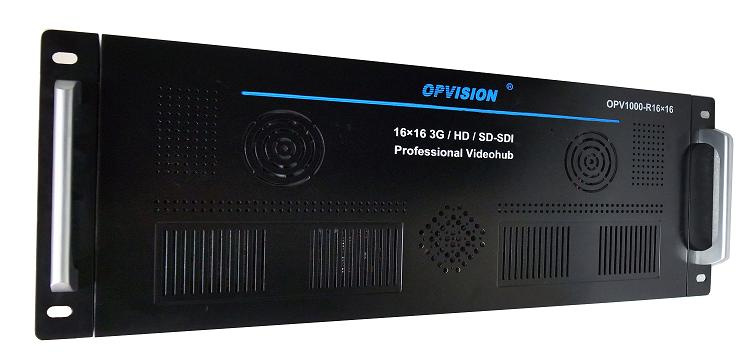

OPV1000-R1616 HD video Router accords with standard of SMPTE and supports1080i@50Hz/60Hz HD digital video switch at1.485Gbps. It can be compatibile with different rate of SD-SDI digital signals and DVB-ASI at 270 Mbps.
Self-adaptive cable equilibrium function makes OPV1000-R1616 can compensate amplitude loss for long distance transmission. At the output end, multiple bit rate clock recovery function can effectively remove the clock jitter, which caused by long cable, to ensure the transmission quality of the output SDI serial digital video signals.
The 4RU matt-painting processes all-metal chassis. The extra added heat radiator and internal structure makes wind flow stably and cooling performance better. Good internal air circulation also raises product stability. OPV1000-R1616 adopts RS232 to control by client software. (Windows Operating System) It supports 16*16 with redundant power supply; And provides stable and reliable signal switch safely. OPV1000-R1616 applies to Radio & Television and Video Monitoring industry wildly.
Feature
L 4RU Integration device, High Stability, Small size and save space, added interface protection on the rear Panel to avoid BNC damage;
L Signal Format; SMPTE 292M(1.485, 1.485/1.001Gbps), SMPTE 259M-A-C(143, 270Mbps), DVB-ASI at 270 Mbps;
L SDI Self-adaptive: When the input SDI rate changes, it detects matrix automatically and all relative SDI output changes accordingly.
L IN/OUT: 16 x16
L Self-Adaptive cable Equalization distance:
>100M for Belden 1694A type cable(or equivalent cable) at 1.485Gbps;
>200M at 270Mbps
L Clock Recovery: Clock recovery is adapted to process the output serial digital signals to extend transmission distance, reduce data loss in transmission to ensure the quality of digital signal.
L Multilayer circuit board design. RS-232 interface: It can be controlled by computer.
L Redundant power supply: On average 12V/4A @AC/DC Power Adapter.
L Response Speed: MS grade
Opvision is a company dedicated to provide fiber optical transmission solution with newest products using most advanced technologies. Our fiber optical transmitter and receiver can be both employed in broadcasting and multimedia application. The application is very broad and comprehensive including broadcasting and TV program transmission, multimedia display and monitor, military communication, video conferencing, security monitoring, intelligent transportation system, replay between studios and transmission center. Some other systems such as sports, satellite, sky-cam, surveillance, government and healthcare can also find our products useful in terms of both functionality and quality.
A large inventory of products with various specifications can meet different user demands and requests. On the basis of strong R&D and production capability, we can do OEM and made-to-order or customization.
