Product Specifications
| Prod Model: |
ZR710 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2.5inch |
| Water-Proof Function: |
IP65 Rate |
| High Recording Resolution: |
1280 X 720 |
| Support Max: |
32GB TF Card |
| Power Adapter: |
DC 5V 1A |
| Illumination Range: |
15m |
| Motion Detecte Distance: |
8m |
| High Quality: |
Yes |
| In Stock: |
Yes |
| Sample: |
Welcome |
| Technology: |
Infrared |
| Type: |
Video Camera |
| Sensor: |
CMOS |
| HDMI Format: |
720P |
| Kind: |
Autofocus Lens |
| Feature: |
High Definition |
| Effective Distance: |
10-30m |
| Sensor Size: |
1/4 inch |
| Remote Control: |
Without Remote Control |
| Style: |
Camera |
| Horizontal Resolution: |
1280 X 720 |
| Certification: |
CE,RoHS |
Product Description
Description:
* PIR Motion Detect Record with audio & video, time/date stamped
* Camera:5.0 Mega Pixel, 1/2.5 Color CMOS Sensor
* LED light, Camera, DVR, 3 functions are integrated into one unit
* High recording resolution:1280 X 720/640X480 (optional) pixel, AVI format video.
* One strong light:10 wattage, illuminate at night for 30m distance
* Support max 32GB TF memory card, when TF card is full, it will auto overwrite front recordings
* 90 degree detection area, 7m to 15m detection distance
* AV Out to see more clear pictures on TV by AV cable
* IP65 Rate water-proof function
* 24 hours Standby with power supply
Use for home, school, gabage, supermarket security!
Specification:
Key Features & Specification

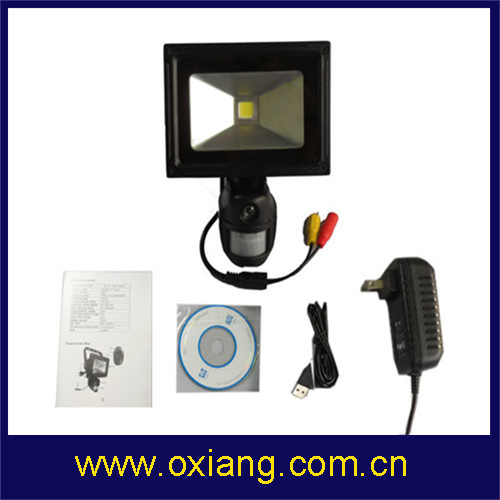

Motion Activates Camera & Security Light
Lamp, Camera, DVR, 3 functions are integrated into one unit
High recording resolution:1280 X 720 pixel or 640X480 pixel optional.AVI format
PIR Motion detect and record with audio&video, time&date stamped
One strong light with 10 wattage, illuminate 15 meters distance
Save recordings up to max.32GB TF card, when TF card is full, it will auto overwrite front recordings
90 degree detection area, 8m detect distance
AV out to view more clear pictures on TV or other monitor by AV cable
IP 65 rate Water-proof function
USB2.0 for PC connection
Camera
Image sensor:1/2.5 color COMS
COMS image sensor.5.0 Mega Pixel color or 0.3Mega Pixel.
Camera view angle:90 degree
Exposure mode:5p glass lens
Motion activates record video
Automatic White balance & exposure
Light
One strong lamp with 10 wattage
Illumination range:15 meter
Motion activates night light
Operation:
1, Taking images:Insert the disk into computer, open "my disk" in "my computer", install the two pieces of software in the disk and then connect the DVR(without TF card) into computer, you will find a standard camera, open it, you could take photos manually and save the images into your PC.
2, Time setting:Insert TF card into DVR, connect it into PC, open " my computer " there is a moveable disk, open it and then open "my disk" in "my computer "there is a "time.TXT".Copy the file into the moveable disk, set the correct time and exit.
3, Video recording:Insert the TF card into DVR, connect it with power supply or Li-battery (there is a switch button at the back of DVR), select it first and then hang on it to the entrance (outdoor), can work automatically.
4, Checking the videos:Connect the DVR(with TF card) into computer, open "the moveable disk" in "my computer", press the first video for continuous looking, 10s to one file.
Warranty &Return Policy
1.We provide 1 year warranty.
2.All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3.The buyer is responsible for all shipping costs incurred.Please contact us before leaving any negative or neutral feedback.
4.We will work with you to solve any problems.
About us:
Ouxiang International Limited is a professional manufacturer of consumer electronic products.Our first U.S.Cell phone plant was established in 1996.With the development of electronic commerce market, we continue to expand very quickly.Until 2009, Ouxiang has already had five factories, which mainly concentrate in rearview mirror, Bluetooth car kits, Solar multifunction generator, and GPS tracker positioning systems.And Ouxiang team can develop, design, produce and sell at the same time.
Products:
Mini Sport DV, PIC Camera&Recorder, Police DVR Recorder, GPS tracker, BlueTooth Rearview, Bluetooth Car Kit, Car Parking Sensor, Car DVD GPS etc.
Work temperature |
-30 to +50 degree |
Support max. |
32GB TF card |
Video format |
AVI |
Record pixel |
1280 x 720 or 640x480 |
FPS/Second |
24fps |
Video record time |
10s/pc |
Camera visual angle |
90 degree |
One strong lamp |
10 wattage |
Illumination range |
15m |
PIR motion detect range |
6m |
time/date stamp |
yes |
Water-proof |
IP65 |
AV OUT |
PAL/NTSC |
