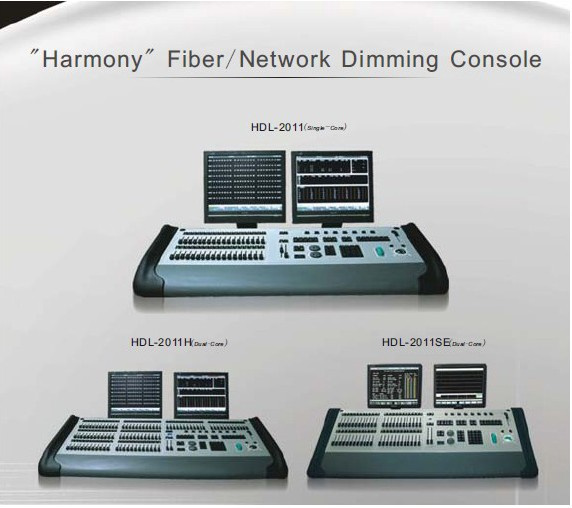

HDL "Harmony" consoles are the newest Network console, it has excellent features such as: Numerous channels control (2048), Network console function, dimmer rack reporting function, huge sub master (96 per page), also have many advance functions: Double embedded main board for real time backup, Wi-Fi wireless Network function for PDA remote control, SMPTE and MIDI Port, support color change and so on.
1. "Harmony" PRO Network Console family members:
HDL-2011S "Harmony" Optical Fiber/Network console,
HDL-2011SE "Harmony" Optical Fiber/Network console,
HDL-2011H "Harmony" Optical Fiber/Network console,
HDL-2011 "Harmony" Optical Fiber/Network console.
2. Features:
A. Channel: 256-2048; Cue: 2048; FX: 100; Group: 2048; Macro: 1000
B. Sub master: 36-96 sub master per page, 4 Pages totally
C. Effect step running mode: Forward, Reverse, Bounce, Random
D. Sub master Mode: Independent, inhibit, Normal
E. Quick Power on in less than 20 seconds
F. Double embedded main board for real time backup
G. Main and backup console can synchronize programming and operation for 100% real time backup
H. Flash memory for long life Data storage
I. Double 640× 480 VGA Screen, Friendly interface, simple operation
J. Integrated LCD display(only 2011S),
K. Various data storage way
-- Built-in Flash memory
-- External USB Disk
-- Network backup, able to store data to PC server
-- Master/slave data synchronizing backup
L. Wireless for PDA remote control, convenience for preview show work
M. Cue, A/B Cue, Sub master, Effect, Group, Color changer control, Macro, profile functions
N. Able to edit/modify, run, view Cue, with Manual Cue, blank out functions
O. Able to edit/modify, run, view effect
P. Able to edit/modify, run, view sub master
Q. Dimmer patch function, up to 2048 dimmers
R. Cue is able to calls Macro, effect, custom Cue fade profile
S. Controllable color changer
T. Able to view real-time status of dimmer rack
U. Wheel+ tracking ball
V. Network DMX and DMX 512-1990 signal output
W. Support HDL-NET, Art-Net, ACN Protocol
X. DMX512-1990 signal with optoelectronic-isolated output
Y. Data lock prevent unexpected modification
3. HDL Economical Type console
HDL-2012"Harmony" console
4. Features:
A) Channel: 24-224; Cue: 200; FX: 99, step: 50; Two playback of effect
B) AB Cue, Auto cue
C) Two special effect playback fader
D) Effect step running mode: Forward, Reverse, Bounce, Random
E) Sub master Mode: Independent, inhibit, Normal
F) Time setting: Cue running time: 0-51 minutes, effect step time: 0-5 minutes
G) Interface: 320 x 240 LCD display
H) Data storage: Built-in Flash memory, External memory card
I) DMX signal with optoelectronic-isolation
J) System lock function, prevent error operation
5. HDL small channel Economical Type console
HDL-2013-24"Harmony" console,
HDL-2013-12"Harmony" console,
6. Features:
K) Channel: 12 and 24
L) AB Cue
M) Two effect, 50 step
N) 12 Sub master (HDL-2013-12)
O) 24 Sub master (HDL-2013-24)
P) interface: 2x20 char LCD display
Q) Data storage: Built-in Flash memory, External memory card
R) DMX signal optoelectronic-isolation
S) System lock function, prevent unexpected operation
