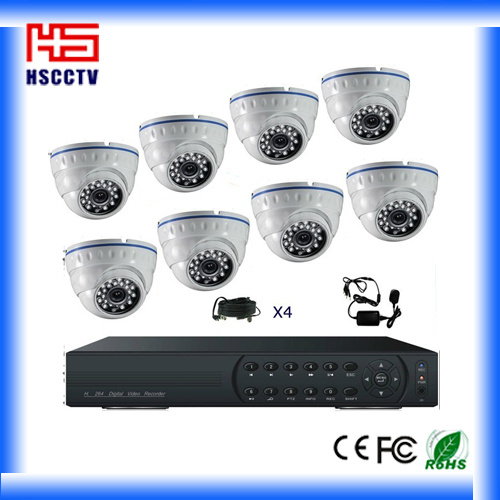

HDMI 8CH DVR system 36IR LED CCTV kit
1. HDMI 8CH DVR system, 8CH AUDIO DVR system
2.8PCS waterproof camera CCTV DVR,
A: 1/3 Sony 700TVL, 36PCS IR LED, 2.8-12mm lens(hs-5733)
3.1PC 8CH D1 H. 264 DVR HSD 9408HD
4.8PCS 20M video+power cable
5.1PC 12V 10A power adaptor with 1-8cable splitter
6. Support 1*2TB HDD
7.8CH D1 DVR, 8CH AUDIO
8. Support OSD
If you choose DVR with out HDMI, price will be US$50 less per set.
Shenzhen Huishi Electronics Co., Ltd is Chinese factory of CCTV camera and camera board over 5 years. We provide IR Waterproof Camera, Dome Camera, CCD camera, board camera, security camera, Box CCTV Camera, High speed dome Camera, DVR, and so on
OEM, 2-5 days leadtime, 2 years warranty, lifetime maintain. NO MOQ. Sample order is welcome.
Our Service:
(1) Prompt reply: Your inquiry related to our products or price will be replied within 24 hours.
(2) OEM Service: We offer customized options for our products, and customer's designed LOGO printing is available.
(3) Quality Control: All products we sold are 100% strictly selected and tested by our QC department.
(4) Warranty: We offer 2 years product warranty...
|
Model |
HSD9408HD |
|
|
System |
Main Processor |
High performance embedded microprocessor HI3515 |
|
Operating System |
Embedded LINUX |
|
System Resources |
Pentaplex, function: live, recording, playback, backup & remote access |
|
User Interface |
GUI, on-screen menu tips |
|
Display |
1/4/8/9 |
|
Video |
Video Standards |
PAL 625 line,50 f/s; NTSC 525 line,60 f/s |
|
Video Compression |
H.264 main profile |
|
Video Recording |
D1/CIF/QCIF |
|
Encode capacity |
50/60fps(D1)+200/240fps(CIF) |
|
Motion Detection |
Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording, PTZ movement, tour, alarm, email, snapshot & FTP |
|
Audio |
Audio Compression |
G711A |
|
Two Way Audio |
Support |
|
Record & Playback |
Recording Mode |
Manual/Alarm/Video Detection/Continuous |
|
Playback |
1~16CH playback simultaneously |
|
Search Mode |
Time/Date, Alarm, Motion Detection & exact search(accurate to second) |
|
Storage & Backup |
Space Occupation |
Audio 28.8MB/H ;Video 25~450 MB/H |
|
Record Storage |
Local Hard disk and Network |
|
Backup Mode |
Network download/Flash stick/movable HDD/SATA HDD/DVD-RW |
|
Interface |
Video Input |
8 CH |
|
Video Output |
1 BNC, 1 VGA |
|
Audio Input |
8CH |
8CH |
|
Audio Output |
1CH |
1CH |
|
Alarm Input |
8CH |
|
Alarm Output |
1CH |
|
Net Interface |
RJ45(10M/100M) |
|
PTZ Control |
1 RS485 |
|
USB Interface |
2 USB2.0 |
|
Hard Disk |
1 SATA ports(Max 2*3048G) |
|
Environmental |
Power Supply |
12V/2A |
|
Power Consumption |
<10W(not including hard disk) |
|
Working Temperature |
0°C~+55°C |
|
Working Humidity |
10%~90% |
|
Atmosphere Pressure |
86kpa~106kpa |
|
Dimension |
295MM(width)* 220MM(length)* 45MM(height) |
|
Weight |
2.2KG |
