Product Description
Product Description

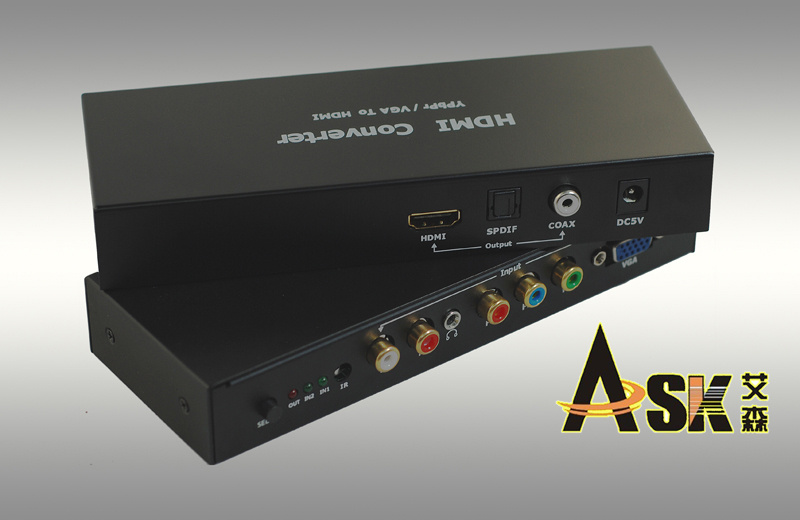

Brief introduction of VGA/YPbPr Converter
The HDCRGB0201 switcher use single source with VGA port or single source with YPbPr component accessing to single sink with HDMI port. The switcher allows RGB signal to be converted easily to TMDS signal.
Features of VGA/YPbPr converter
1. One YPbPr input.
2. One VGA input.
3. R/L analog audio input. (can't be used with stereo Mini-Jack audio at the same time).
4. 3.5mm Stereo Mini-Jack audio input. (can't be used with R/L audio input at the same time).
5. One HDMI signal output.
6. Support input up to 1080P via component.
7. Support VGA input: VGA@60, VGA@75, XGA@60Hz, XGA@75, SXGA@60Hz, SXGA@75Hz, SVGA@60, SVGA@75, 1280X768@60.
8. HDMI output resolution: 720P/ 60Hz.
9. Adaptive PAL / NTSC standard.
10. LED indication: When source or sink is working, LED relative to is light.
11. Inputs can be switched with the IR remote control, also can be controlled by button.
12. Installs in minutes
13. Need DC5V/2A power supply
Operating and Connecting of VGA/YPbPr to HDMI Converter:
1. Connect VGA cable from source devices with VGA port into the switcher's input.
2. Connect component calbe from source devices with RCA port into the switcher's input.
3. Connect HDMI calbe from sink device with HDMI input port into switcher's output.
4. Connect 5V power supply to the HDCRGB0201 switcher.
|
SPECIFICATION |
|
Name of the product |
VGA/YPbPr to HDMI Converter |
|
Input Signal Support |
CVBS and AV |
|
Support VGA output |
800× 600@60HZ; 1024× 768@60HZ; 1280× 1024@60HZ |
|
Support resolution up to |
1250lines |
|
Max refresh rate |
75HZ |
|
Input Video signal |
0.5~2.0Volts p-p |
|
Output video signal |
-0.35~0.7Volts p-p |
|
Max working current |
800mA |
|
Power adapter format |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
|
Working Temperature Range |
-15 to +55º C |
|
Working Moisture Range |
5 to 90%RH (No Condensation) |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p |
|
Power adapter format |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/4A |
|
Operating Temperature range |
(-15 to +55º C) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension (L x W x H) |
178x65x27 (mm) |
|
Net Weight |
390g |
|
Warranty |
1 Year |
|
Power Supply |
5V DC@2A |
|
AC Power Adapter |
US standard, UK standard and so on |
|
Regulatory Approvals |
ROHS, CE, FCC |
|
Note: Specifications are subject to change without notice. |
