Product Specifications
| Prod Model: |
HDMICAT60TX&RX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hdcp1.2: |
Perfect Compatibility |
| 1080p 60Hz: |
Double Cat |
Product Description

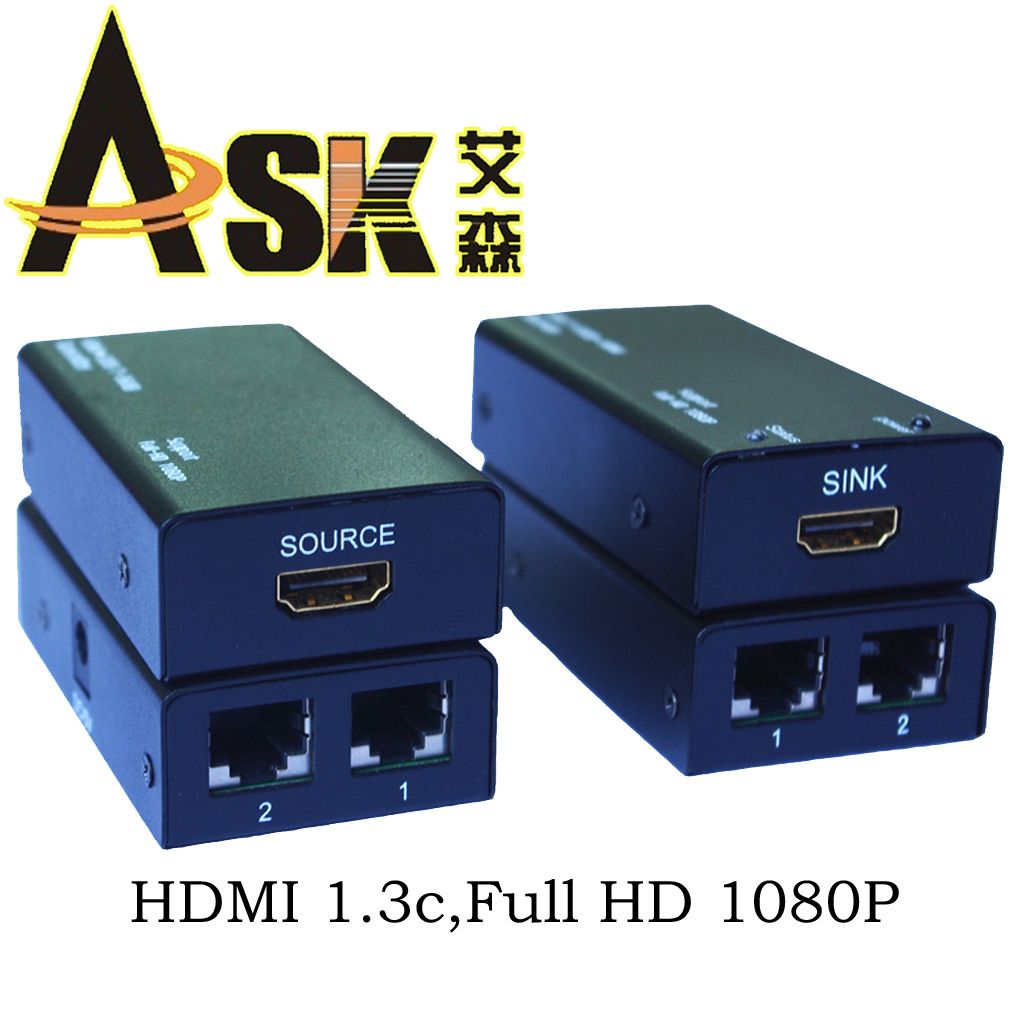

HDMI Extender 60M
The HDMICAT60RX&TX Extender use double cat-5E or cat-6(recommended) cables up to 60 metres instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
Support HDMI 1.2 protocol
HDCP 1.2 protocol compliant
Support video input: 24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I
Signal transmission: Double cat-5e or cat-6(recommended) cables up to 60 metres instead
Of HDMI calbes are connected between TX and RX Extender.
Support video output: 24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I
Support CEC
Audio format support: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
LED indication: When power is supplied or device is working, LED relative to is light.
Support up to 20metres AWG26 cable length between extender and source & sink device
No loss of quality
Installs in minutes
Need DC5V/2A power supply
HDMI Extender 60M
SPECIFICATIONS: HDMICAT60RX&TX
Length of CAT-6 cable between Rx and TX...Up to 60 metres
HDMI Input...24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I
Support audio format input...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output...24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I
Support audio format output...LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth...165MHz
Max baud rate...4.95Gbps
Input Video signal...0.5~1.5Volts p-p
Output DDC signal...5Volts p-p (TT1L)
Input/Output HDMI1.3 cable distance...<=20m AWG26 HDMI 1.3 standard cable
Max working current...800mA
Power adapter format...Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/2A
Operating Temperature range...(-15 to +55)
Operating Humidity range...To 90%RH (No Condensation)
Dimension (L x W x H)...82x44x22 (mm)
Weight...200g
HDMI Extender 60M
| HDMICAT60TX&RX HDMI Extender by 2CAT cables | 1.Perfect compatibility
2.Extend 60M-120M by CAT5E/6/7
3.Up to 1080p/60HZ
4. Inp & out sink HDMI Cable up to 20M |
