Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Housing: |
Steel |
| Color: |
Black |
| Size: |
86*46*25mm |
| Gross Weight: |
0.4kg |
| Video Format: |
HDMI |
| Player Accessories: |
HDMI Cable, HDMI TV |

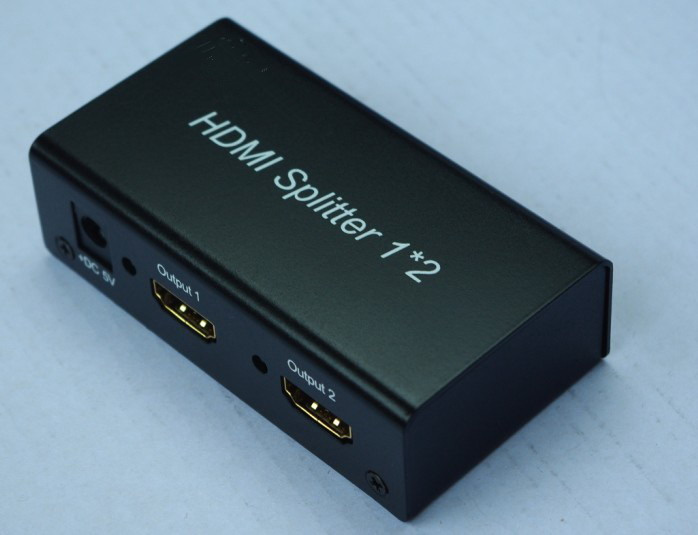

Product Description
FEATURES
L One HDMI 1.3 input signal split to two HDMI 1.3 sink devices
L HDCP 1.2 protocol compliant
L Support CEC
L Support deep color 30bit, 36bit
L Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
L Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
L Support signal retiming
L Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
Output up to 25metres AWG26 cable length
L No loss of quality
L Installs in minutes
L Need DC5V/1A power supply
Operating and Connecting:
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x2 Splitter.
SPECIFICATIONS: HDSP0102M
HDMI version...HDMI 1.3b
HDCP version...HDCP1.2
HDMI resolution...24/50/60fs/1080p/1080I/720p/576p/576I/480p/480I
Support video color format...24bit/deep color 30bit, 36bit
Support audio format...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth...225MHz
Max baud rate...6.75Gbps
Input/Output TMDS signal...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal...5Volts p-p (TTL)
Input cable distance...15m AWG26 HDMI 1.3 standard cable
Output cable distance...25m AWG26 HDMI 1.3 standard cable
Max working current...500mA
Power adapter format Input...AC (50Hz, 60Hz): 100V-240V; Output: DC5V/1A
Operating Temperature range...(-15 to +55C)
Operating Humidity range...5 to 90%RH (No Condensation)
Dimension (LxWx H)...86x46x25 (mm)
Weight...125g
