Product Specifications
| Prod Model: |
YT-HDSP108N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
280X158X25 (Mm) |
| Power Supply: |
DC12V/3A |
| Weight: |
0.87kg |
| Color: |
Black |
| Max Bandwidth: |
340MHz |
| Max Baud Rate: |
10.2gbps |
| Usage: |
Video |
| Package: |
Iron Box |
| Type: |
AV Devices with HDMI Interface |
Product Description

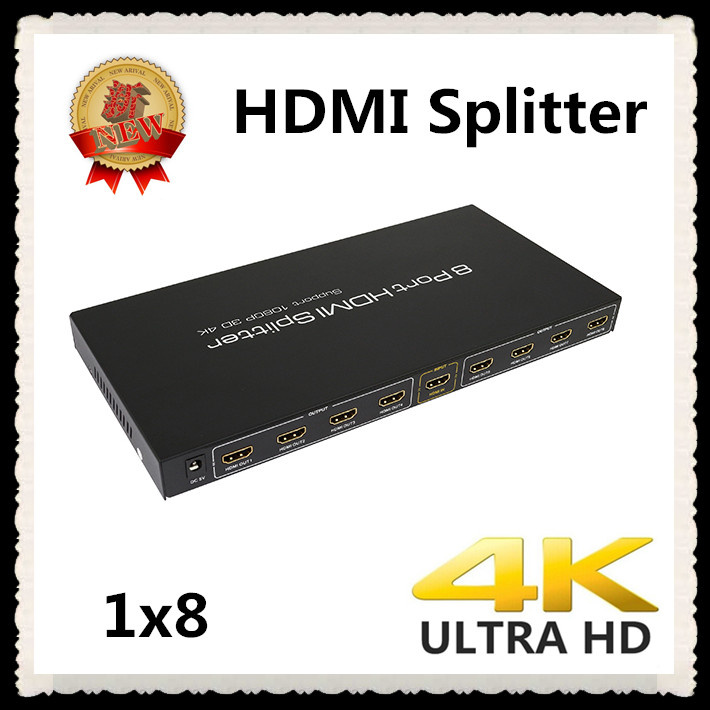

The 1X8 HDMI Splitter that supports Full HD 3D&4Kx2K uses a single HDMI source, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eightHDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES:
Support Full HD, Full 3D
Support 4K*2K resolution
Support CEC
Support deep color 30bit, 36bit, 48bitl Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/trueHD/LPCM7.1/DTS/AC3
/DSD/HD(HBR)
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length,
Output up to 20metres AWG26 cable lengthl No loss of quality
Installs in minutes
Need DC12V/3A power supply
Operating and Connecting:
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 12V power supply to the HDMI 1X8 Splitter.
SPECIFICATIONS:
HDMI version...HDMI 1.4V
HDMI resolution...24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Support video color format...24bit/deep color 30bit, 36bit, 48bit
Support audio format...DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD HD(HBR)
Max bandwidth...340MHz
Max baud rate...10.2Gbps
Input/Output TMDS signal...0.5_1.5Volts p-p(TTL)
Input/Output DDC signal...5Volts p-p (TTL)
Input cable distance...≤ 15m HDMI AWG26
Output cable distance...≤ 20m AWG26 HDMI standard cable
Max working current...2A
Power adapter format...Input: AC (50Hz, 60Hz) 100V-240V; Output: DC12V/3A
Operating Temperature range...(-15 to +55 Centigrade)
Operating Humidity range...5 to 90%RH (No Condensation)
Dimension (L x W x H)...280X138X25(mm)
Weight...871g
Notes:
Please use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Please hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Please turn the power off when the machine is not used for long time.
6. Please do not open the cover and do not touch the inside parts.
7. Please use the original factory power adaptor.
|
Serial NO |
Trouble Description |
Cause and Ways to deal with |
|
1 |
Non-Power-Connected |
1,Check if the power adaptor head is truly and correctly inserted the power socket.
2,Check the power switch if it is in on status. |
|
2 |
No Picture |
1,Please to make sure that the TV is on and has been connected with the machine.
2,To check if the signal source is on and well connected.
3,Check the system connection quality.
4,Check if the line is all good quality.
5,Check the cable quality |
|
3 |
Obscure Picture |
1,To try again to connect the cable to be free from the unsuccessful connection.
2,HDMI Cable Quality |
