Product Specifications
| Prod Model: |
YDN-EM2212H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
HDMI /VGA |
| Output: |
DVB-T/DVB-C/ATSC-T/ISDB-T RF |
| Type: |
Radio Signal Modulation |
Product Description

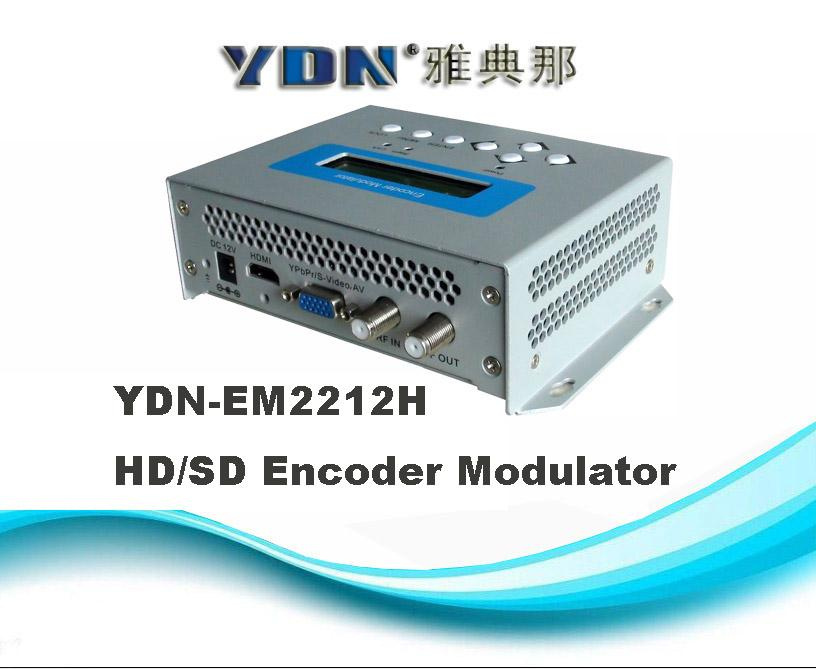

YDN-EM2212H encoder & modulator allows audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG2/4 encoding and DVB-T/DVB-C/DMB-T/ATSC-T/ISDB-T modulating to convert audio/video signals to DVB-T/DVB-C/DMB-T/ATSC-T/ISDB-T RF out in the frequency range of 30~960MHz.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signal is to be received by a DVB-T/DVB-C/DMB-T/ATSC-T/ISDB-T standard TV, DVB-T/DVB-C/DMB-T/ATSC-T/ISDB-T STB etc.
Technical Specifications
Encoding section
HDMI:
Video Encoding: MPEG4 AVC/H. 264
Interface: 1*HDMI
Resolution: 1920*1080_60p, 1920*1080_50p;
1920*1080_60i, 1920*1080_50i;
1080*720_60p, 1080*720_50p;
Bite Rate: 0.500-19.500Mbps
Audio Encoding: MPEG1 layer II(MPEG2-AAC MPEG4-AAC available)
Sample tate: 48KHz
Bite rate: 64, 96, 128, 192, 256, 320, 384kbps
Ypbpr/S-video9(with an adapter to VGA)
Video Encoding: MPEG4 AVC/H. 264
Interface: 1*ypbpr/1*s-video
Resolution:
;
Ypbpr: 1920*1080_60i, 1920*1080_50i;
1080*720_60p, 1080*720_50p;
Bite Rate: 0.500-19.500Mbps
Audio Encoding: MPEG1 layer II(MPEG2-AAC MPEG4-AAC available)
Interface: 1*stereo/mono
Sample tate: 48KHz
Bite rate: 64, 96, 128, 192, 256, 320, 384kbps
System:
Management: Local control: LCD+ control buttons
Language: English
LCN insertion: Yes
Update: JTAG
General:
Power supply: DC 12v
Dimensions: 153*110*50mm
Weight: <1Kg
Operation Temperature: 0-45
Modulating section
DVB-C QAM
Standard: J. 83A(DVB-C), J. 83B, J. 83C
MER: >=42dB
RF frequency: 30-960MHz 1KHz step
RF output level: -16~-36dBm (71-91dbµ V), 0.1db step
Symbol rate: 5000-9000ksps
J. 83A J. 83B J. 83C
Constellation 16/32/64/128/256QAM 64/256QAM 64/256QAM
Bandwith 8M 6M 6M
Modulating section:
DVB-T:
Standard: DVB-T COFDM
Bandwith: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
Code rate: 1/2, 3/4, 5/6, 7/8
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission mode: 2K, 8K
MER: >=42dB
RF frequency: 30-960MHz 1KHz step
RF output level: -16~-36dBm (71-91dbµ V), 0.1db step
