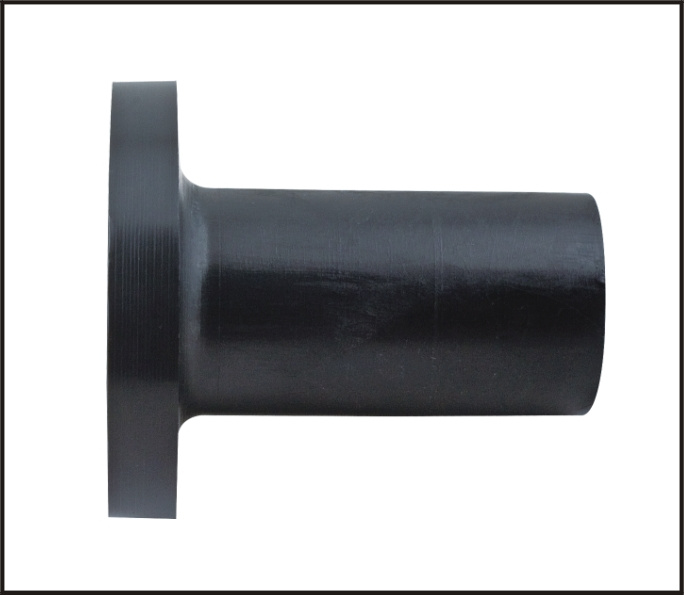

HDPE Pipe Fitting for Flange Adaptor

Product Specifications

Prod Model:	DN20--1000mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Black
Application:	Gas Water Oil Pipe Pitting
Conection:	Butt Fusion
Life Span:	50 Years
Model No.:	20*1000mm
Material:	Plastic
Type:	Welding Flange
Standard:	GB
Manufacturing Way:	Forging

Product Description

Product Description:

1. Name: Butt fusion Flange Adapter
2. Series: PE80, PE100
3. Type:SDR11(PN16) SDR17(PN10)
4. Size: DN20--1000mm
5. Material: Borouge
6. MOQ: 1 Piece

1. It is used for connecting pipes of all specification which have the same materials and the same SDR system
2. It possesses reliable connectivity, high interface strength, good airtight performance, and stable welding performance.
3. It is easily welded and operated, and conveniently used.
4. It is not easily affected by changes in environment temperature or human factors.
5. The hidden spiral heating wires buried inside can effectively resist oxidation and rust corrosion, ensuring stable welding performance.
6. The cost of equipment investment and maintenance is low.

Advantage of HDPE Fittings:
Light weight
Flexibility
Chemically Inert
Resistance to Abrasion
Smooth surface
Corrosion resistance
Frost & rodent resistance
Hygienic safety
Easy & quick installation
Company profile:
Chengdu Lezhifeng Trading Co., Ltd is a company specialized in PE plastic fitting production and sale, mainly responsible for the international businesses of Chengdu Senrui Pipe Co., Ltd. (www.cdsrgy.com/index.asp). Up to now, it has built a cooperative relationship with several large-scale enterprises as PetroChina Kunlun Gas Co., Ltd, Xinao Gas, Chongqing gas group, China Gas, and China Huayou Group etc and has accumulated many successful experiences for dozen years.
We will try our best to meet all the customers requirements and welcome all clients to visit our company and cooperation with us.

Specifications φD	φD1	L	A	B	Item Number
20	44	83	62	7	LZF-20
25	44	83	61	8	LZF-25
32	67	83	62	10	LZF-32
40	77	78	61	12	LZF-40
50	87	88	71	12	LZF-50
63	101	88	70	12	LZF-63
75	121	94	75	13	LZF-75
90	137	98	76	18	LZF-90
110	158	106	81	18	LZF-110
125	158	130	103	21	LZF-125
140	187	128	99	22	LZF-140
160	212	135	104	26	LZF-160
180	212	137	101	29	LZF-180
200	268	154	113	34	LZF-200
225	267	144	108	29	LZF-225
250	320	156	120	29	LZF-250
280	323	168	128	35	LZF-280
315	370	173	133	33	LZF-315
355	432	173	132	33	LZF-355
400	482	182	132	32	LZF-400
450	525	185	129	47	LZF-450
500	580	211	144	47	LZF-500
560	685	180	125	47	LZF-560
630A	685	205	145	50	LZF-630A
630B	720	205	145	56	LZF-630B
710	800	185	110	56	LZF-710
800	905	185	110	56	LZF-800
900	1005	185	110	56	LZF-900
1000	1100	185	110	56	LZF-1000
