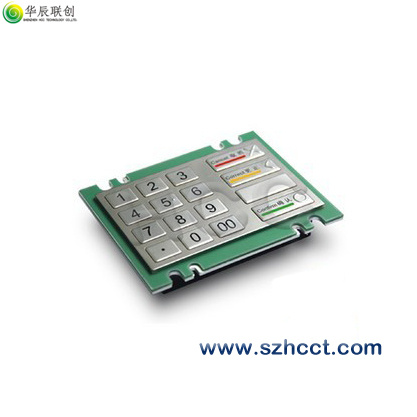

He-6020 Encryption Pin Pad (PCI2.0 EPP)
Product Specifications
| Prod Model: |
HE-6020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key's Lifetime: |
2, 000, 000 Cycles Per Key |
| Force On Keystroke: |
2n~3.5n |
| Force On Function Keys: |
3n~6n |
| External Power Supply Voltage: |
10V~35V |
| Certification: |
PCI 2.X Security ;ESD Level 4 |
| Type: |
Security |
| Currency Detector Type: |
Encryption Pin Pad |
| Queue System Type: |
Encryption Pin Pad |
| Data Collector Type: |
Encryption Pin Pad |
Product Description
Overview:
For financial equipment such as ATM, CDM, CRS, recharge and bill payment devices; As well as self-service application such as info-kiosks, vending machines, lottery machines, gas stations, etc.
Feature:
Waterproof, dustproof, drill-proof, pry-proof, audio monitoring prevention
Tamper detection leads to erasure of data (keys and sensitive information)
Proprietary key management system
Wide voltage range
Remote Key Loading (RKL)
Remote Firmware Update (RFU)
Algorithms
| PINBLOCK standards: IBM3624, ANSIX9.8, ISO9564-0/1/3, DIEBOLD, DIEBOLDCO, ECI2, ECI3, VISA, VISA3, IBM-OFFSET, VISA-OFFSET
MAC standards: ANSI X9.9, ANSI X9.19, ISO13491
Supports DES, Triple DES, RSA, SHA-1, SHA-256
Supports XFS 2.0/3.03/3.10 |
Approval
| PCI 2.x security
CE
ESD level 4 (Air Discharge: ±15KV, Contact Discharge: ±8KV) |
| Keys | 12 numeric keys and 4 function keys
8 function keys expandable |
| Key's lifetime | 2,000,000 cycles per key |
| Force on keystroke | 2N~3.5N |
| Force on function keys | 3N~6N |
| Key's travel | 0.4mm |
| Data storage life | 5 years |
| External power supply voltage | 10V~35V |
| USB voltage | 4.75V~5.25V |
Environmental
| Protection: IP65 (front panel)
Operating temperature range: -25~+65
Storage temperature range: -35~+75
Operating humidity ≤95% r.h (non-condensing) |
Interface
| RS232: W03AAC--RJ45 W03BAC--DB9-M
USB: TYPE B SOCKET |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
Business Type: Manufacturer/Factory
Management System Certification: ISO 9001,HACCP
International Commercial Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, EXW
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 21~50 People
Export Year: 2008-03-05
Export Percentage: 71%~90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Rm. 306, 3/F, Bldg. 6, Changyuan New Material Port, No. 2 Gaoxin C. Ave. 1st, Nanshan Dist, Shenzhen, Guangdong, China
R&D Capacity: OEM, ODM, Own Brand(HCCTG)
No. of R&D Staff: 5-10 People
No. of Production Lines: 6
Annual Output Value: US$10 Million - US$50 Million
