Application

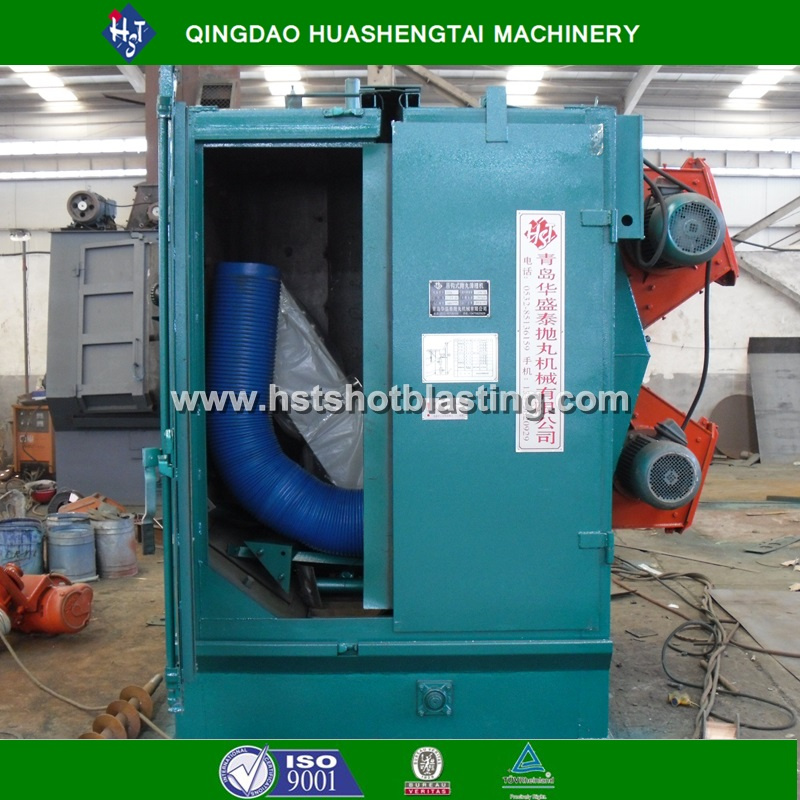

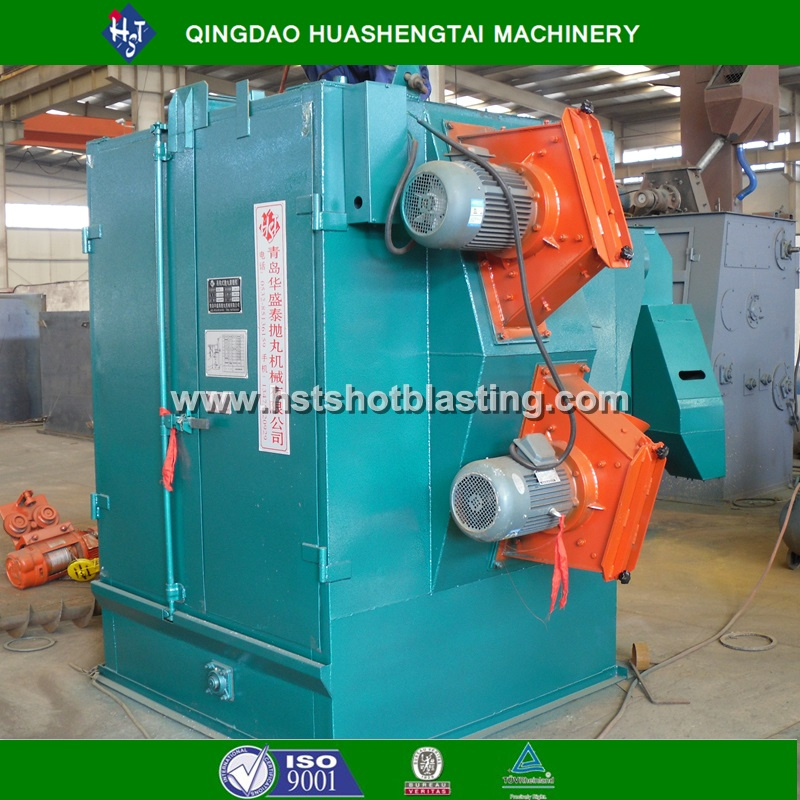

HQ37 Series Hook type shot blast machine is used for surface cleaning and strengthening of steel structural part, castings, aluminum alloy parts and other spare parts. The machine is consists of shot blasting room, elevator, separator, screw conveyor, two pieces of impeller head assembles, abrasive control system, hook track, hook system, auto rotation device, foundation, dust collecting system and electrical control system, etc. the highest bonding character of any surface preparation method.
Features
1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with no pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Mediumsized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
5. Can be equipped as a part of a processing line.
Model | HQ376 | HQ378 | HQ3710 | HQ3720 | HQ3730 | HQ3750 | HQ37100 |
Max weight of cleaning (kg) | 600 | 1000 | 1000 | 2000 | 3000 | 5000 | 10000 |
Max. dimensions of work piece(mm) | 800*1000 | 1000*1500 | 1200*1600 | 1400*2300 | 1600*2200 | 1800*2500 | 3000*3000 |
Shot blasting quantity (kg/min) | 2*135 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 4*250 |
Lifting capacity (t/h) | 15 | 22 | 30 | 45 | 45 | 60 | 75 |
Separation capacity (t/h) | 15 | 22 | 30 | 45 | 45 | 60 | 75 |
Total air volume (kg/min) | 5000 | 8000 | 9000 | 15000 | 15000 | 18000 | 20000 |
Total power (kw) | 19 | 32.5 | 36.55 | 61.27 | 64.4 | 78.4 | 81.5 |
Notice : 1. Above is the parameter of our standard machine ,please carefully refer to this chart , then choose the machine that very suitable for you and inform us.
2. If you have little knowledge about this, also let me know with your requirements. Our team will recommend the right machine for you and offer you more details.
Our company (QINGDAO HUASHENGTAI SHOT BLASTING MACHINERY CO,LTD. ) is an industrialization entity with scientific research, development, production and operating integration. We have engaged in casting machinery for more than 20 years, thereby gain plentiful technical essence in shot blasting machine designing and manufacturing . All of our machine are developed with mature performance in use. As the professional manufacturer of casting machinery industry, our technology, quality and automation level enjoys top ranking among the users' of our machine worldwide.
Prod Model: | HQ |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Overall Size: | According to Requirement |
