Heatsink Compound Thermal Grease for CPU / LED

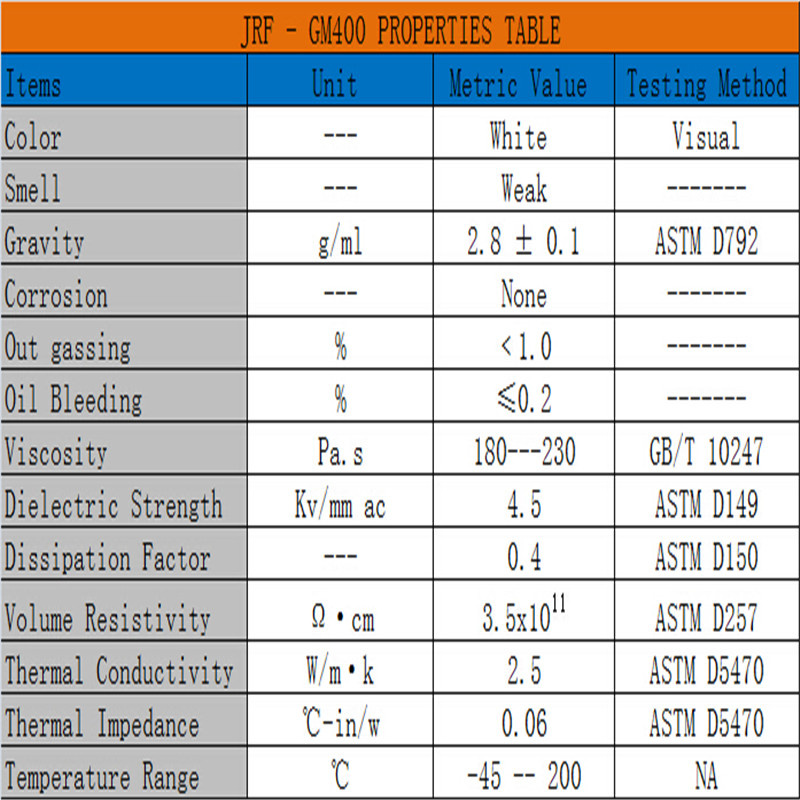

Product Specifications
| Prod Model: |
GM400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gravity: |
2.8+-0.1g/Ml |
| Viscosity: |
180---230 PA.S |
| Thermal Conductivity: |
2.5 W/M.K |
| Dielectric Strength: |
4.5kv/Mm AC |
| Type: |
Liquid |
| Chemistry: |
Organic Insulation |
| Material: |
Rubber |
| Maximum Voltage: |
<10KV |
| Brand: |
Jrft |
| Application: |
Electronic Products |
| Thermal Rating: |
-45~200 |
Product Description
JRF-GM400 Thermal Grease
Specifications
Thermal conductive silicone grease
1.excellent heat conductivity
2.good electrical insulation
3.wide working temperature
Features:
1.High thermal conductivity, insulation and low temperature performance, high stability and good use.
2.Water resistance, not curing, metal material on contact without corrosion (copper, aluminum, steel)
3.Volatilization loss, low melting, not dry, not good material adaptability and large temperature range of use ( -50-250ºC )
4.Non-toxic, tasteless, no corrosion, and chemical and physical properties of stability
Applications:
1.Industrial electronic power amplifier tubes and fins between the contact surface: such as TV, DVD, CPU and power amplifier tube, playing the role of heat conduction;
2.Microwave communications, microwave transmission equipment and dedicated power supply, regulated power supply and other microwave devices surface coating and overall potting;
3.Electronic components, such as transistors, heat transfer, thermal sensor, ballast computer fan power transistor (plastic pipe), diode and base material (aluminum, copper) contact gap heat transfer medium, rectifier and electrical thermal insulation materials;
4.High voltage corona, eliminating non combustible coatings for high voltage fly back transformer ,televisions and similar applications of the connection;
5.Heating various electronic, electrical equipment gaps in between the body and the heating facilities, improving the radiating effect of filling . JRF-GM400 is a high thermal conductivity thermal grease, low oil yield, low volatility, high reliability, thinner thickness. It can fully wettability transfer interface of heat, eliminate the air gap between the formation of interface, forming effectively heat transfer path, which can quickly will transfer to the radiating heat device , and thermal conduction excellent effect .
