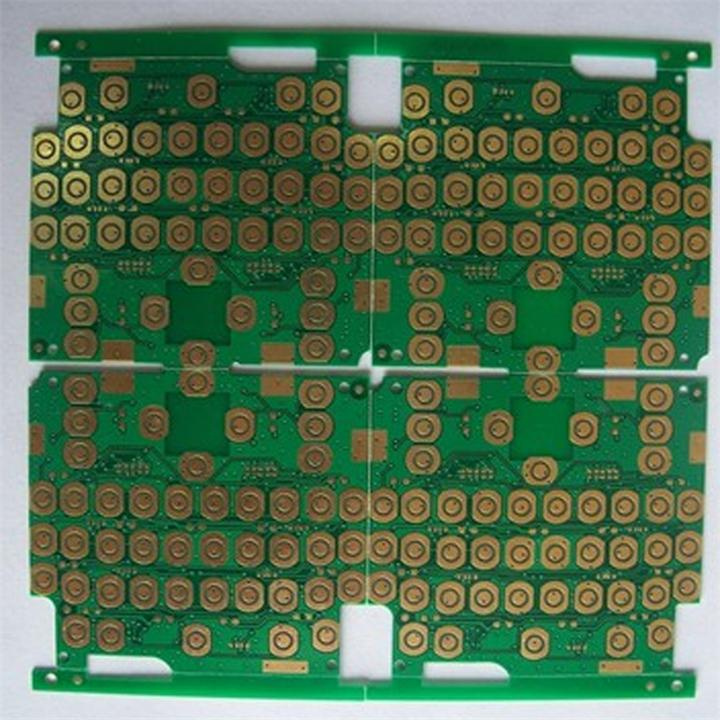

Heavy Copper Core Printed Circuit Boards (PCB)
Product Specifications
| Prod Model: |
FL201330 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Fr4 |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
1oz |
| Surface Treatment: |
Immersion Gold |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Product Description
Double Sided Printed Circuit Board Heavy Copper PCB 3oz FR-4 With HASL LF Applied In Power Supplies
![]()
Commodity Introduction This is a type of FR-4 PCB for the application of Power Supplies. It's a 2 layer board at 1.6mm thick.The base laminate is from ITEQ, Solder mask and silkscreen from Kuangshun and Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
![]()
Parameters & Data Sheet| PCB SIZE | 76 x 79mm=1PCS | | BOARD TYPE | | | Number of Layers | Double sided PCB, 2 Layer PCB | | Surface Mount Components | NO | | Through Hole Components | YES | | LAYER STACKUP | copper ------- 105um(3oz)+plate TOP layer | | FR-4 1.5mm | | copper ------- 105um(3oz)+plate BOT Layer | | TECHNOLOGY | | | Minimum Trace and Space: | 15mil/15mil | | Minimum / Maximum Holes: | 0.8/9.0mm | | Number of Different Holes: | 8 | | Number of Drill Holes: | 295 | | Number of Milled Slots: | 0 | | Number of Internal Cutouts: | 0 | | Impedance Control | no | | BOARD MATERIAL | | | Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 | | Final foil external: | 3oz | | Final foil internal: | 0oz | | Final height of PCB: | 1.6mm ±0.16 | | PLATING AND COATING | | | Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54µm | | Solder Mask Apply To: | Top and Bottom, 12micron Minimum | | Solder Mask Color: | Blue, KSM-6189BL04, Kuangshun supplied | | Solder Mask Type: | LPSM | | CONTOUR/CUTTING | Routing | | MARKING | | | Side of Component Legend | TOP | | Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. | | Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA | | VIA | Plated Through Hole(PTH) | | FLAMIBILITY RATING | UL 94-V0 Approval MIN. | | DIMENSION TOLERANCE | | | Outline dimension: | 0.0059" (0.15mm) | | Board plating: | 0.0030" (0.076mm) | | Drill tolerance: | 0.002" (0.05mm) | | TEST | 100% Electrical Test prior shipment | | APPLICATION: | Power Supplies
Solar Battery Charger
12V Power Supply
Uninterruptible Power Supply
Computer Power Supply
Voltage Converter | | TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc | | SERVICE AREA | Worldwide, Globally. |
| |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
