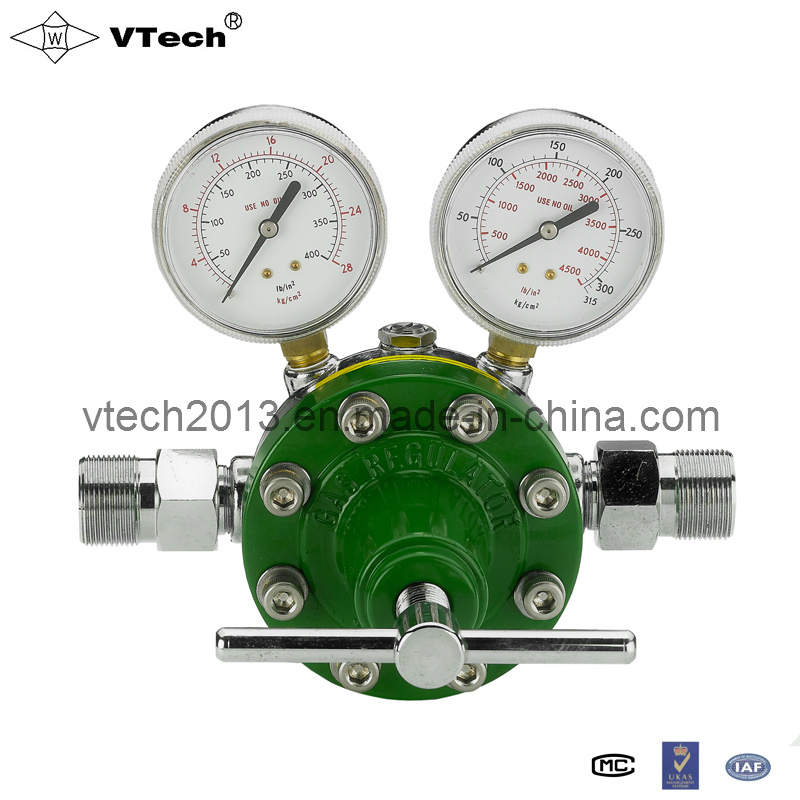

Product Specifications
| Prod Model: |
SR-430 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Pressure Gauge: |
4500ib/in² , 315kg/Cm² |
| Low Pressure Gauge: |
400ib/in² , 28kg/Cm² |
| Inlet Pressure(P1): |
Below 15mpa |
| Inlet /Outlet Connection: |
W22-14 Rh, W29-16 Rh |
| Weight: |
3.75kg |
| Package: |
6PCS/CTN |
| Display: |
Pointer |
| Function: |
Electric Signal-controlled |
| Accuracy: |
0.1 |
| Indicating Pressure Reference: |
General Pressure Gauge |
| Application: |
Industrial |
| Structure: |
Spring Pressure Gauge |
| Connection Type: |
Radial Direction |
| Measuring Range: |
Medium-pressure Gauge |
Product Description
1. Forged brass body & bonnet for maximum strength.
2. Sintered metal inlet filter to trap impurities.
3. No soldered joints, for easy maintenance.
4. Smooth adjustment, with high precision.
5. Inlet and outlet connection will be supplied to suit your requirement.
[The main material]
Regulator body C3771BE
Regulator cover C3771BE
Seat PTFE
Diaphragm NBR
Note:
1. Always specify model number and gas when ordering.
2. Inlet and outlet connection will be supplied to suit your requirement.
3. The safety relief valve is available if request.
VTech--------To meet stronger!
|
Model |
Gauge kg/cm2 |
For gas |
Inlet pressure kgf/cm2 |
Adjust pressure kgf/cm2 |
Inlet connection |
Weight g |
|
|
First |
Secondary |
|
|
|
|
|
|
SR-430 |
315 |
28 |
Oxygen
Inert gases |
150 |
0~12 |
W22-14 RH
W29-16 RH |
430 (10 kg/cm2 Air) |
