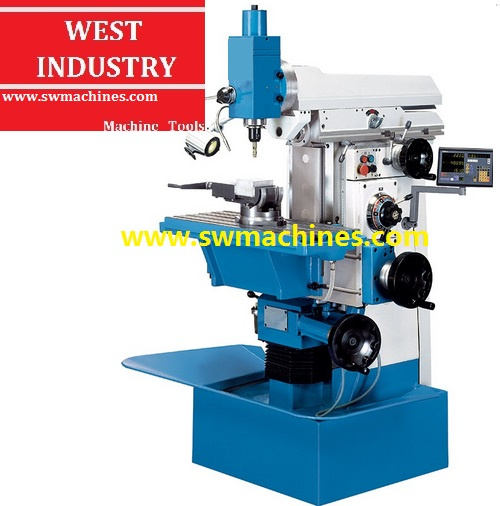

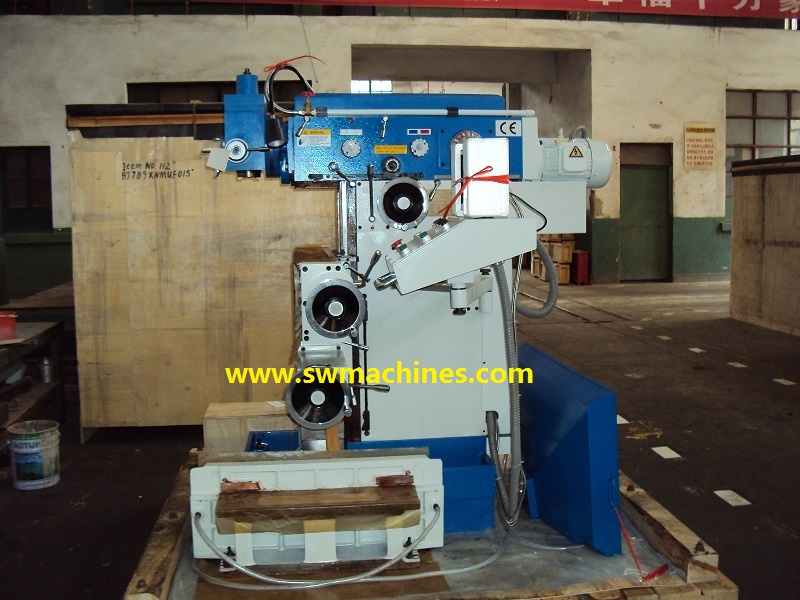

Heavy-Duty Universal Tool Milling Machine with CE
Product Specifications
| Prod Model: |
M26K/32K/40K (WF 4.2) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Travel On X/Y/Z:400/500/400: |
Taper Hole: ISO40 |
| Type: |
Tool Milling Machine |
| Object: |
Tool |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
Product Description
Product Name: Tool Milling Machine MK26/M32K/40K Tool
Milling Machine WF 4.2;· Milling machine for tool construction;· Automatic feeds on all 3 axes;· Outer arbor supporting for horizontal milling;· Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;· Steamlined arrangement of operating controls on the right side;· Vertical head quill for drilling, with hand lever feed;· The milling machine can be enquipped with Digital Position Indicator. · This machine is a versatile machine of better universality, extensively used for milling flat. Inclined surfaces and slots on metal parts and is suitable for machining tolls, jigs fixtures and moulds as well as machine parts of complicated shapes in instruments and meters manufacturing plants and machinery building works.With the employment of attachment, such as diving head of rotary table, etc. The machine can also be used for cutting gear. Curved plants. Cams and other complicate-shaped machine parts. When equipped with digital display system is may be further for boring coordinated holes. Standard Accessories:· Long cutter arbor· Short cutter arbor· Milling-driving chuck· Square socket wrench· Spanner for short cutter arbor· Square socket wrench · Spanner for short cutter arbor· Double end spanner Optional Accessories:· Universal angular table· Rotary table· Machine vice· Slotting head· Dividing head· DRO Main Technical Data of the Milling Machine: | Models | M26BK and M26CK |
| Worktable area | 280x700mm |
| Distance between axis of horizontal spindle to table | First installing position | 35---385mm |
| Second installing position | 42---392mm |
| Third installing position | 132---482mm |
| Distance between vertical spindle nose to horizontal spindle axis | 95mm |
| Distance between horizontal spindle nose to vertical spindle axis | 131mm |
| Transverse travel of horizontal spindle | 200mm |
| Vertical travel of vertical spindle quill | 80mm |
| Range of horizontal spindle speeds(8 steps) | 110---1230rmp |
| Range of vertical spindle speeds(8 steps) | 150---1660rmp |
| Spindle hole taper | /Morse No.4(B)ISO40© |
| Swivel angle of vertical spindle axis | ±45° |
| Longitudinal/vertical travel of table | 350mm |
| Feeds of table in longitudinal, and vertical directions and | 25---285mm/min |
| horizontal spindle seat in transverse direction |
| Rapid travel of table in longitudinal and vertical directions | 1000mm/min |
| Main motor | 3kw |
| Coolant pump motor | 0.04kw |
| Overall dimension | 1450x1450x1650mm |
| Net/gross weight | B-1180/2100KG, C-1410/2200KG |
| Overall packing dimension | 1700x1270x1980mm |
| Specification |
| M32K | M40K |
| Working table | Horizontal working table(WxL) | 750x320mm | 400x800mm |
| Vertical working table(WxL) | 850x250mm | 250x950mm |
| Travel on longitudinal/transverse/vertical | 400/300/400mm | 500/350/400mm |
| universal worktable | Horizontalswivel | ±360° | ±360° |
| Inclination on front and rear | ±30° | ±30° |
| Inclination on left and right | ±30° | ±30° |
| Vertical spindle head | Vertical travel of quill | 60mm | 60mm |
| Axia inclination on left and right | ±90° | ±90° |
| Horizontal spindle | Taper hole | ISO40 | ISO40 |
| The height from axis to ground | 1330mm | 1330mm |
| Min.distance between axis and surface of horizontal table | 40mm | 35mm |
| Vertical spindle | Taper hole | ISO40 | ISO40 |
| Min.distance between nose and surface of horizontal table | 10mm | 5mm |
| Horizontal and vertical spindle speed: steps/range | 18 steps 40-2000rpm | 18 steps 40-2000rpm |
| Longitudinal,transverse and vertical feeds:steps/range | 18 steps/10-500 min | 18 steps/10-500 min |
| Axial feed of quill of vertical spindle: steps/range | 3 steps/0.03-0.12mm/rev | 3 steps/0.03-0.12mm/rev |
| Power of main motor/feed motor | 3kw/1.5kw | 3kw/1.5kw |
| Max.table load/max.load of cutter | 300kg | 400/500kg |
| Overall dimensions(LxHxH) Net weight | 181x122x171cm/2200kg | 182x164x171cm/2300kg |
| Packing dimensions(LxWxH) | 200x164x210cm/3000kg | 205x176x208cm/3300kg |
