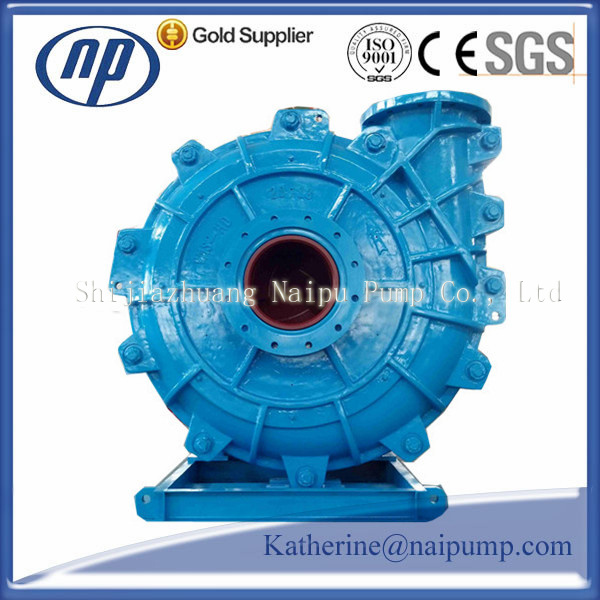

Heavy Machine Mining Solid Handling Ash Slurry Pumps (AH)
| Price: |
US $ 1800set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Products AH slurry pumps are suitable for pumping slurry with hard particles and in high density in industrial sectors. They can also be applied multi-staged in series. AH pumps are those of cantilever, horizontal and centrifugal ones, whose shafts can be sealed by packing seals or by centrifugal type seals.The positions of the pump outlet can be positioned at an interval of 45°according to different requirements,so eight different angles can be applied by rotation in installation.
Structural
Highly wear-resistant high chrome alloy
Packing gland seals(Pressure-reducing metal/rubber gland seals/Mechanical seals)

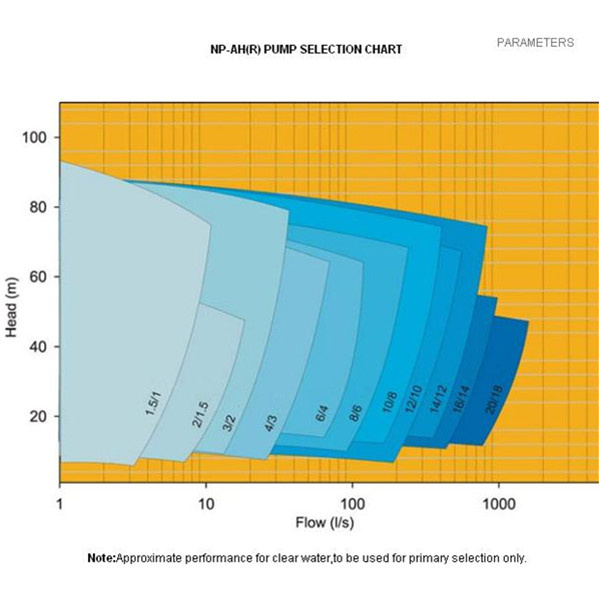

Size Range

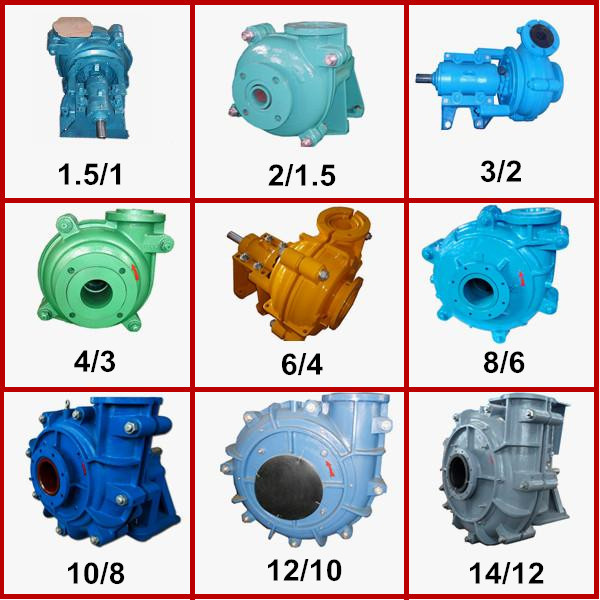

· Discharge Diameters - 25 to 500 mm (1" to 20")
· Flows - to 5400 m3/h
· Total Head up to 97 m
Typical Applications
· High density slurry transfer;
· Thickener underflow recirculation;
· Reagent dosing;
· Froth flotation;
· Cyanide processing etc.
· Mill discharge;
· Cyclone feed;
· Tailings
Major Advantages
· Long wear life
· High efficiency
· Excellent suction performance
· Ease of maintenance
· Large sphere passage

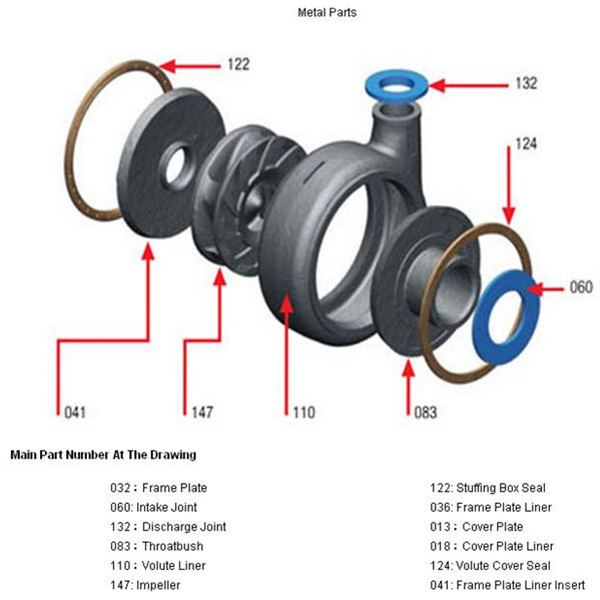

Interchangeable rubber and metal design allow best material choice for any application
Naipuis more than a slurry pump manufacturer. We help customers select the type, size
and operating speed of pumps that will perform at the Lowest Cost of Ownership.
| Prod Model: |
AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Acceptable |
| Certificate: |
CE, SGS, ISO |
| Discharge Size: |
1-20" |
| Flow: |
12.6-5400 M3/H |
| Head: |
6-68 M |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Pump Casing Combined: |
Double Casing |
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
