Heavy Model Paper and Paperboard Cutter Machine (MJSD-1)
Product Specifications
| Prod Model: |
MJSD-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width: |
1700mm, 2000mm |
| Cutting Length: |
200-2000mm |
| Cutting Times: |
20-120times/Min |
| Power: |
4kw |
| Working Speed: |
0-70m/Min |
| Type: |
Carton Packaging Machinery |
| Automatic Grade: |
Automatic |
Product Description

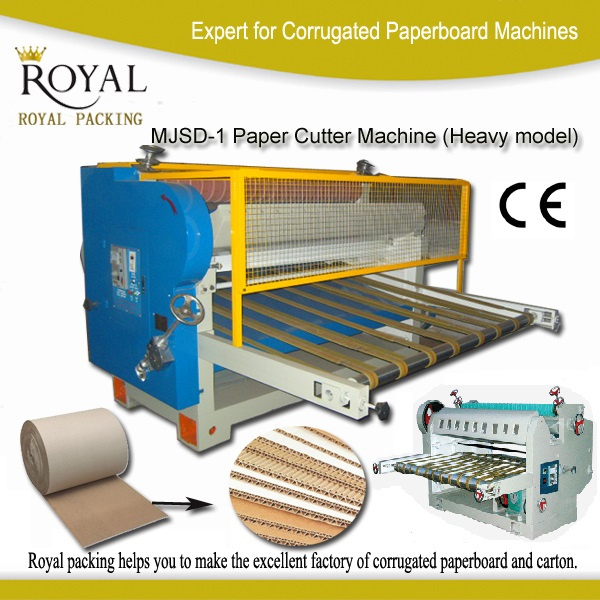

MJSD-1 Paper Cutter Machine (Heavy model)
Introduction
MJSD-1 Series Rotary Die-Cutting Machine (Heavy model) is used for the transverse and vertical cutting of the paperboard as customer's requirement. The machine use chain model drive, have big turning moment. The machine has reasonable structure, the cutting precision is high and adjust is fast.
1. The machine is electromagnetism speed adjust, continuous feeding, mechanical control, it can work together with the single facer machine as single facer line for producing the 2-layer corrugated paperboard.
2. The knives quantity can be required by the customer.
3. Transversely cut 400-2400mm.
`
Technological Parameters
| Model | MJSD-1-1700 | MJSD-1-2000 |
| Max. Cutting width. | 1700mm | 2000mm |
| Cutting length | 200-2000mm | 200-2000mm |
| Cutting times | 20-120times/min | 20-120times/min |
| Power | 4kw | 4kw |
| Working Speed | 0-70m/min | 0-70m/min |
| Machine Size | 2850*1450*1500mm | 3350*1450*1500mm |
| Weight | About 1500kg | About 1700kg |
ROYAL is mainly engaged in the R and D, Design, Produce and Trade of Corrugated Paperboard production machinery and Carton Machinery, Pharmaceutical Equipment, API & Intermediate, Custom Synthesis. We are located in Hangzhou city, Zhejiang Province. Neighboring Shanghai port, Ningbo port, Hangzhou Xiaoshan Int'l Airport and Shanghai Pudong Int'l Airport, our office is 700m from the biggest fast train station in Asia (Hangzhou Dong Station), the transportation and environment are excellent!
We are mainly focus on:
1. Corrugated paperboard machinery, Packing Machinery, Single Facer line, Flexo printing machine, folder gluer, Stitcher, Laminating machine, Rotary Die-cutting machine, Flat Die-cutting machine, Slitting and rewinding machine, Paperboard sheeter, A4 paper production line, and all related spare parts.
2. Pharmaceutical Machinery: Distilled water machine, Reverse Osmosis, Frame filter press, Pure steam Generator, MVR, CIP system, Mixing tank, Mixer machine, Sterilizer, Centrifuge, MEE and so on.
3. API, Pharmaceutical Intermediate, Custom synthesis service.
4. Export agent ---- Specially we have Kunlun bank account for Iran business.
We have two own factory in Hebei Province and Ningbo city, China. We have high quality employee team, we have special engineers, and special operators for export work of machines. We are now cooperated with many special factories who produce good quality machines to fulfill our products library. With good quality products and high efficiency service, and the competitive prices, our products are welcomed by many users. ROYAL is happy to offer the technological service for you all the time.
ROYAL has Import and Export Office in Hangzhou and have established well market channels both domestically and overseas. And we have our Sales branch in Tehran city, Iran, In Amman city, Jordan. ROYAL products are exported to many countries such as USA, Germany, Mexico, Korea, Dominica, Italy, Austrilia, Russia, Iran, Jordan, Sudan, Egypt, Samoa, Vietnam, India, Turkey and so on. Our products are popular in the world market, and enjoy a good reputation from our customers. Based on the Technology, Developed by Innovation, joining hands with friends, ROYAL highly welcomes friends from all over the world to cooperate with us, and share our development and progress together.
ROYAL ---- Your Best Partner In China!
