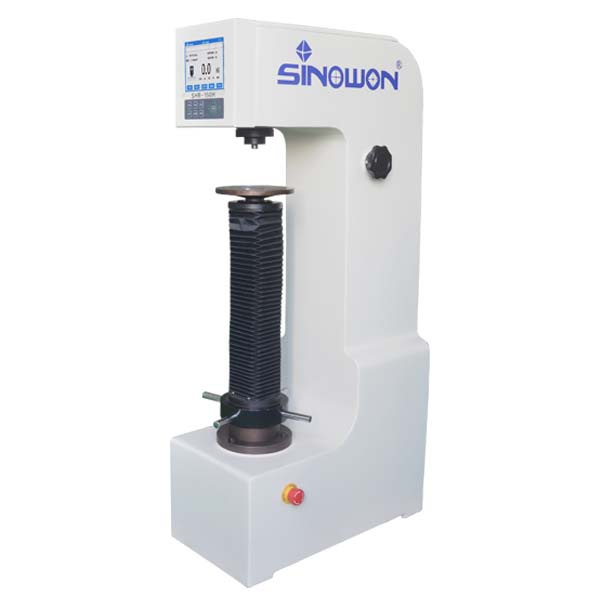

Heighten Color Touch Screen Digital Hardness Tester Rockwell Machine
Product Specifications
| Prod Model: |
Vexus SHR-150H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rockwell Scales: |
Hra,Hrb,HRC,Hrd,Hre,Hrf,Hrg,Hrh,Hrk |
| Preliminary Test Force: |
10kgf(98.07n)Permitted Error: ±2.0% |
| Test Force: |
60kgf(588.4n),100kgf(980.7n),150kgf(1471n) |
| Permitted Error: |
±1.0% |
| Dwell Time: |
Adjustable 1-60s |
| Hardness Indication: |
5.2" Touch Screen, Resolution:640X480 |
| Resolution: |
0.1hr |
| Loading Control: |
Auto Loading /Dwell/Unloading |
| Conversion Standards: |
ASTM,DIN |
| Packing Weight: |
150kg |
| Type: |
Rockwell Hardness Tester |
| Measuring Range: |
HRC |
| Application: |
Ceramics and Glass |
| Standard: |
GB/T |
Product Description
Vexus SHR-150H
1 Half automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.
2 Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
3 Motorized control loading, dwell and unloading, eliminates error by manual operation.
4 Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
5 Auto hardness conversion to others scales, no need to check table and improve working efficiency.
6 Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
7 Save 2000 single testing results and 1000 group results for reviewing and analysis
8 Optional blue tooth mini printer is available.
Application:
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened
Steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Sinowon was founded in year 2005, we devote ourselves to research, develop, produce and market hardness testers and related accessories. We have gathered a team of excellent and innovative researching specialists, skilled production staffs, responsible and professional marketing team in our company now.
We bend ourselves to create the value for the customers and to create the wealth for the society forever. We always take "Satisfaction, Innovation, Norm, Obligation, Worth, Open, and Nimble" as our business philosophy, we focus on the customers' need as our starting point, and we keep on improving the management ability and strengthening the power of researching specialists to supply the high quality products and services for the customers. Since it is our goal to make "SINOWON" as a worldwide well-known and valuable brand in the metrology fields.
| Specifications: |
| Product Name | Digital Rockwell Hardness Tester |
| Model | Vexus SHR-150H |
| Code# | 811-151 |
| Rockwell Scales | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR |
| Preliminary Test Force | 10Kgf(98.07N) |
| Test Force | 60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N) |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | Digital LCD Display |
| Resolution | 0.1HR |
| Loading Control | Automatic |
| Data Output | RS232/Printer |
| Memory | Max 500 items of test results stored automatically |
| Hardness Conversion | HB, HV, HK,etc |
| Max. Height Of Specimen | 400mm |
| Instrument Throat | 200mm |
| Power supply | AC 220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 550 x225 x720mm |
| Packing Dimension | 630 x440 x960mm |
| Gross/Net Weight | 160Kg/130Kg |
| Execution Standard | ISO 6508 , ASTM E18 , JIS Z2245 , GB/T230 |
| Standard Delivery: |
| Standard Delivery | Code# | Standard Delivery | Code# |
| Instrument Main Body | 811-151 | Ø1.588mm Steel Ball | 811-421 |
| Hardness Block (57-70) HRC | 811-641C | Cone Diamond Indenter | 811-401 |
| Hardness Block (20-33) HRC | 811-611C | Ø 150mm Flat anvil | 811-541 |
| Hardness Block (85-100) HRB | 811-641B | Ø 40mm V-shape Anvil | 811-511 |
| Ø1.588mm Ball Indenter | 811-411 | Weight A | 811-711 |
| Accessories Box | 811-901 | Weight B | 811-721 |
| Anti-dust Cover | 811-911 | Weight C | 811-731 |
| Qualified Certificate | Vexus SHR-150H | Instrument Manual | Vexus SHR-150H |
| Optional Accessories: |
| Optional Accessories | Code# | Optional Accessories | Code# |
| 1/8" Steel Ball Indenter | 811-431 | 1/8" Steel Ball | 811-441 |
| 1/4" Steel Ball Indenter | 811-451 | 1/4" Steel Ball | 811-461 |
| 1/ 2" Steel Ball Indenter | 811-471 | 1/2" Steel Ball | 811-481 |
| 100mm Flat Anvil | 811-531 | Small Flat Anvil | 811-501 |
